UHF RFID Sled

More Efficiency. More Visibility.

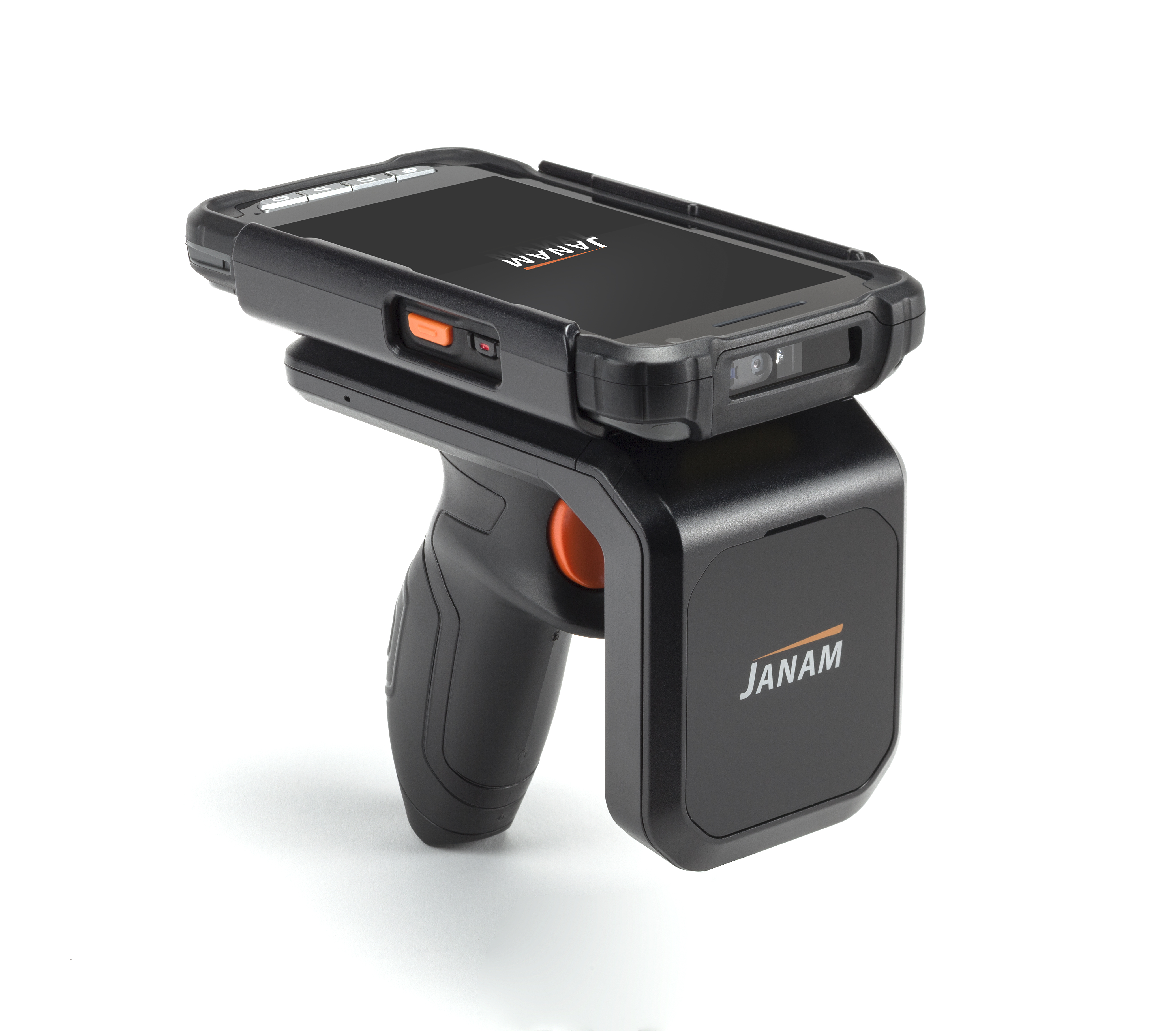

Janam's RFID sled for its XT2 series of rugged touch computers is the lightest UHF RFID sled in its class and is ergonomically designed for comfortable, all-day, everyday use in the enterprise.

Purpose-built for use in the most demanding retail, logistics, manufacturing, warehouse and healthcare environments, Janam’s UHF RFID sled easily snaps on the XT2 and XT2+ to provide powerful UHF RFID technology in the palm of the hand. It enables tag writing and locationing capabilities and allows Janam’s XT2 series to easily read EPC Global Gen2 ISO 18000-6C tags from more than 22 feet away.

With its own dedicated 3350mAh battery, the UHF RFID sled has a larger battery capacity than competing products to ensure full shift power and eliminate downtime.



Specifications

PHYSICAL



Dimensions

5.4” L x 2.7” W x 4.5” H / 139mm L x 70mm W x 115.8mm H

Weight

11.9oz / 338g including battery

 Power  3350mAh 3.6V rechargeable Li-ion battery

ENVIRONMENTAL



Operating Temperature

14º to 122º F / -10º to 50º C

Storage Temperature

-13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Alerts

LED indicators

Connectors

Type C 5V/2A

LED Indicators

Multi-color

RFID Performance



Standard Supported

EPC Class 1 Gen 2

RFID Engine Impinj Indy R2000
Read Rate More than 700 tags/sec

Read Range US model: 22.5ft / 6.86m
EU model: 22.3ft / 6.82m

SAFETY/REGULATORY



EMI/EMC

EN 301 489-1; EN 301 489-3

Electrical Safety

EN 60950-1

RF Exposure

EU: EN 50364; EN 62369-1; EN 50566; EN 62311; US: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C

                                           Specifications Subject to Change.
