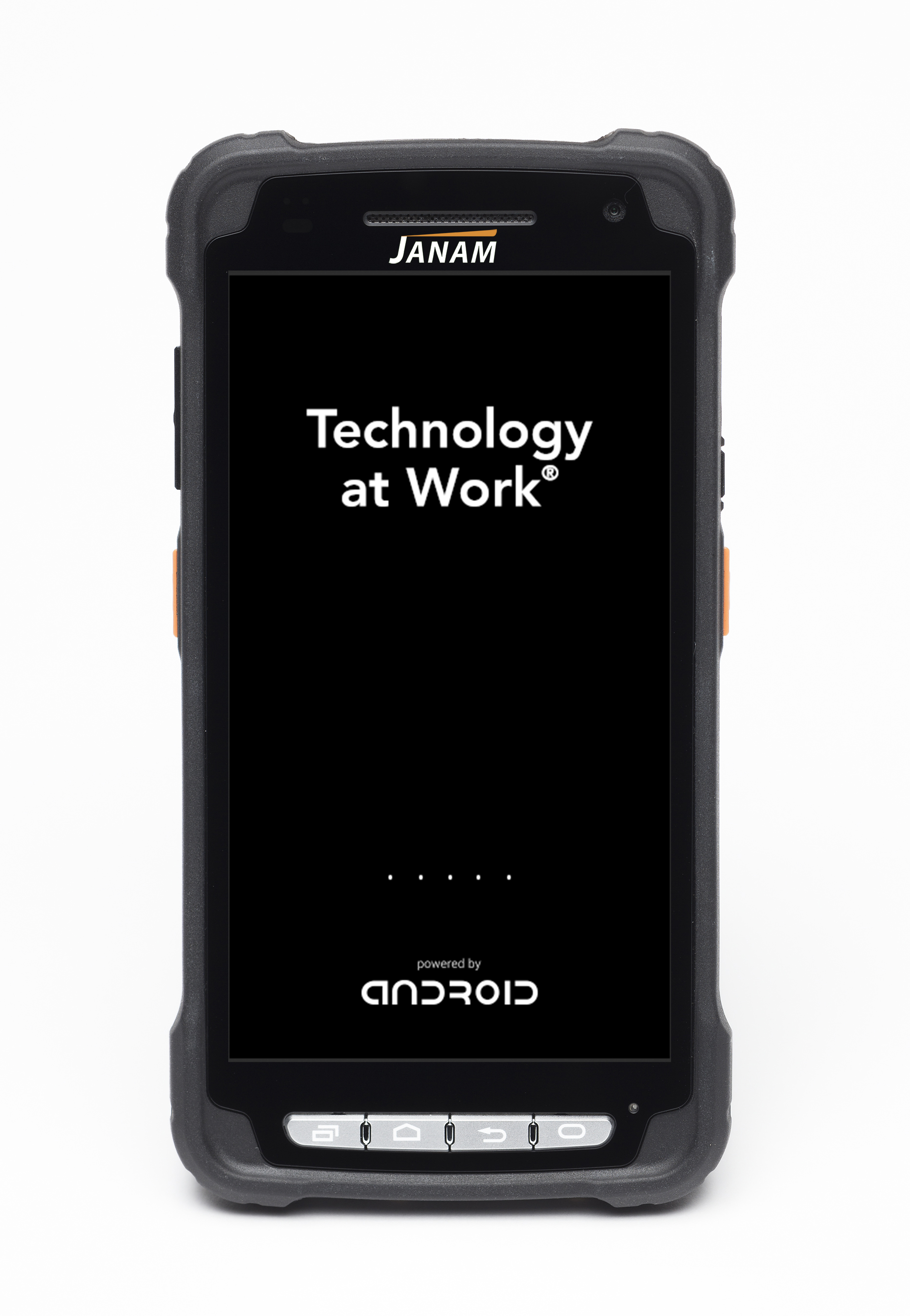

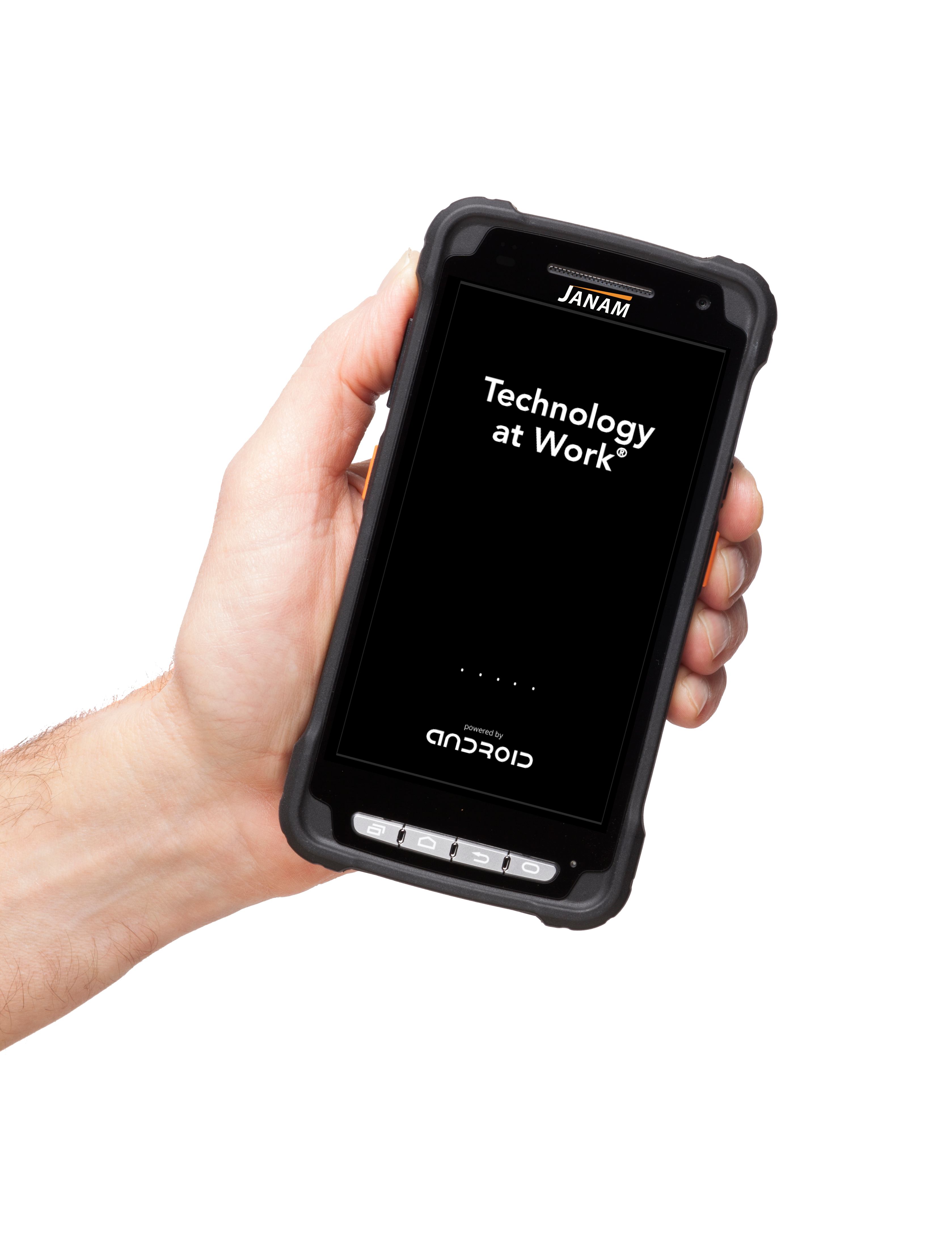

XT2+

Ultra-Rugged. Ultra-Compact.

Productivity and resource utilization are critical to the success of any mobile workforce. Janam’s XT2/XT2+ rugged touch computer enables mobile employees to work smarter and more efficiently – ultimately improving operating results and increasing customer satisfaction.

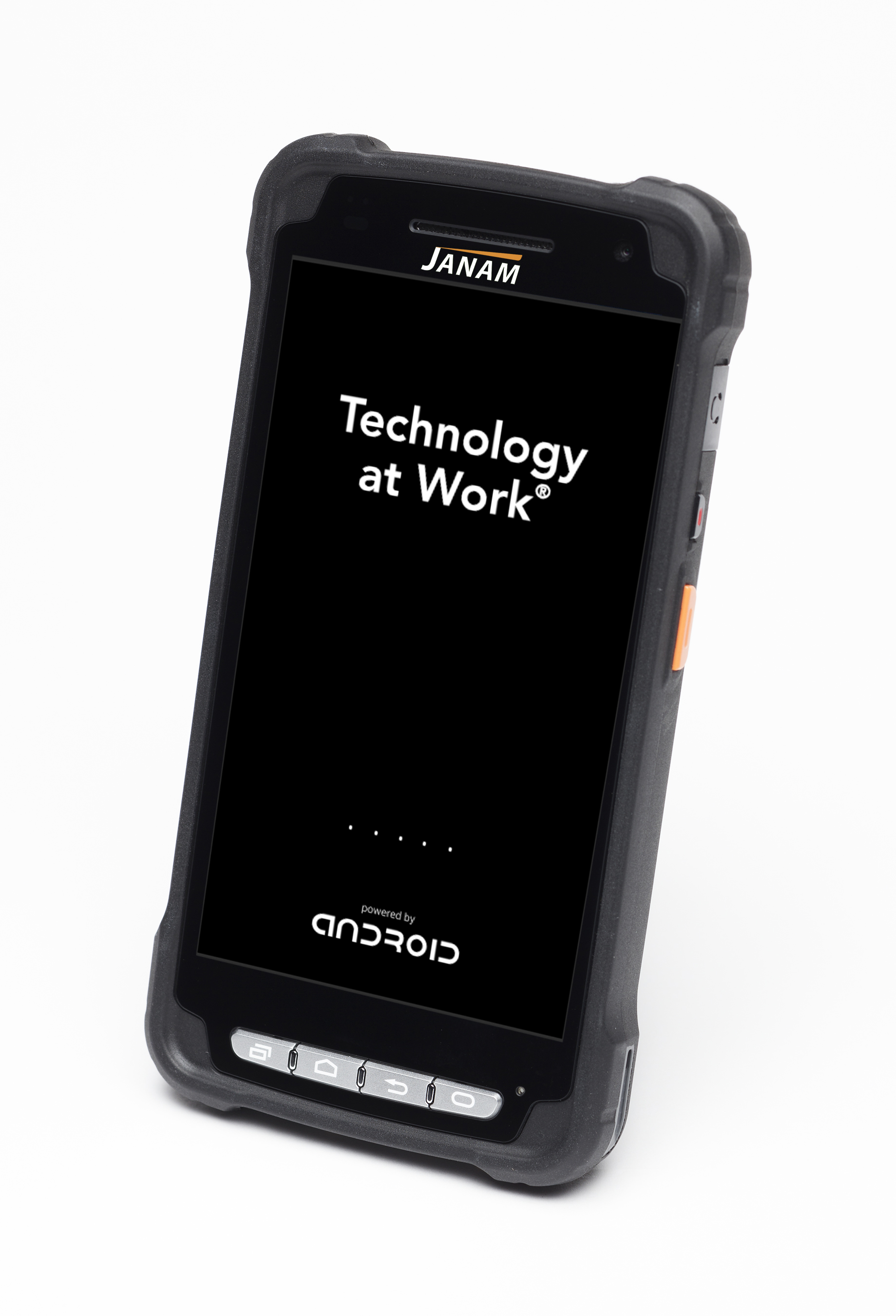

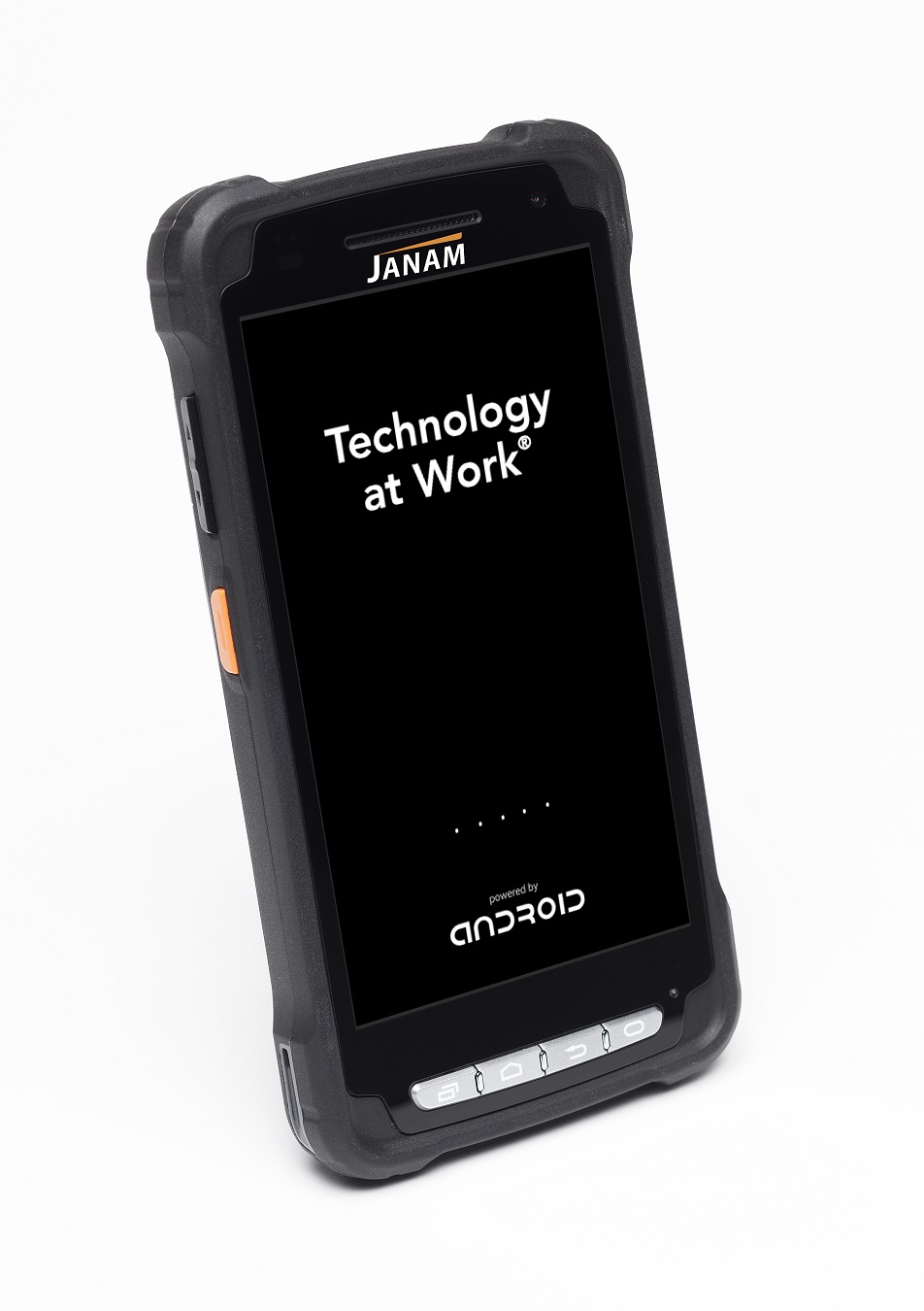

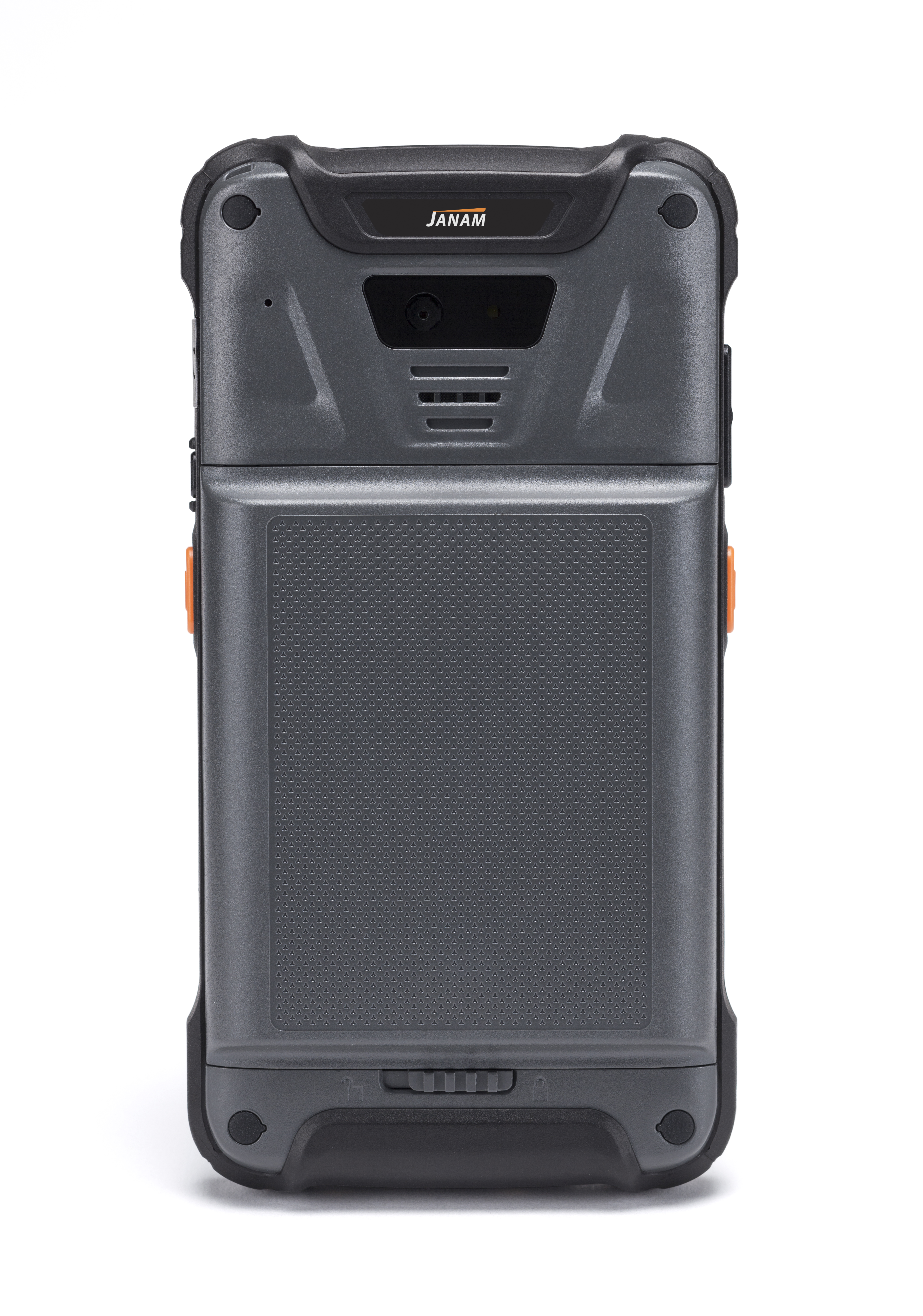

Weighing only 10 ounces, the XT2/XT2+ is smaller, lighter, faster, and better than other rugged mobile computers in its class and equipped with a brilliant 5-inch color display with Corning® Gorilla® Glass 3. With both Android and Windows 10 IoT Mobile Enterprise versions, XT2/XT2+ customers now have access to two of the industry’s most powerful operating systems in the same sleek, rugged and lightweight form factor. The XT2/XT2+ is also equipped with the latest technological advancements, including 4G LTE wireless connectivity for lightning fast access to voice and data, dual-band Wi-Fi and high-sensitivity GPS.

The XT2 is a purpose-built device designed to foster more collaboration across mobile workforces. High-performance 1D and 2D barcode scanning, as well as RFID and NFC reading capabilities, ensure organizations can address a full spectrum of data capture needs with one device. Integrated 8.0MP/2.0MP front- and rear-facing color auto-focus cameras enable customers to capture high-resolution photos, signatures and more.

The XT2/XT2+ is sealed to IP67 standards against dust and immersion in up to 3 feet of water. It can withstand multiple 5’/1.5m drops to concrete per MIL-STD 810G across a wide temperature range. A standard 2-year warranty provides customers with the level of service they require, at no additional cost.





Specifications

TECHNICAL



Operating System

Android 5 (XT2), Android 6 (XT2+) or Windows 10 IoT Mobile Enterprise (XT2)

Processor

Quad-core Qualcomm MSM8916 CPU @1.2GHz

Memory

1GB/8GB (WLAN) or 2GB/16GB (WWAN)

Expansion

User-accessible microSD card slot with SD and SDHC support

Power

3000mAh rechargeable Li-ion battery (4000mAh optional)

PHYSICAL



Dimensions

6.1” L x 3.2” W x .9” D / 155mm L x 83mm W x 24mm D

Weight

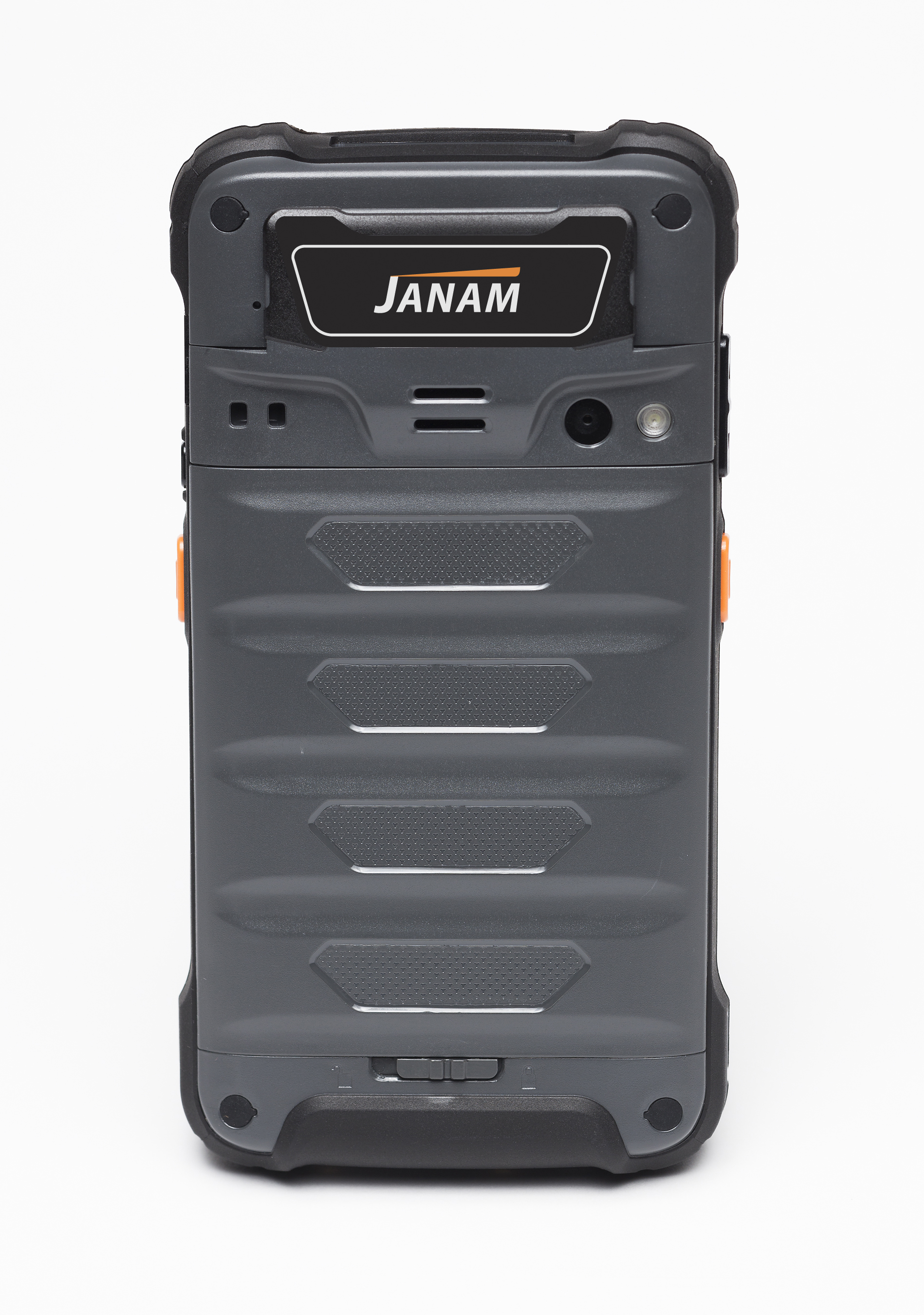

9.8oz / 279g including battery; 10oz / 293g including battery and MSR

Display

5.0” High Definition (720x1280) WXGA with Corning Gorilla Glass 3; exceptionally bright, outdoor viewable; anti-raindrop

Touch Panel

Capacitive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º C

Storage Temperature

-40º to 158º F / -40º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete on all sides across a wide temperature range per MIL-STD 810G

Water & Dust

IP67

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

3.5mm headset jack; speaker; microphone

Alerts

Vibration; LED indicators

Connectors

USB 2.0

LED Indicators

two dual-color LED indicators

External Buttons

4 hard keys (home; menu; back button; user-programmable)

DATA CAPTURE

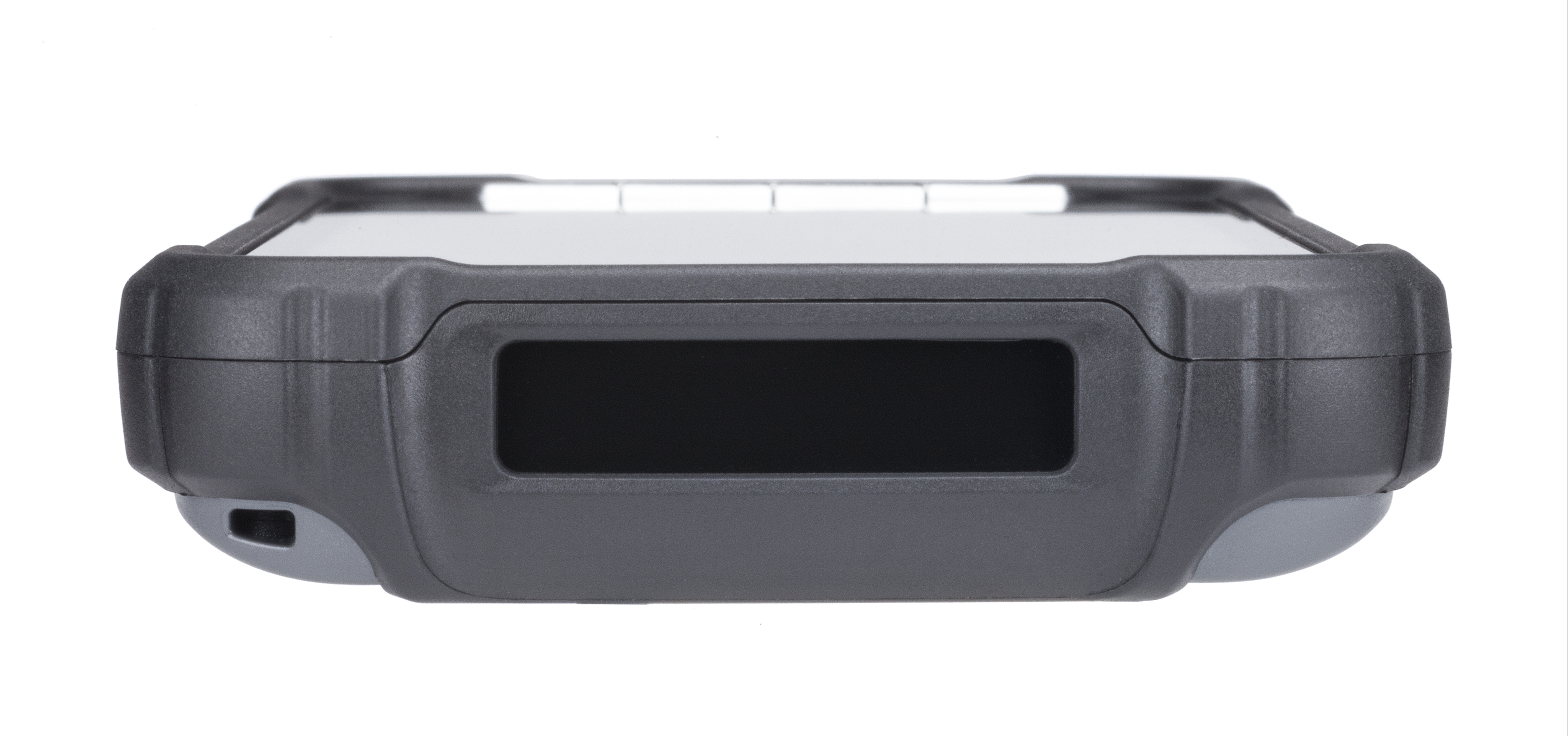

Imager

Zebra SE4710 1D/2D imager (XT2) or Honeywell N6603 1D/2D imager (XT2+)

Magnetic Stripe Reader ANSI/ISO-7813 full track; AES-128 CBC mode; DUKPT support
RFID/NFC Reads ISO14443 Type A; ISO14443 Type B; MIFARE UltraLight; MIFARE UltraLight C; MIFARE 1k/4k/Plus; MIFARE DESFire;MIFARE DESFire EV1; MIFARE DESFire EV2; NFC in the 13.56 MH range


WIRELESS COMMUNICATION



WWAN

EDGE/GPRS/GSM:900/1800
WCDMA: B1/2/5/6/8/19
LTE FDD: B1/2/3/4/5/7/8/17/20
LTE TDD: B40/41

WLAN

Dual-band 802.11a/b/g/n/d/h/i/k/r/v; Cisco certified

Security

Authentication: EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)Encryption: WPA2; WPA (TKIP); WEP

WPAN

Bluetooth v4.0

MOBILE APPURTENANCES



Motion Sensor

Gyroscope; Accelerometer; Ambient light sensor; Proximity sensor

GPS

Qualcomm® IZat™: Gen 8 support for three bands concurrently (GPS, BeiDou and GLONASS or Galileo)

Camera

8.0MP color rear-facing autofocus camera with user-controllable LED flash and 2.0MP front-facing camera

ACCESSORIES

Single-slot cradle kit (Charging; USB)



Four-slot charging cradle kit



USB Syncing/charging cable with locking screws



Charging adapter

Extended battery kit
Holster

SAFETY/REGULATORY



Safety

CSA C22.2 No.60950-1-03; EMC; RF; SAR; LED

Radio

FCC; IC; GCF & PTCRB; CE

Environment

RoHS and WEEE compliant

                                           Specifications Subject to Change.


Accessories

Cradle Kits

  • Single-Slot USB Cradle Kit for XT2

    Single-Slot USB Cradle Kit for XT2

    (CKT-T1-002U)
    Includes AC/DC charger.
  • Four-Slot Charge-Only Cradle Kit

    Four-Slot Charge-Only Cradle Kit

    (CKT-T4-002C)
    Includes AC/DC charger.
  • Vehicle Cradle

    Vehicle Cradle

    (VKT-T1-002H)
    Passive (non-charging) cradle
  • Vehicle Charging Cradle for XT2

    Vehicle Charging Cradle for XT2

    (VKT-T1-002HW)
    For hard-wired installation.
  • XT2 Charging Cradle

    XT2 Charging Cradle

    (VKT-T1-002UC)
    Includes USB and cigarette lighter adapter.

Cables

  • USB Cable

    USB Cable

    (CAB-J-003U)

Batteries & Chargers

  • XT2 Extended Battery

    XT2 Extended Battery

    (BAT-T2-002)
    4000mAh 3.7v
  • XT2 Standard Battery

    XT2 Standard Battery

    (BAT-T1-002)
    3000mAh 3.7v
  • Four-Slot Battery Charger for XT2

    Four-Slot Battery Charger for XT2

    (BK-T4-002)
    Charges up to four XT2 batteries. Includes AC/DC power adapter.
  • Power Supply for XT2 Cradle

    Power Supply for XT2 Cradle

    (PK-T2-002)
  • Power Supply for XT2 Touch Computer

    Power Supply for XT2 Touch Computer

    (PK-T2-003)
    Includes US/UK/EUR adapters.
  • Standard Battery Kit for XT2

    Standard Battery Kit for XT2

    (BK-T2-001)
    Includes 3000mAh 3.7v battery and non-NFC cover
  • Standard Battery Kit with NFC-enabled Cover

    Standard Battery Kit with NFC-enabled Cover

    (BK-T2-002)
    Includes 3000mAh 3.7v battery and NFC-enabled cover
  • Extended Battery Kit

    Extended Battery Kit

    (BK-T2-003)
    Includes 4000mAh 3.7v battery and non-NFC cover
  • Extended Battery Kit with NFC-enabled Cover

    Extended Battery Kit with NFC-enabled Cover

    (BK-T2-004)
    Includes 4000mAh 3.7v battery and NFC-enabled cover

Expanded Performance

  • Nylon Holster with Rugged Clip for XT2

    Nylon Holster with Rugged Clip for XT2

    (HL-T-003F)
    Use this holster to secure a Janam XT2 rugged touch computer to a belt.
  • Operating Case with Hand Strap for XT2

    Operating Case with Hand Strap for XT2

    (HL-T-004)
    For added user comfort and convenience.
  • Handstrap for XT2

    Handstrap for XT2

    (HS-T-003)
    For added user comfort and convenience.
  • Screen Protector for XT2

    Screen Protector for XT2

    (SP-XT2-1)

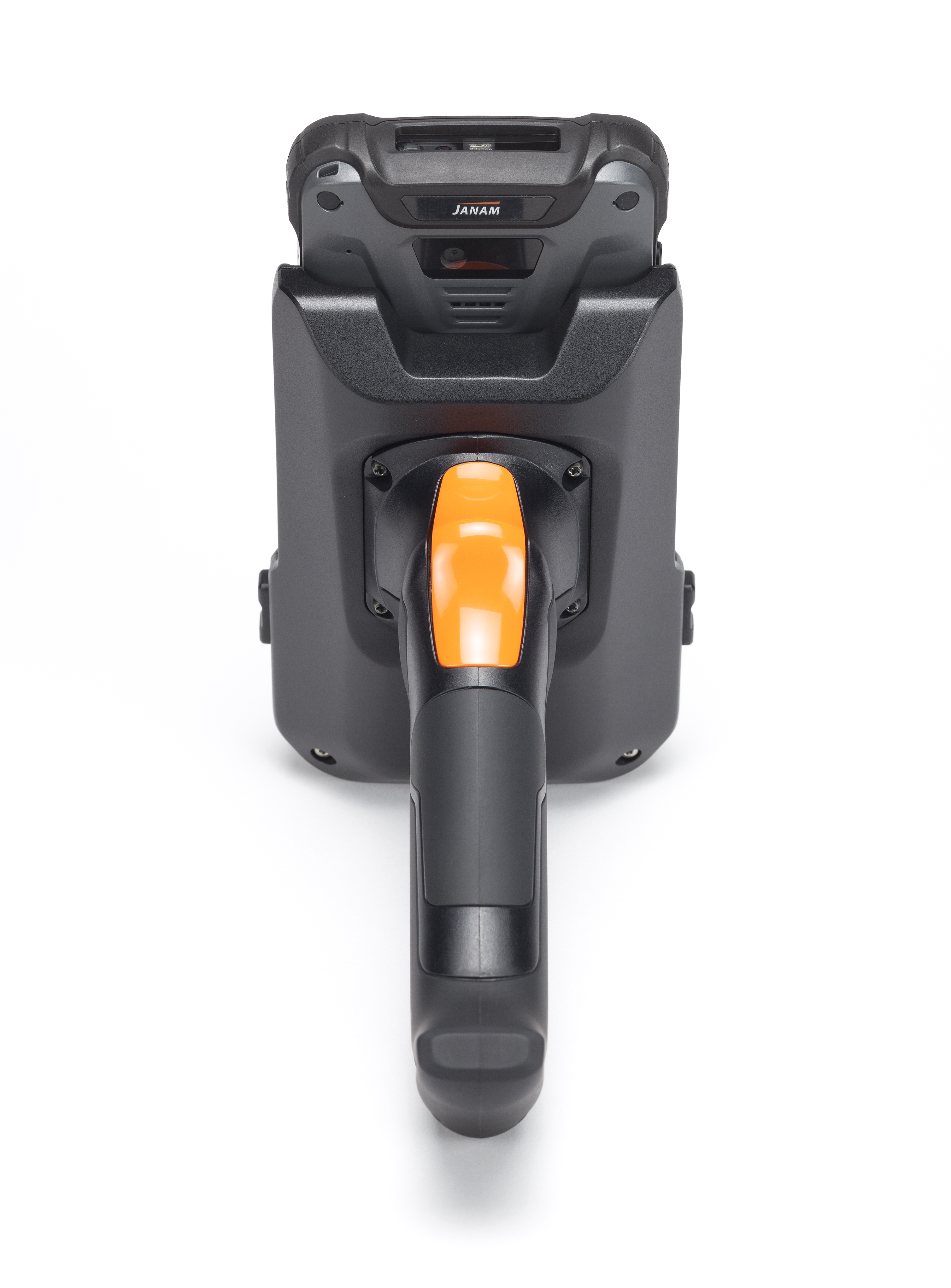

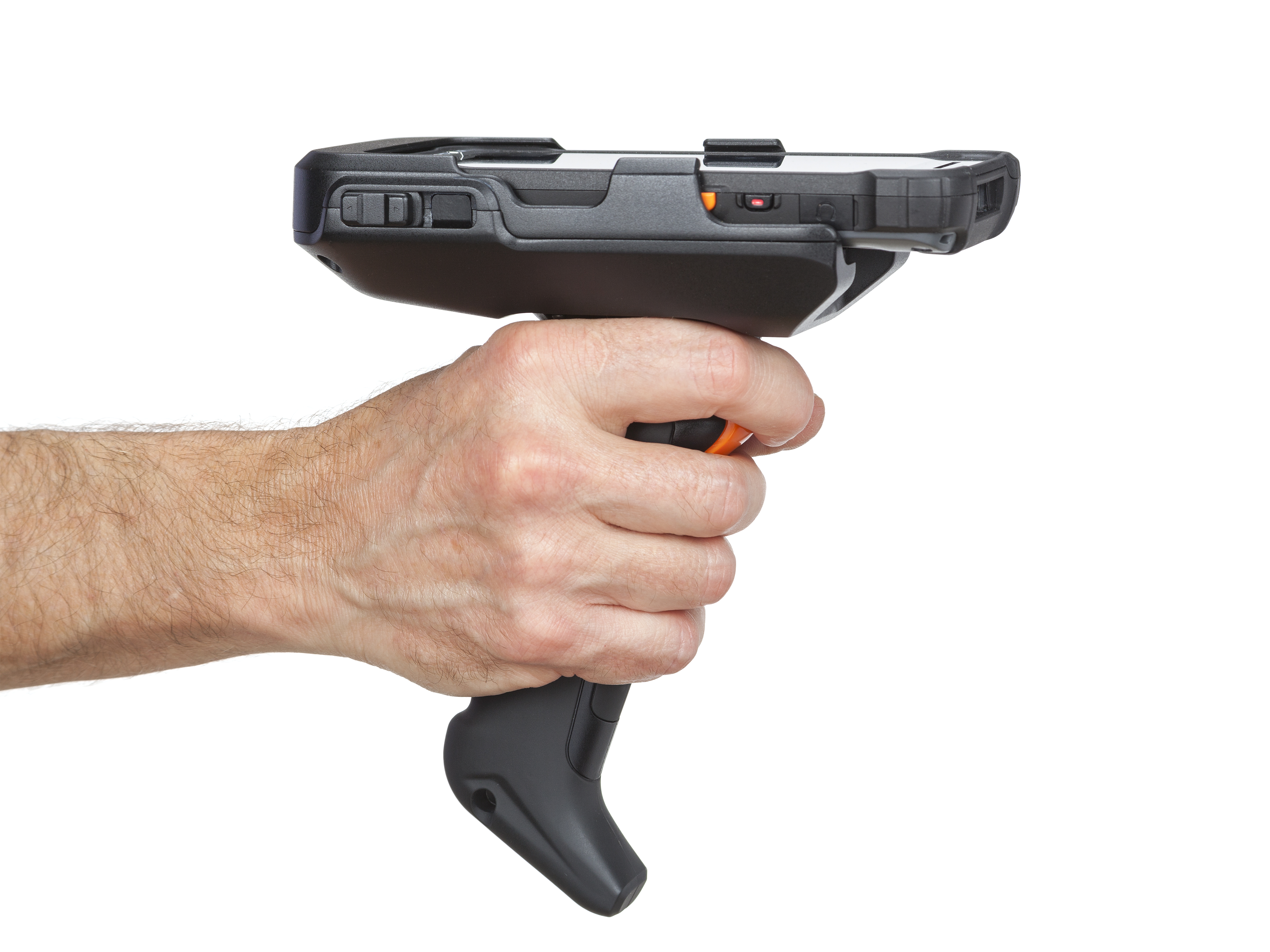

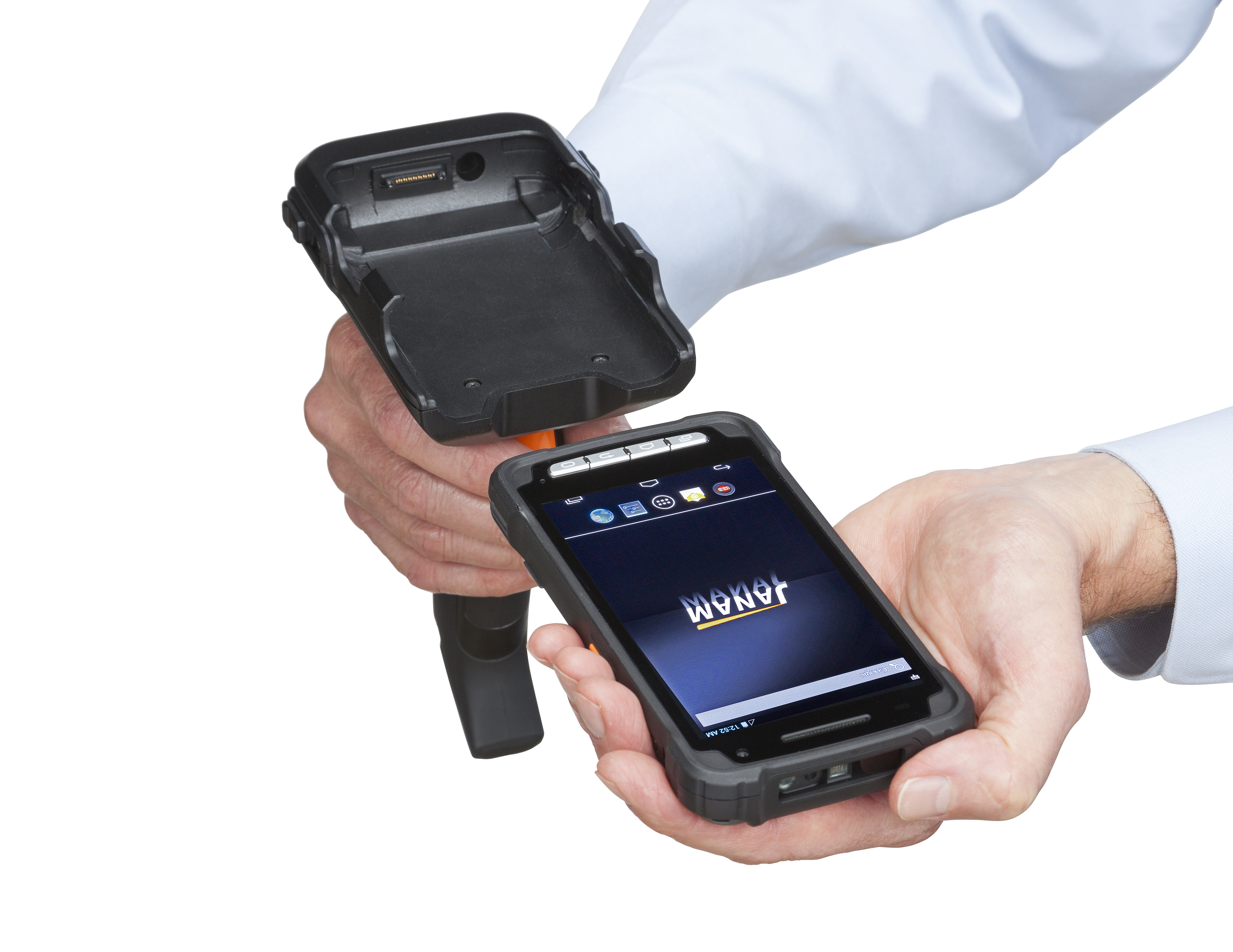

  • XT2 Trigger Handle

    XT2 Trigger Handle

    (TRG-T1-001)

Spare & Replacement Items

  • Stylus with Tether for XT2

    Stylus with Tether for XT2

    (ST-XT2-1)
Resources

Product files and documents


XT2 Android User Manual PDF file, 10.86 MB
XT2 Windows 10 IoT Mobile Enterprise User Manual PDF file, 10.97 MB
XT2_XT2+ Specifications PDF file, 90.17 KB
XT2_XT2+ Datasheet PDF file, 393.42 KB
XT2_XT2+ Datasheet_Dutch PDF file, 1.2 MB
XT2_XT2+ Datasheet_Russian PDF file, 1.18 MB
XT2_XT2+ Datasheet_Spanish PDF file, 1.18 MB
XT2_XT2+ Datasheet_French PDF file, 1.18 MB
