XM75+

Pocketable. Powerful. Tough.

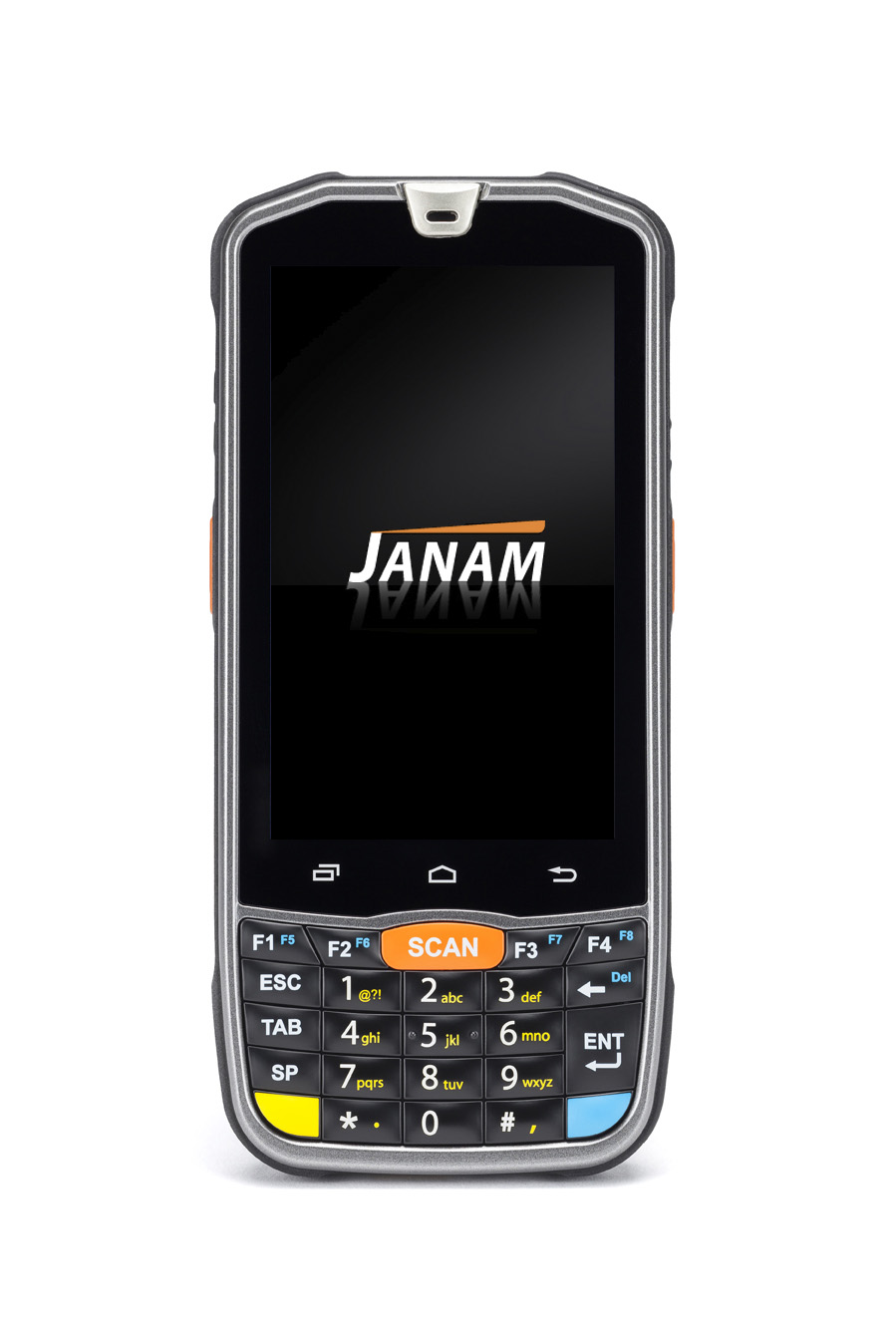

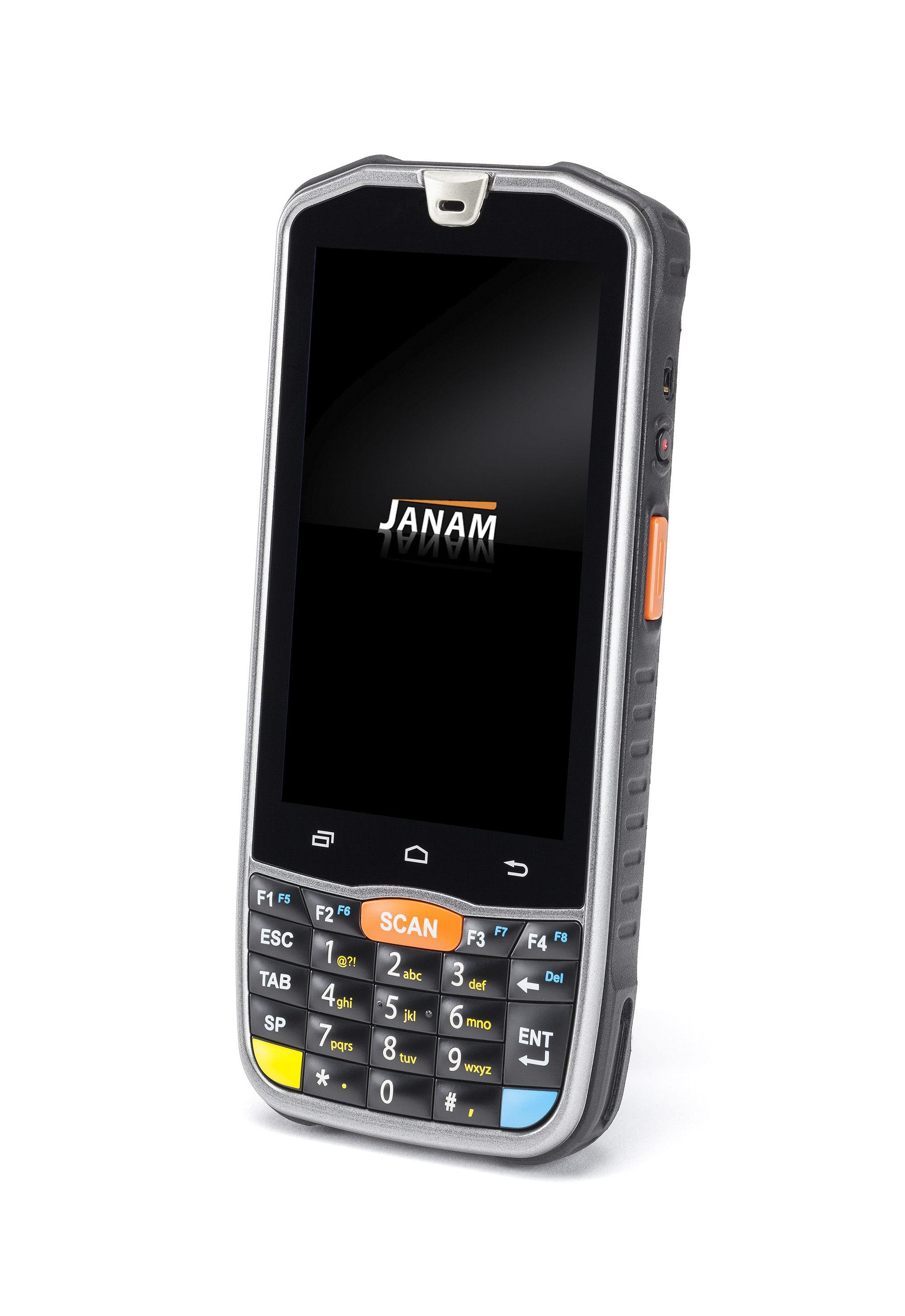

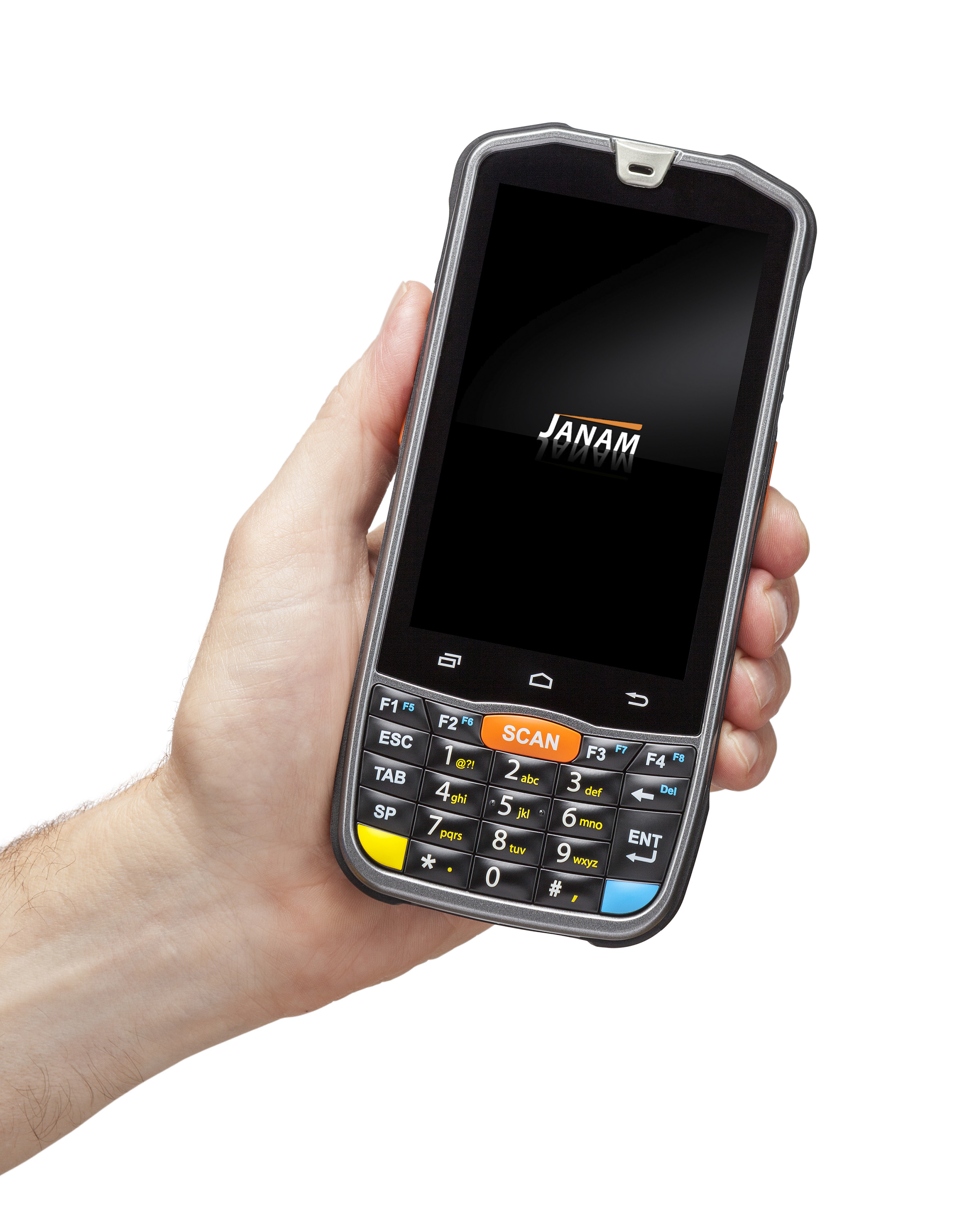

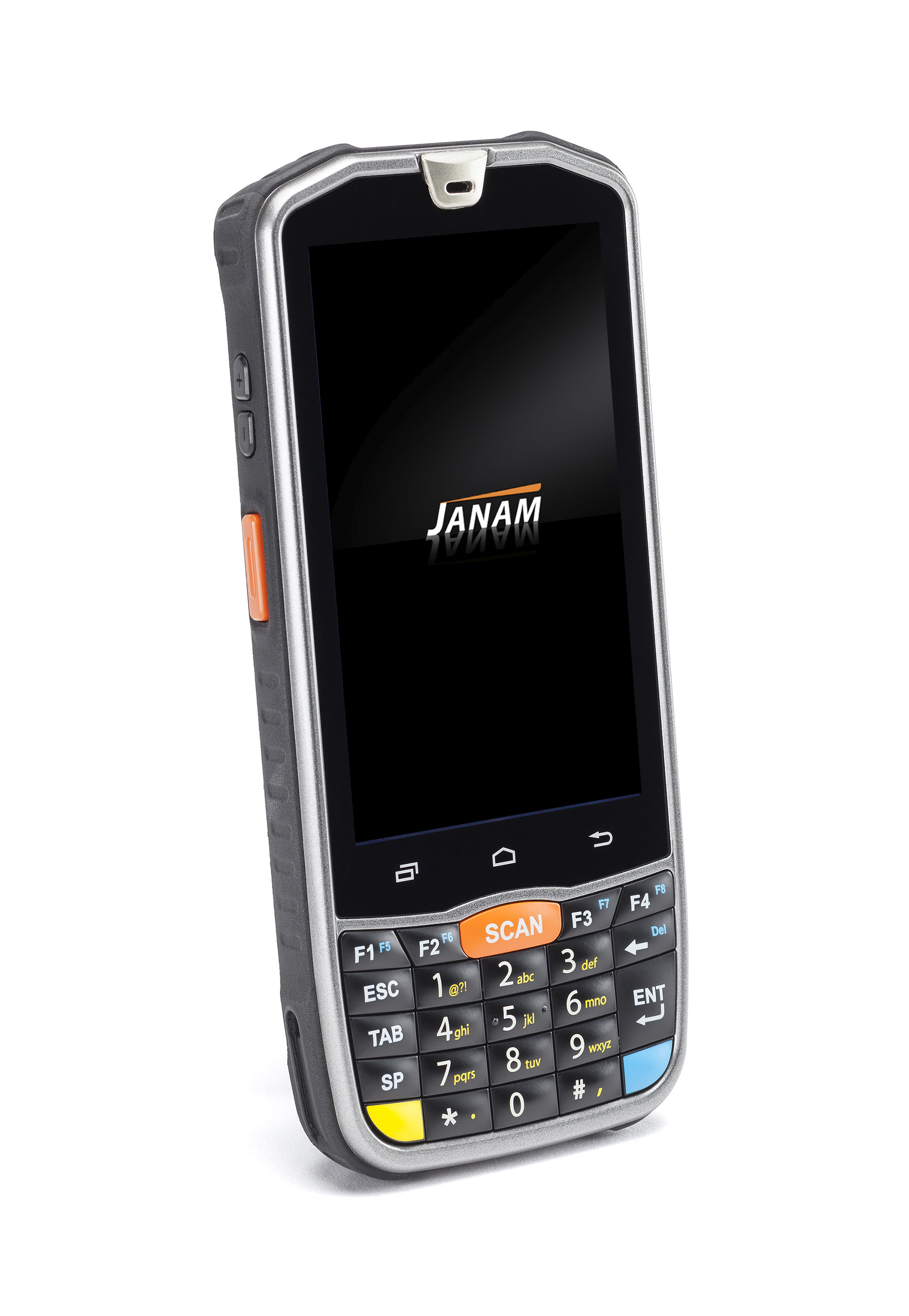

Janam’s XM75+ rugged mobile computer makes it easy to capture business-critical information accurately and efficiently. As one of the only devices specially designed for input-intensive applications, XM75+’s compact form factor combined with larger keypad design delivers the ideal solution for organizations that want an easy-to-use keypad and large touch screen in the same device.

Pocketable and powerful, XM75+ supports Android 11 with Google Mobile Services and meets all the requirements of the most demanding environments, including transportation, logistics, route accounting, direct store delivery and field service.

Weighing only 10.5 ounces, XM75+ is one of the lightest yet most rugged devices in its class and is packed with advanced features to boost productivity, streamline operations and improve the customer experience. Offering the most reliable access to voice and data applications inside and out in the field, XM75+ supports the latest Wi-Fi enhancements including 2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology, Bluetooth 5.1, GPS and cellular.

XM75+ is sealed to IP67 standard against dust and immersion in up to 3 feet of water. It can withstand multiple 5’/1.5m drops to concrete per MIL-STD 810G across a wide temperature range. A standard 2-year warranty provides customers with both peace of mind and the level of service they require, at no additional cost, with optional Comprehensive Service plans available to those that want to further extend their mobile computing investment.



Specifications

TECHNICAL



Operating System

Android 11

Processor

2.0 GHz Qualcomm Snapdragon™ octa-core

Memory

3GB/32GB

Expansion

User-accessible microSD card slot witih support up to 512GB using ExFAT file system

Power

4200mAh 3.85v rechargeable Li-ion battery

PHYSICAL



Dimensions

3.02” x 6.53” x 1.15” / 76.83mm x 166.01mm x 29.27mm

Weight

10.5oz / 300g including battery

Display

4.3” WVGA (480 x 800 pixel) with Corning Gorilla Glass 3

Touch Panel

Capacitive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º C

Storage Temperature

-13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete across a wide temperature range per MIL-STD 810G

Water & Dust

IP67

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

3.5mm headset jack; speaker; 2 microphones

Alerts

Vibration; LED indicators

Connectors

MicroUSB supports USB 2.0 High-Speed

LED Indicators

Dual-color LED indicators

Motion Sensor Gyroscope; Accelerometer; Light Sensor; Proximity Sensor; Digital Compass

External Buttons

Numeric keypad (24 keys) with backlight; 2 external buttons

DATA CAPTURE



Imager

Honeywell N3601SR 2D Imager

Camera 8MP color rear-facing autofocus camera with user-controllable LED flash
RFID/NFC Reads ISO14443A/ISO14443B/ISO15693; MIFARE UltraLight; MIFARE 1k/4k/DESFire;  MIFARE DESFire EV1; Sony FeliCA;
NFC Tag Types 1 to 5


NETWORK COMMUNICATION



USB MicroUSB port supports USB 2.0 High-Speed

WWAN

EDGE/GPRS/GSM: 900/1800
WCDMA: B1/2/5/6/8/19
LTE FDD: B1/2/3/5/7/8/17/20
LTE TDD: B40/41

WLAN

802.11a/b/g/n/ac/ax (ready)/d/h/i/k/r/v, 1x1 MU-MIMO

Security

WEP (40 or 104bit); WPA/WPA2 Personal (TKIP, AES) WPA/WPA2 Enterprise (TKIP/AES) -
WPA3 Personal(SAE),
WPA3 Enterprise(AES)
WPA3 Enterprise 192-bit mode(GCMP 256) Enhanced Open(OWE); PEAP (MSCHAPv2, GTC), TLS, TTLS (PAP, MSCHAP, MSCHAPv2, GTC)
PWD, SIM, AKA, AKA’, LEAP

WPAN

Bluetooth Class I, v5.1, BLE support

GPS Qualcomm GPS supports GLONASS and Beidou

ACCESSORIES

Single-slot cradle kit (Ethernet; Charging)



Four-slot charging cradle kit



Power adapter

Spare battery
Four-slot battery charging kit
Trigger handle
Nylon holster; Operating case; Handstrap

SAFETY/REGULATORY



Safety

IEC/EN-60950-1, cUL  60950-1, UN38.3, UL2054/ UL1642, IEC62133, KC, PSE

Radio

FCC, CE (EMC, RF, SAR, RED), IC

Environment

RoHS, WEEE Compliant, NRCAN

                                           Specifications Subject to Change.

Accessories

Cradle Kits

  • Single-Slot Ethernet Cradle Kit for XM75+

    Single-Slot Ethernet Cradle Kit for XM75+

    (CKT-P1-075E)
    Includes Cradle and AC/DC charger.
  • Single-Slot USB Cradle Kit for XM75+

    Single-Slot USB Cradle Kit for XM75+

    CKT-P1-075U
    Includes Cradle and AC/DC adapter.
  • Four-Slot Cradle Kit for XM75+

    Four-Slot Cradle Kit for XM75+

    (CKT-P4-075C)
    Includes Cradle and AC/DC adapter.

Batteries & Chargers

  • Four-Slot Battery Charger for XM75+

    Four-Slot Battery Charger for XM75+

    (BK-P4-075)
    Charges up to four XT2 batteries. Includes AC/DC power adapter.

Expanded Performance

  • Snap-On Trigger Handle for XM75+

    Snap-On Trigger Handle for XM75+

    (TRG-P1-001)
Resources

Product files and documents


XM75+ Datasheet PDF file, 721.65 KB
