The Right Features. The Right Price.

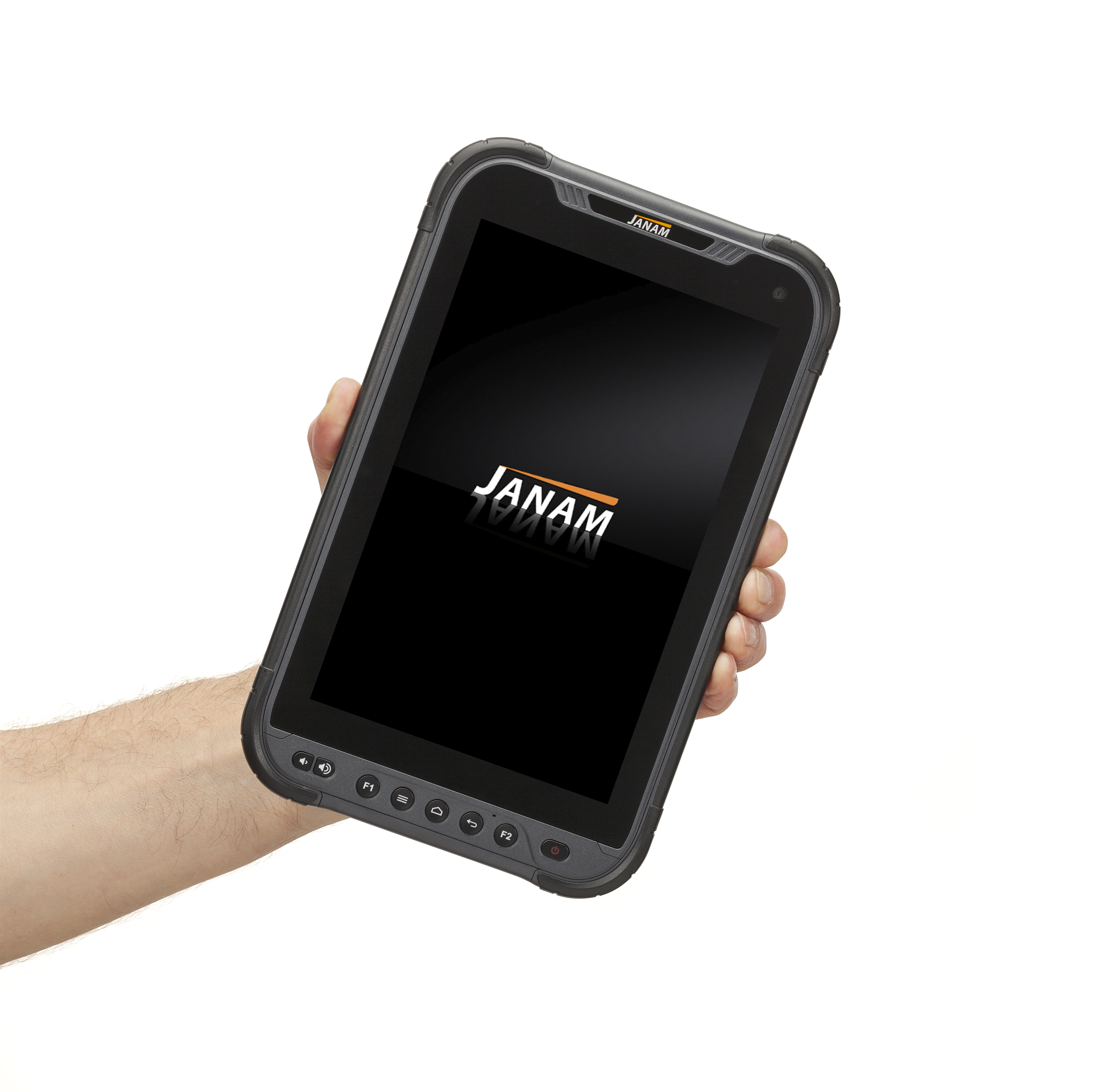

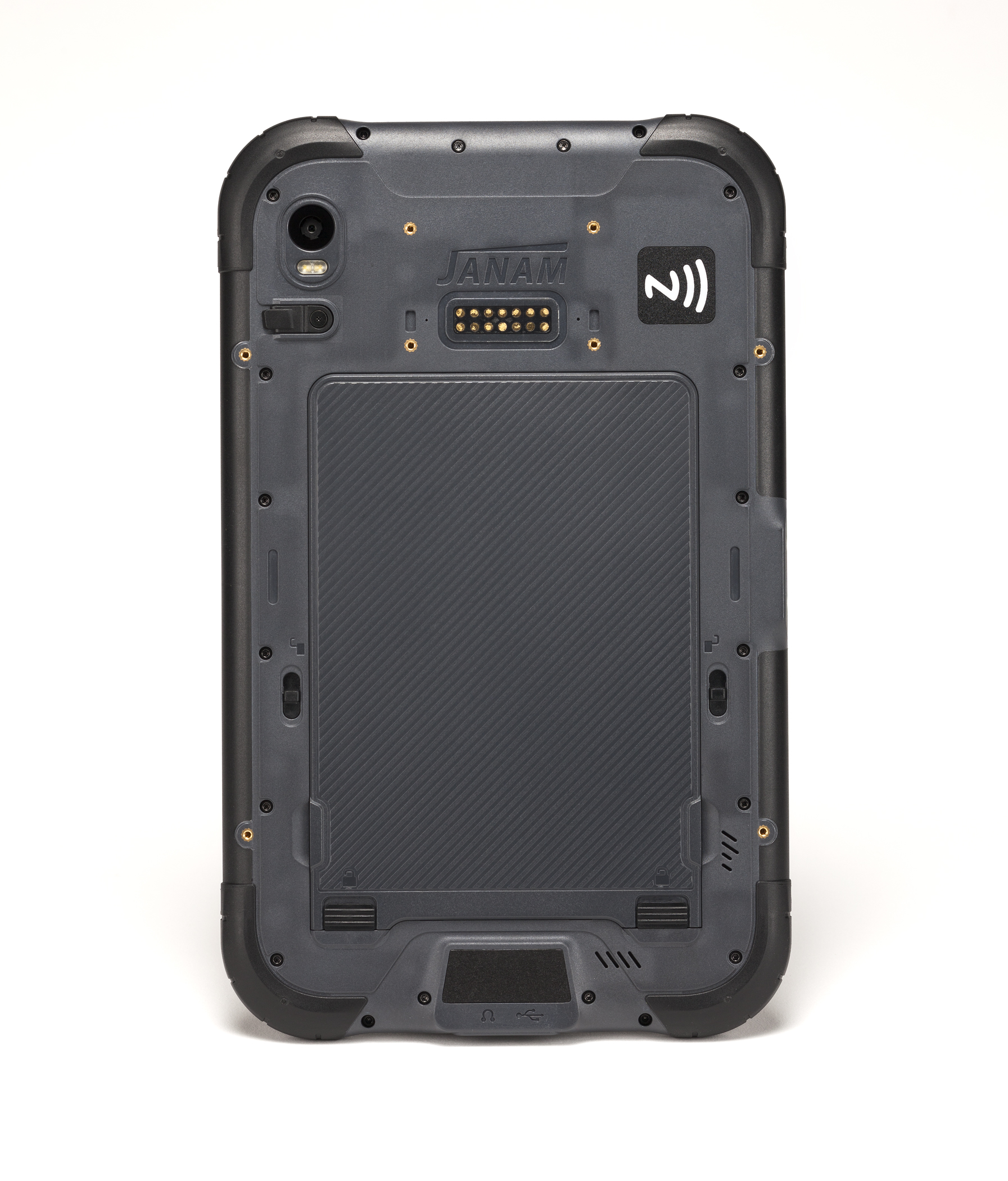

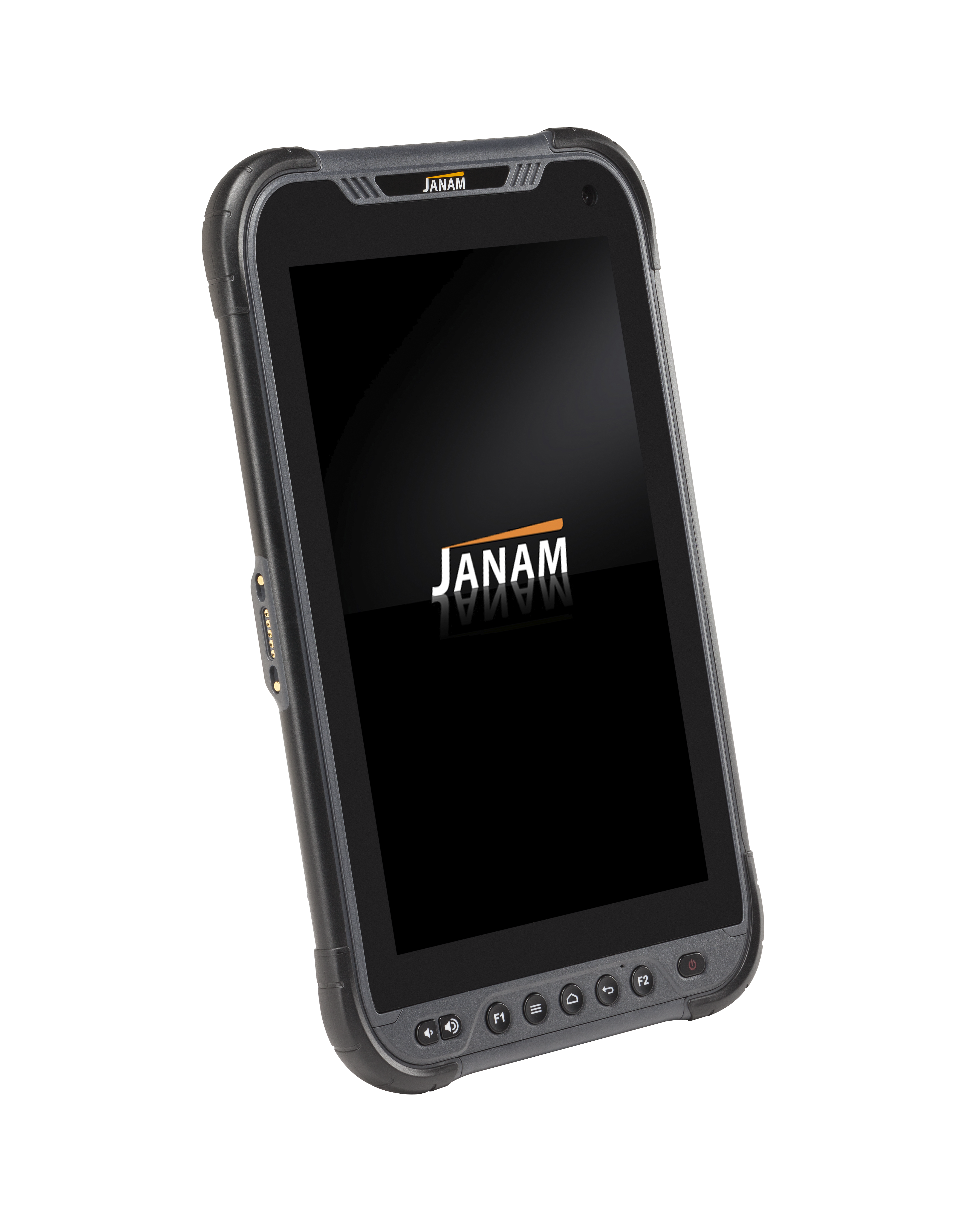

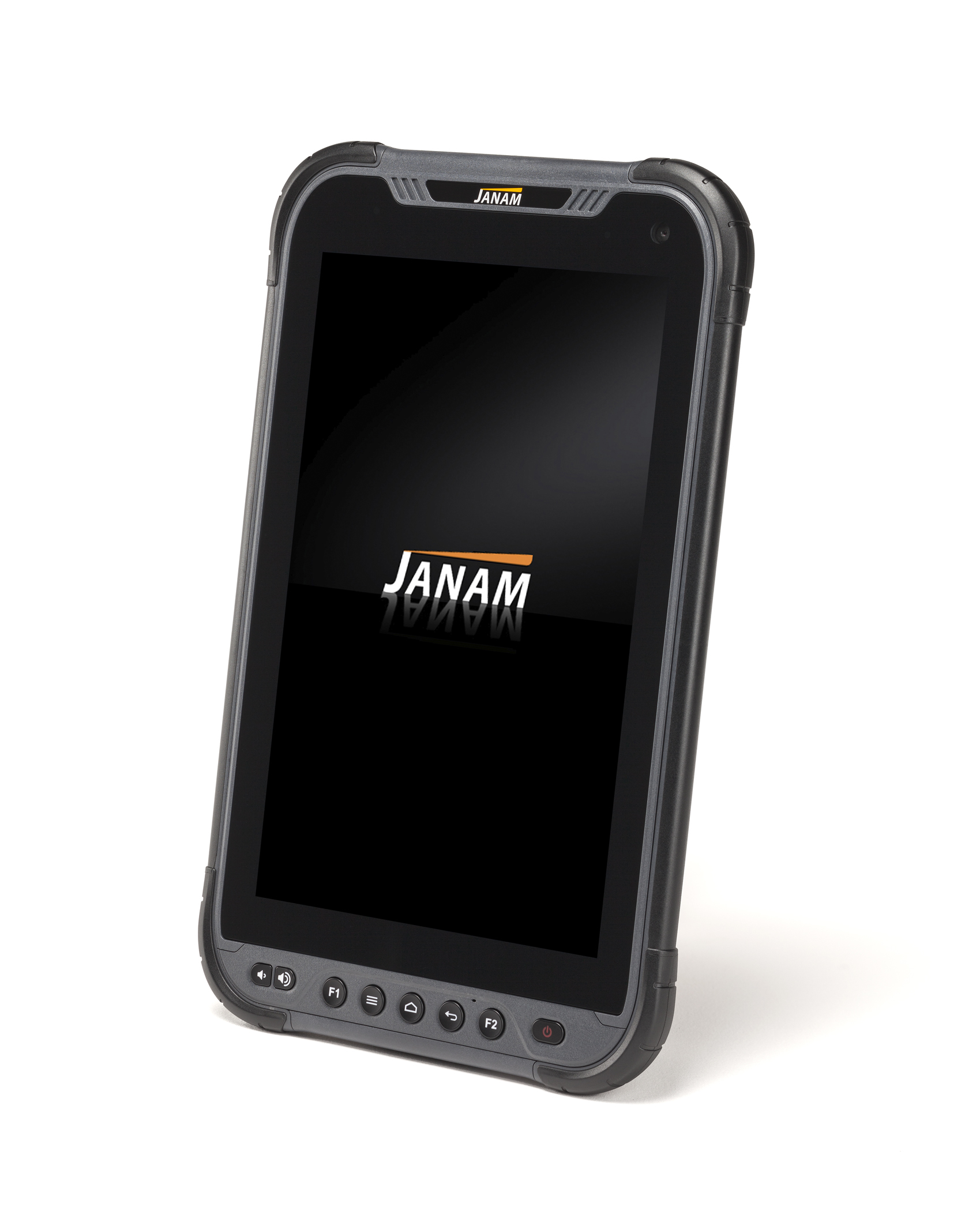

HT1

Built to Excel in Demanding Environments.

With an increasing demand for more screen viewability, rugged tablet adoption in the enterprise continues to rise. Janam’s HT1 exceeds enterprise expectations – delivering the most powerful and advanced 8-inch rugged tablet for retail, warehousing, manufacturing, field service, fleet-based operations and other demanding work environments.

Slim and light, the HT1 is ergonomically designed for one-handed use and is as stylish as a consumer tablet. The powerful HT1 offers latest-generation speed and performance to help organizations achieve maximum productivity. A blazing-fast Snapdragon octa-core processor boosts efficiency, while an 8200mAh swappable and rechargeable battery provides all-day battery life for uninterrupted usage in extended-shift work environments.

Wi-Fi, Bluetooth, NFC and 4G LTE connectivity allow factory and warehouse workers, field service technicians, police officers, nurses and airline personnel, among others, to access business-critical information anywhere their job takes them.

Powered by Android 9 (Pie) with Google Mobile Services (GMS), the HT1 can be upgraded to future generations of Android. As part of the Android Enterprise Recommended (AER) program, the HT1 is guaranteed to meet the strictest enterprise requirements and is easily deployed, scaled and supported across an organization.

The HT1 is IP67-rated and MIL-STD-810G military grade certified to ensure protection against dust, water, vibrations, drops, extreme temperatures and varying altitudes.


Specifications

TECHNICAL



Operating System

Android 9 (Pie) with Google Mobile Services (GMS); OS upgradeable; Android Enterprise Recommended

Processor

2.0 GHz Qualcomm Snapdragon™ 625 octa-core

Memory

4GB LPDDR3 RAM/64GM eMMC Flash

Expansion User-accessible microSD card slot with SDXC support; SIM slot

Power

8200mAh 3.8V swappable, rechargeable Li-ion battery

PHYSICAL



Dimensions

9.25” L x 5.74” W x .57” D /
235mm L x 146mm W x 14.5mm D

Weight

22.7oz / 645g including battery

Display

8.0” FHD with Corning® Gorilla® Glass 3; 400+ nits

Touch Panel

Capacitive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 131º F / -20º to 55º C

Storage Temperature

-40º to 158º F / -40º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 4ft / 1.2m drops to concrete
per MIL-STD-810G and MIL-STD-810F

Water & Dust

IP67

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

3.5mm headset jack; 2 speakers; 2 noise-cancelling microphones; Push-to-Talk support

Alerts

Vibration; LED indicators

Connectors

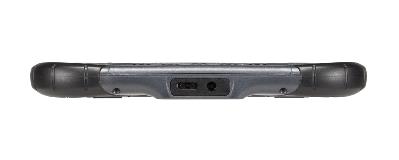

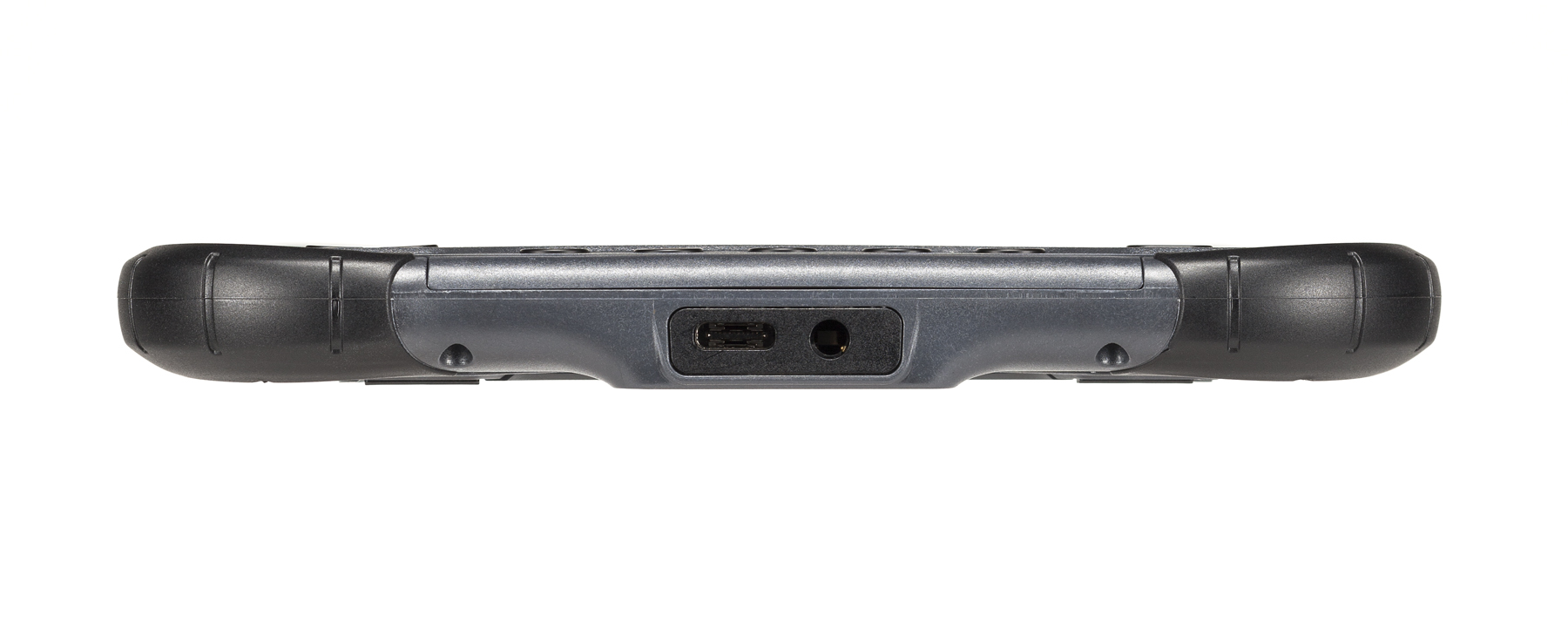

USB-C; Pogo Pin industrial connector

LED Indicators

Dual-color

Motion Sensor Accelerometer; Light Sensor; Proximity
Sensor; Digital Compass
External Buttons 8 hard keys

DATA CAPTURE



Imager

High-performance 1D/2D imager (optional)
Camera 13MP color rear-facing autofocus camera with user-controllable LED flash and 5MP front-facing camera
RFID/NFC Reads ISO14443 Type A; ISO14443 Type B; IEC15693

WIRELESS
COMMUNICATION



WWAN

GSM: 850/900/1800/1900
TD-SCDMA: B34/39
WCDMA: B1/2/5/8
CDMA/EVDO: BC0
LTE FDD: B1/2/3/4/5/7/8/12/13/17/20/25/28
LTE TDD: B38/B39/B40/41

WLAN

802.11a/b/g/n/ac

Security IEEE 802.11n; WEP; WPA/WPA2 Personal
(TKIP. AES); WPA/WPA2 Enterprise (TKIP, AES);
PEAP(MSCHAPv2, GTC): TLS; TTLS
(PAP, MSCHAP, MSCHAPv2, GTC); PWD; SIM;
AKA; AKA’, LEAP
 WPAN Bluetooth Class I 4.1 (BLE)
GPS GPS supports GLONASS

ACCESSORIES

Desktop Charging Cradle

Vehicle Cradle
Handstrap

SAFETY/REGULATORY



Safety

IEC60529:2013; IEC68-2-32:1990;
GB4208-2008; GB/T2423.8-1995

Radio

FCC; CE; IC; RCM; MIL-STD-461F

Environment

RoHS; REACH and WEEE compliant

                                           Specifications Subject to Change.

Accessories

Cradle Kits

  • Single-Slot USB/Ethernet Cradle Kit for HT1

    Single-Slot USB/Ethernet Cradle Kit for HT1

    ( CKT-H1-001UE)
    Includes power supply.

Batteries & Chargers

  • Standard Battery for HT1

    Standard Battery for HT1

    ( BAT-H1-001)
    8200mAh 3.8V

Expanded Performance

  • 2D Imager Attachment for HT1 Series

    2D Imager Attachment for HT1 Series

    (ATC-HT!-1)
  • Handstrap for HT1

    Handstrap for HT1

    (HS-T-004)
