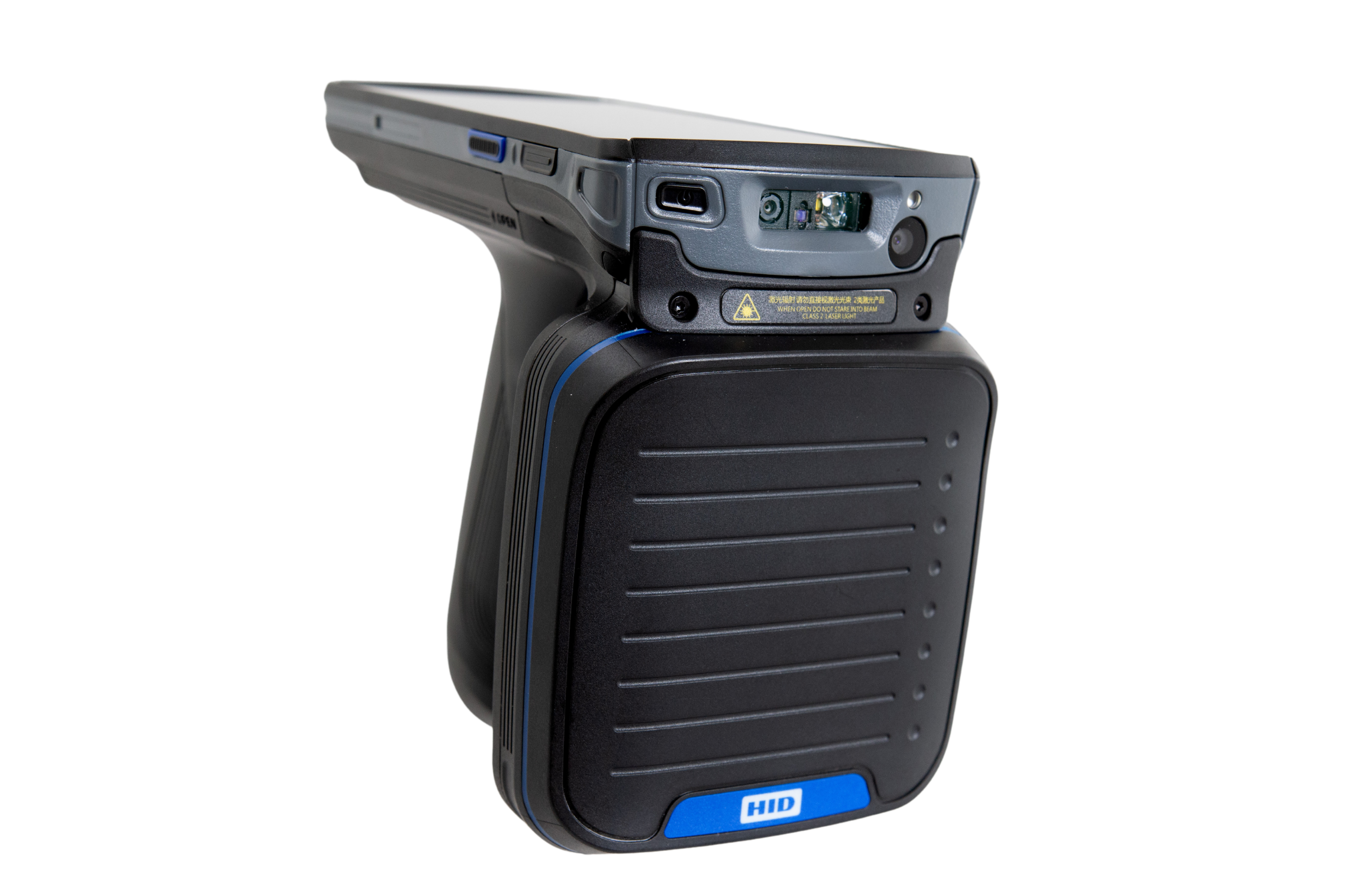

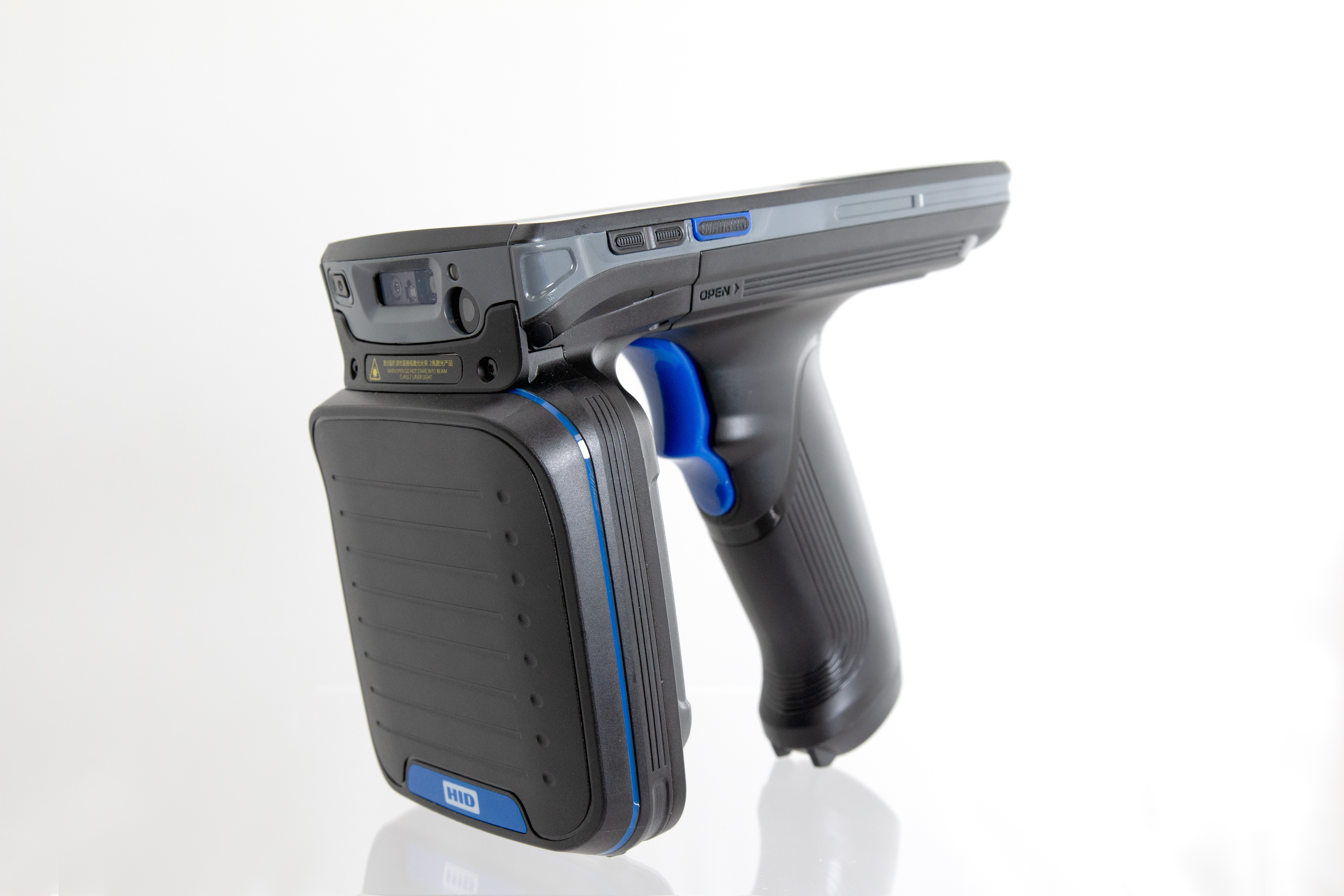

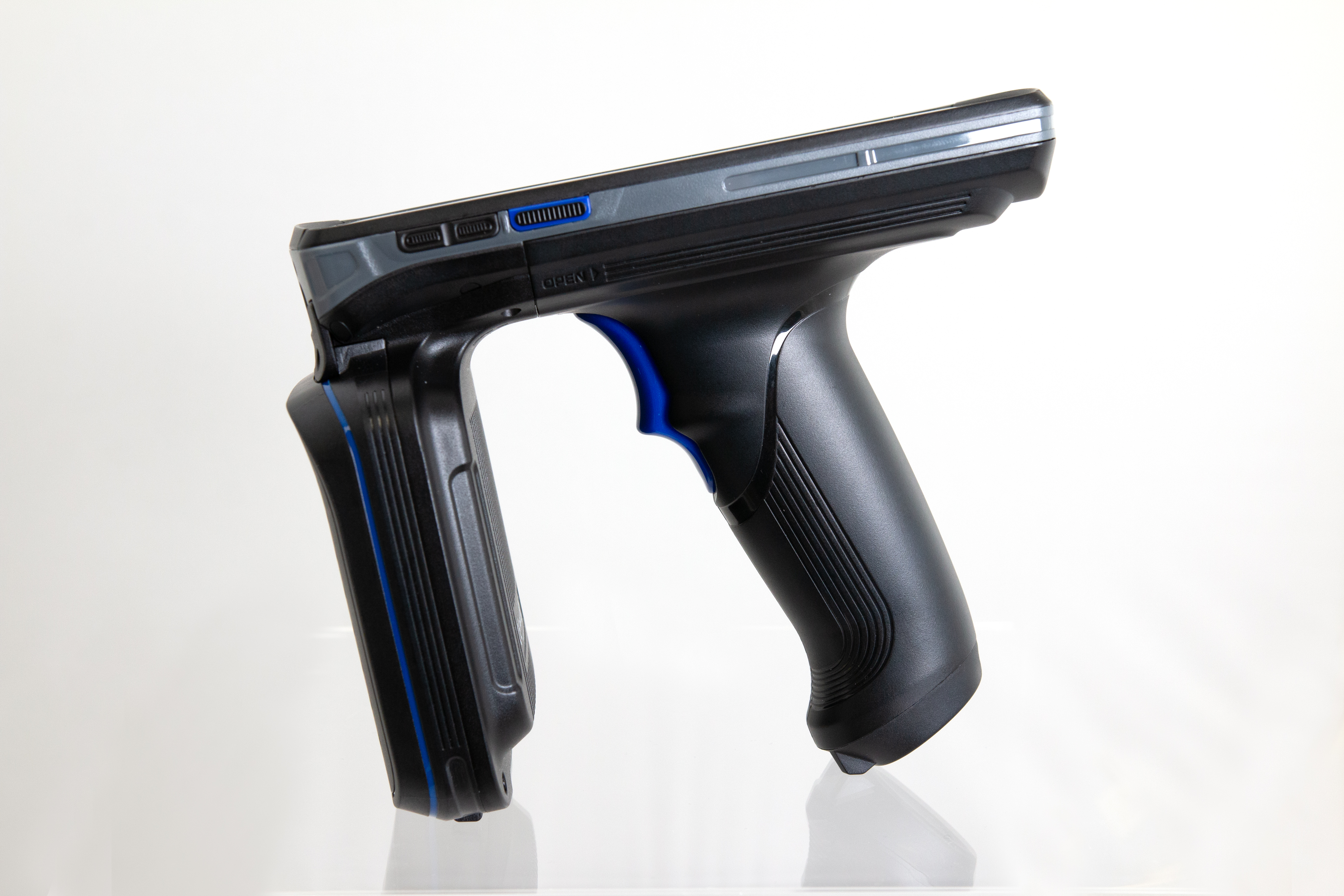

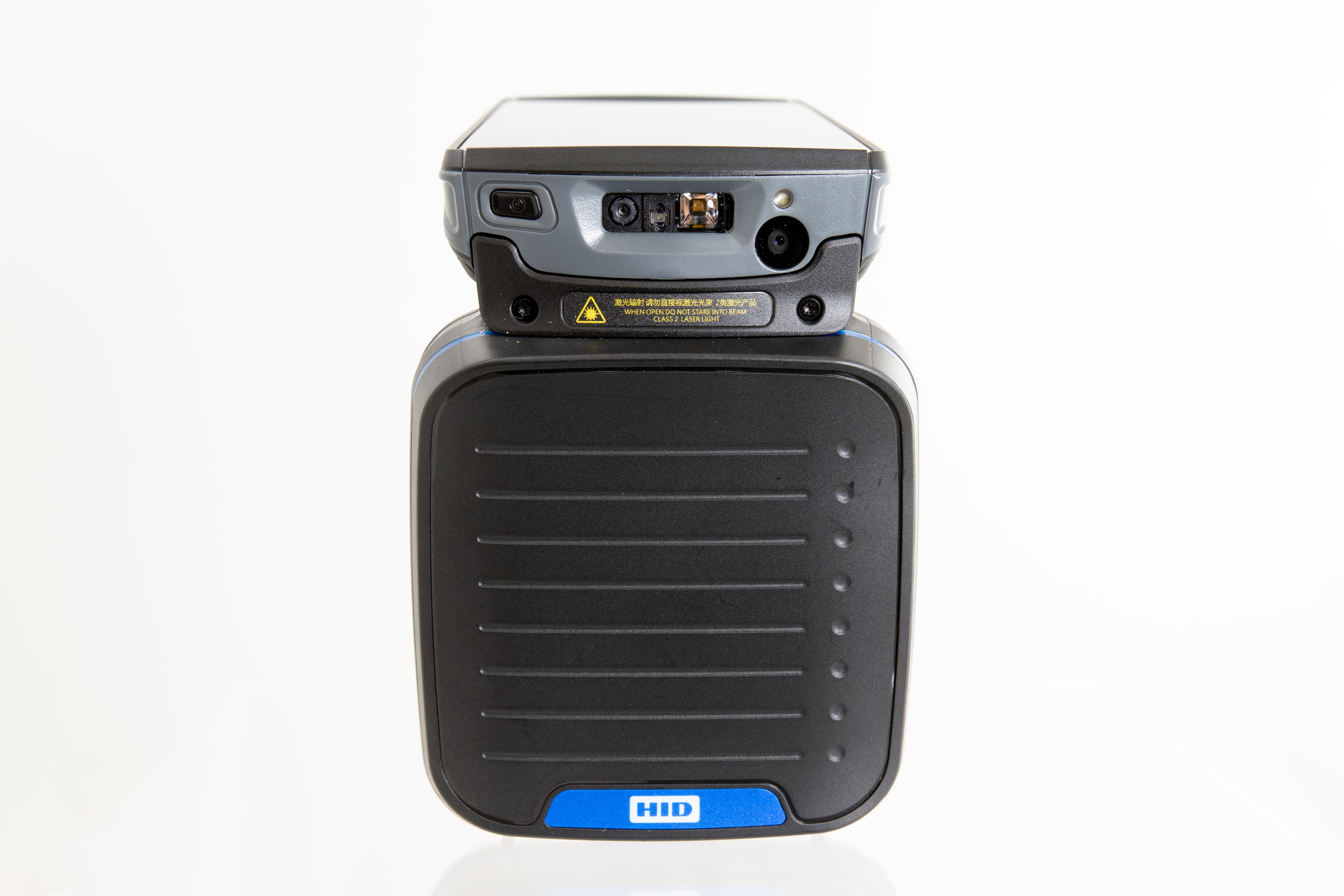

XR2

Breakthrough All-in-One UHF RFID Reader for Supply Chain Operations

Janam's XR2 is the ultimate all-in-one UHF RFID reader designed for the dynamic needs of the supply chain, manufacturing and logistics industries. Engineered for real-time tracking and superior visibility, XR2 redefines inventory management and asset tracking with its unparalleled speed and accuracy.

This state-of-the-art RFID reader merges advanced RAIN RFID technology with a sleek and intuitive design to help businesses of all types and sizes optimize their operations. Powered by the industry-leading Impinj E710 reader chip, XR2 is a cost-effective, high-quality solution that doesn't compromise on functionality. Capable of scanning more than 1,000 EPC Class 1 Gen 2 tags per second and from up to 60 feet away, XR2 delivers new levels of efficiency in asset management and inventory control, significantly reducing the time and labor required for businesses of all types and sizes. And integration of an advanced Honeywell 1D/2D imager delivers high-throughput capture of even the most difficult-to-read barcodes.

XR2 offers enhanced connectivity options through JanamConnect®, an optional multi-carrier SIM card solution that provides businesses with access to the best-performing cellular networks globally. Built-in GPS functionality not only provides accurate location data but also enhances asset tracking and management. By merging precise tag location information with RFID data, XR2 enables businesses to gain business-critical insights into asset logistics, streamline operations and significantly boost efficiencies across the modern supply chain.

Specifications

TECHNICAL



Operating System

Android 13 with Google Mobile Servies (upgradable to Android 15)

Processor

2.45GHz Qualcomm octa-core

Memory

4GB/64GB

Expansion

User-accessible microSD card slot witih support up to 512GB using ExFAT file system

Power

9000mAh 3.7v rechargeable Li-ion battery

PHYSICAL


Dimensions  5.64in. x 6.65 in. x 3.56 in. / 143.3 mm x 169 mm x 90.5 mm

Weight

26.2 oz./678 g

Display

5.7-inch (720 x 1440); color display

Touch Panel

Corning Gorilla Glass touch panel; supports dual input mode with finger, gloved finger and stylus; water droplet rejection; anti- fingerprint and anti-smudge coating

 Backlight  LED backlight
 Cards  User accessible MicroSD ( 256GB); Nano-SIMx2

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º C

Storage Temperature

-40º to 158º F / -40º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 4ft/1.2m drops to concrete

Water & Dust

IP67

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact
+/- 8kV indirect contact discharge



INTERFACE FEATURES



Voice & Audio

Built-in speaker (1.5W) and microphone (noise cancellation)

Alerts

LED lights; Audio

Sensors Accelerometer with gyroscope; Proximity sensor; Light sensor

DATA CAPTURE



Imager

Honeywell N5703 1D/2D imager

Camera 5MP/13MP rear and top-facing (respectively) Cameras with Flash
 RFID
 Standards Supported  EPC Class 1 Gen2; ISO-18000-63
 RFID Chip  Impinj E710
Fastest Read Rate  1000+ tags/sec
Normal Read Range  ~60+ ft./~18.2+ m
 Frequency Range 865-868MHz; 902-928MHz

WIRELESS COMMUNICATION



WWAN

Mode: Dual-SIM; Dual-Standby
TD-LTE(B34/B38/B39/B40/B41)
FDD-LTE(B1/B2/B3/B4/B5/ B7/B8/B12/B13/ B17/B20/B28A/B28B)
WCDMA(B1/B2/B4/B5/B8)
TD-SCDMA(B34/B3 9)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)
CDMA1x
GSM/EDGE/GPRS(850/900/1800/1900)

WLAN

2.4G/5G Wi-Fi; IEEE 802.11 a/b/g/n/ac/d/e/ h/i//k/r/v/w; 802.11ax ready
 Operating Channels
(depending on regulatory)
 Channels 1-13, 34-140, 149-165

Security

WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/ WPA2 Enterprise (TKIP and AES); WPA3 Enterprise 192-bit mode (GCMP-256) - EAP-TLS; Enhanced Open (OWE)



WPAN

Class 2, Bluetooth v5.0, with BR/EDR and Bluetooth Low Energy Support

Positioning GPS, A-GPS, BeiDou, GLONASS , Galileo
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC

ACCESSORIES

Single-slot charging cradle kit

SAFETY/REGULATORY



EMI/EMC

FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B



Electrical Safety

UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1

RF Exposure

EU: EN 50364, EN 62369-1, EN 50566, EN 62311 USA: FCC Part 2, 1093 OET Bulletin 65 Supplement ‘C’ Canada: RSS-102



 Environmental  RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006

                                           Specifications Subject to Change.
