XG200

Unique Design for Increased Productivity

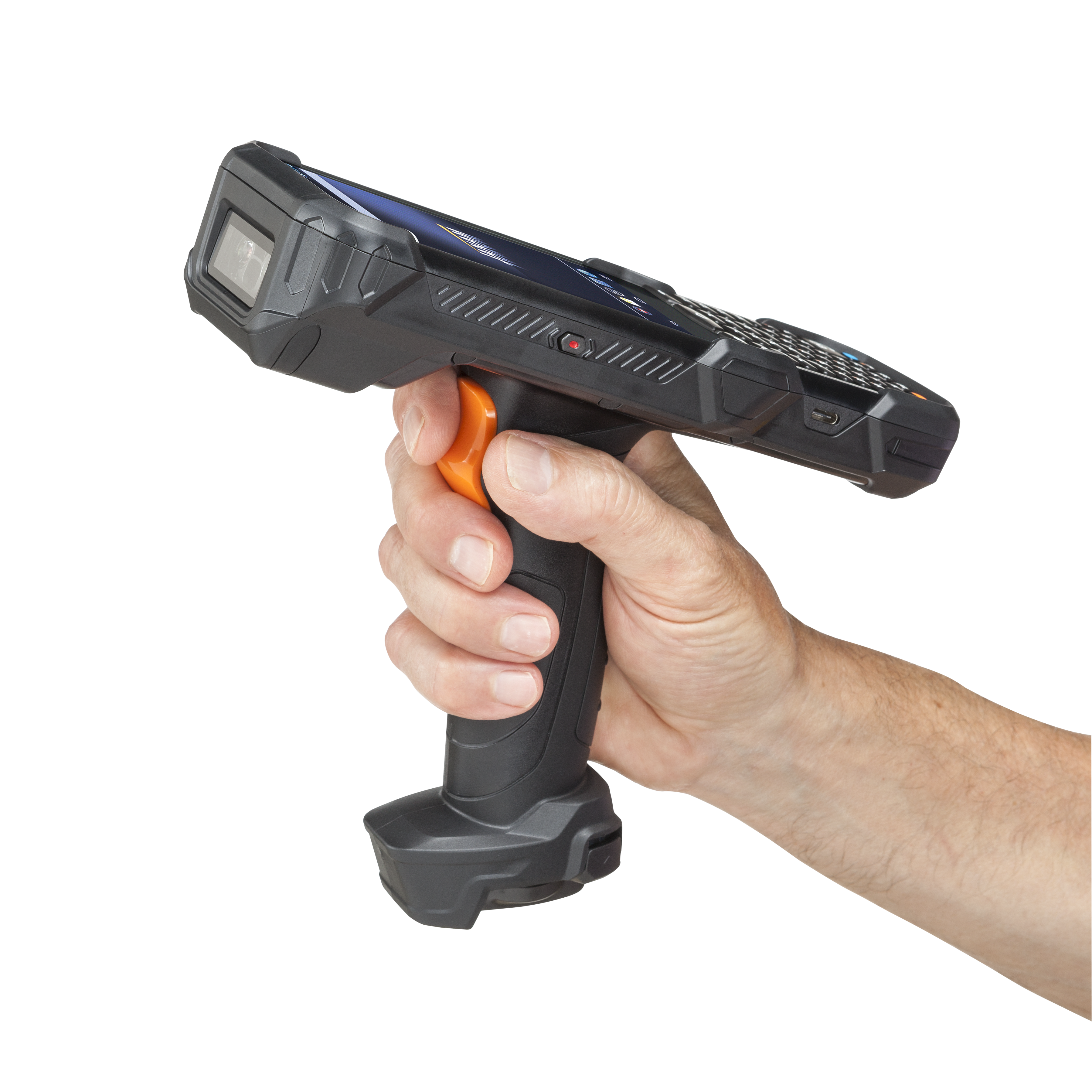

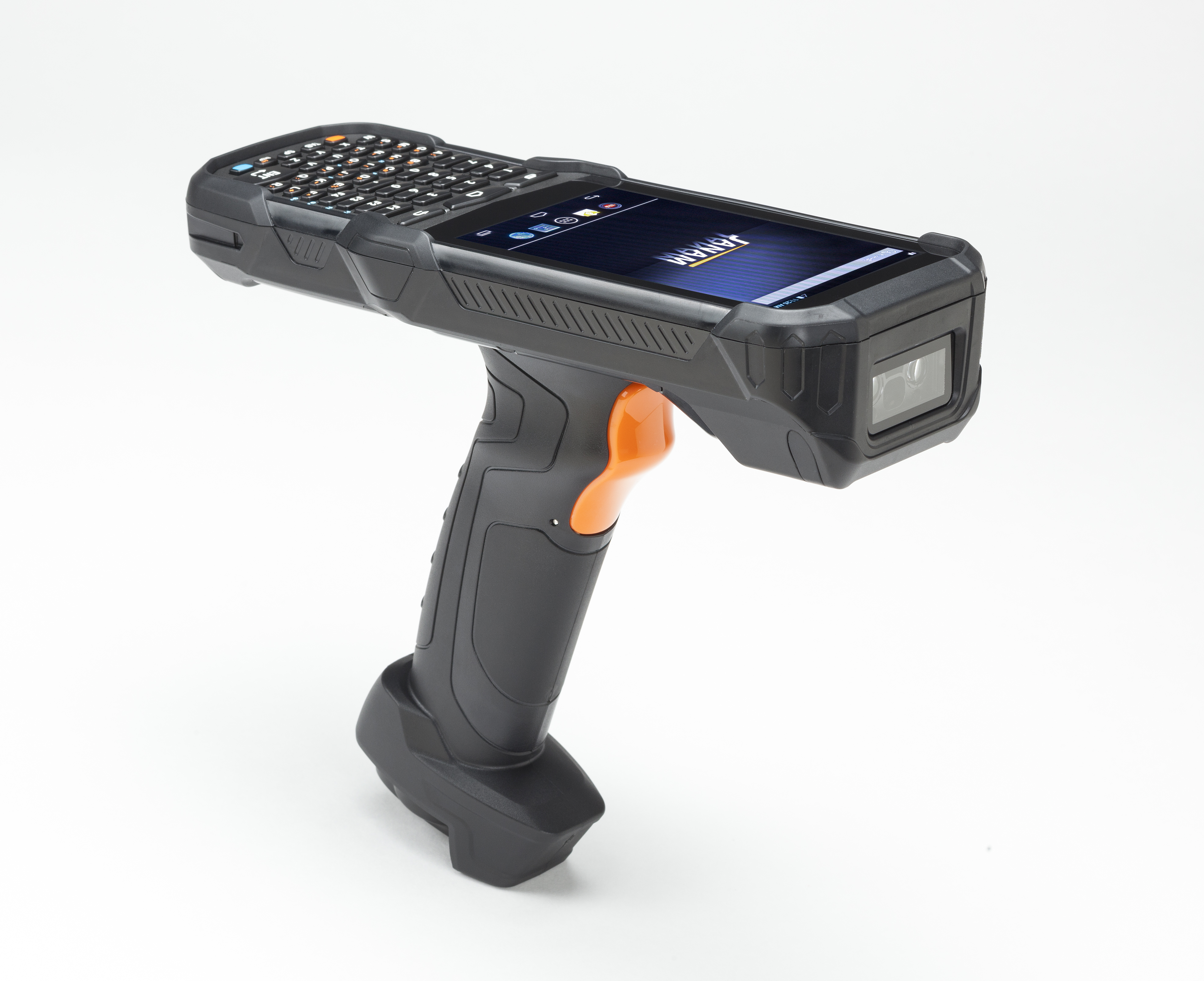

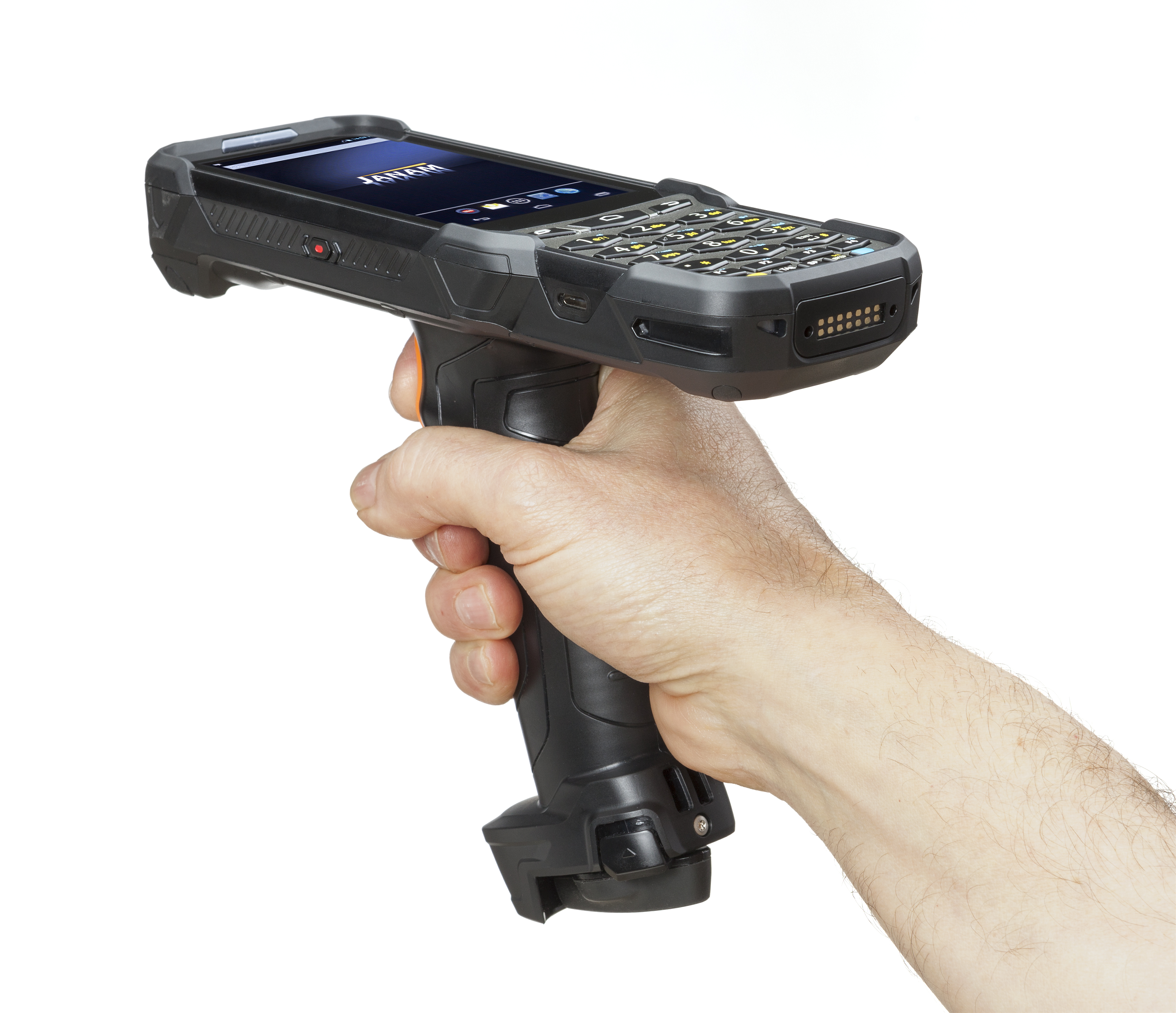

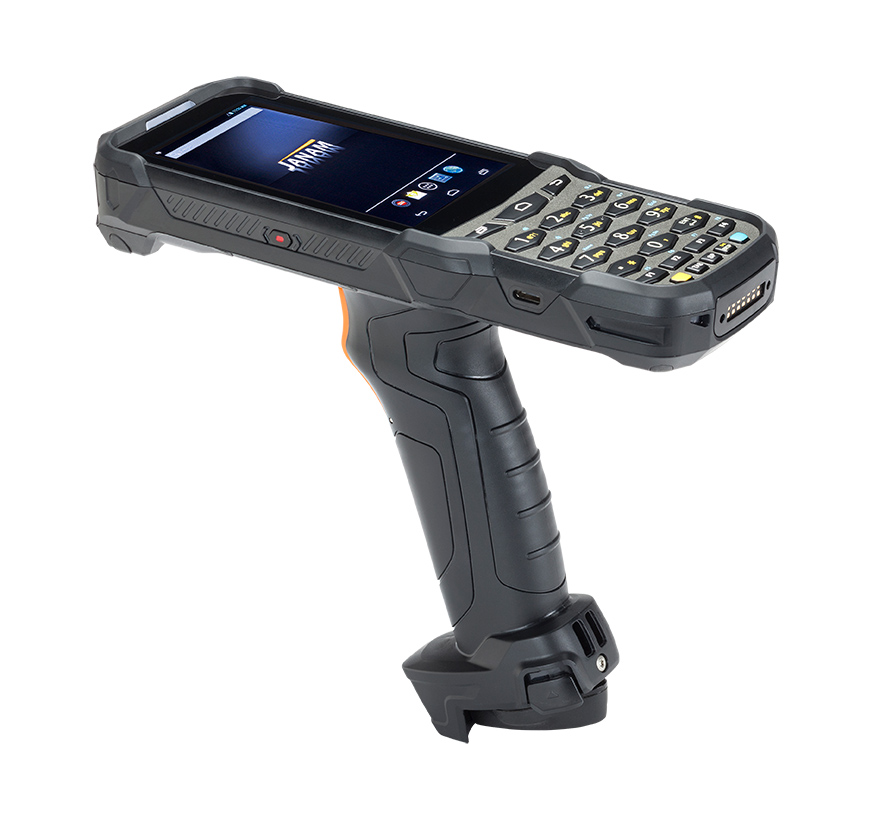

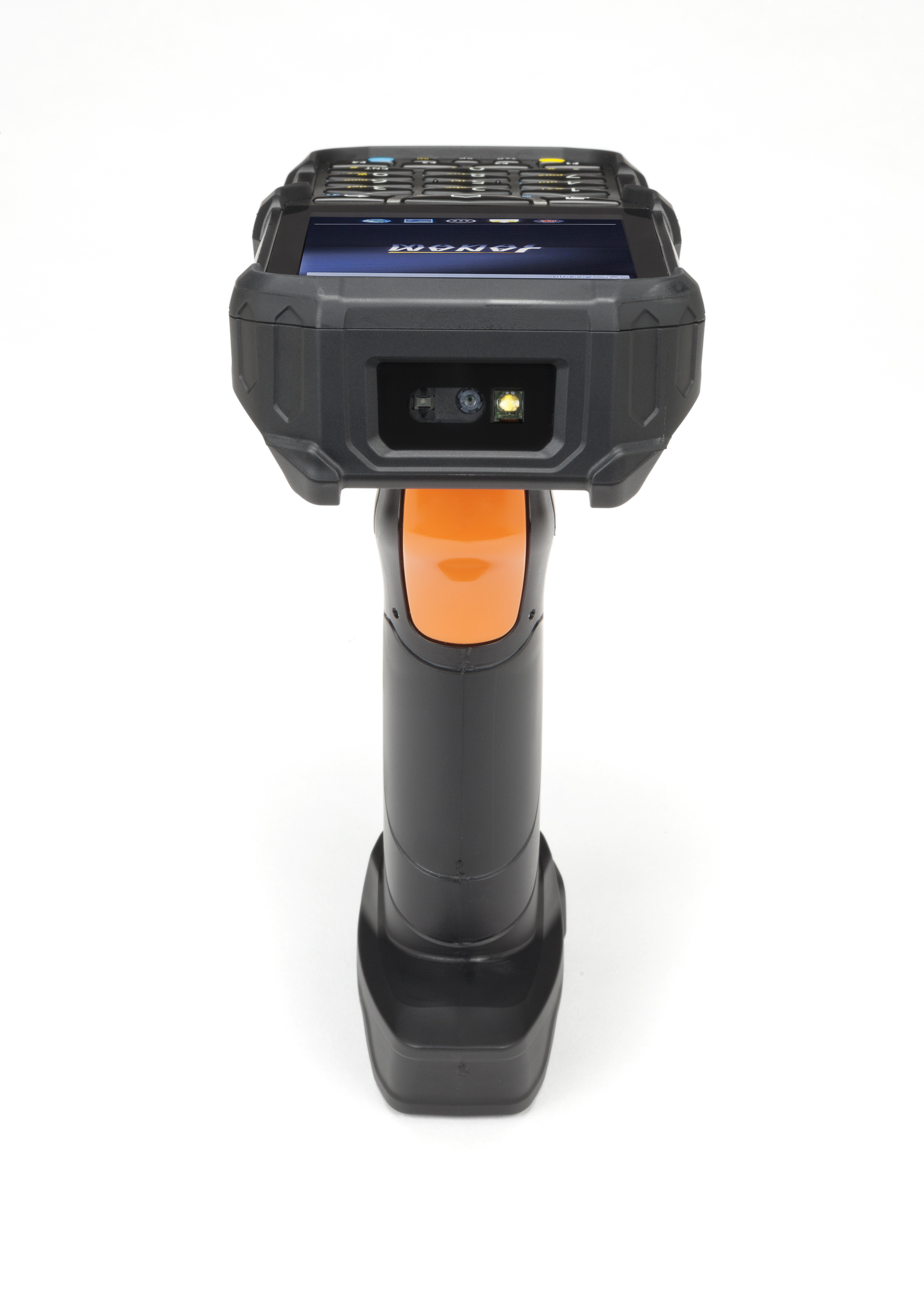

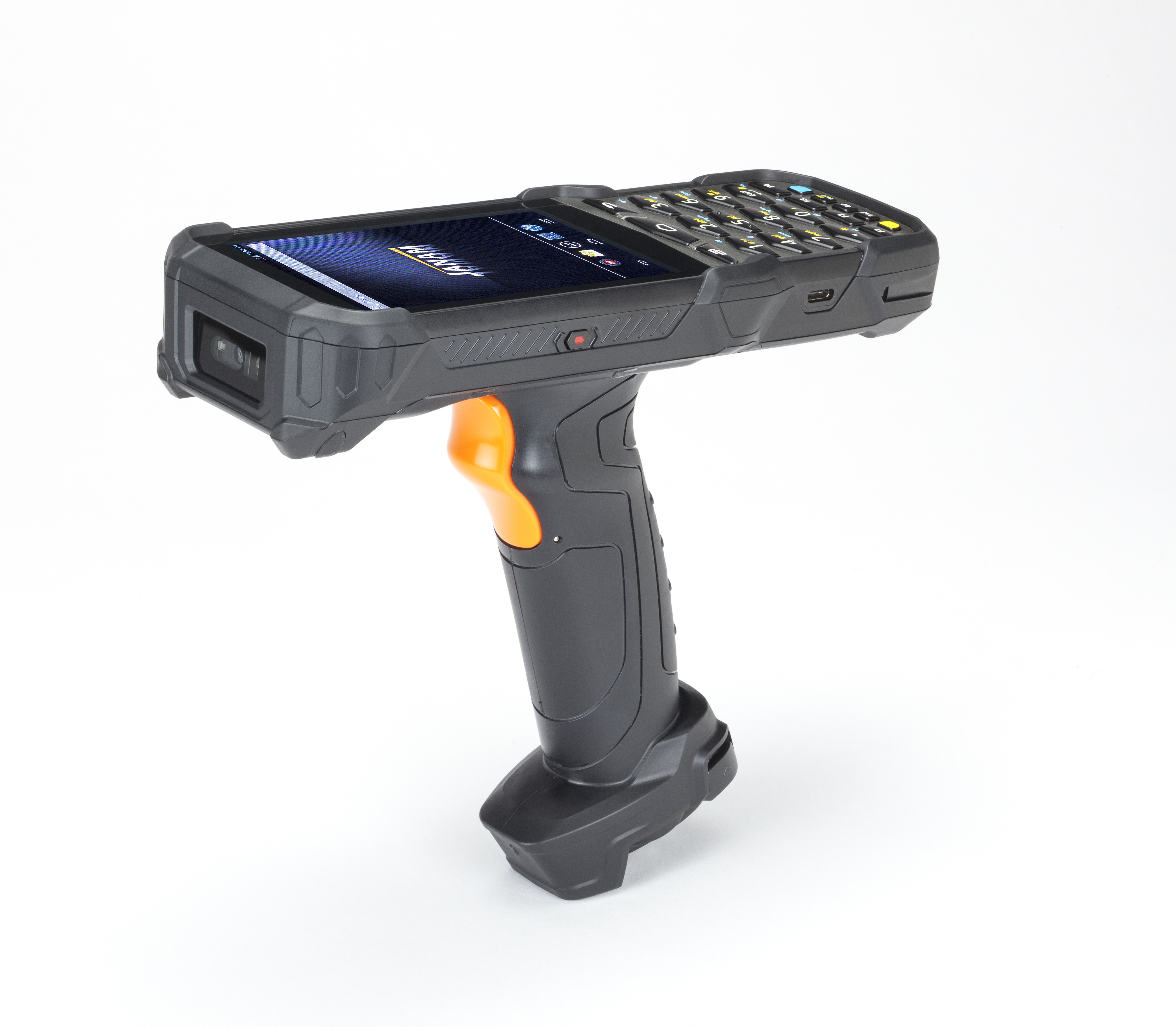

Janam’s XG200 is optimized to meet the unique requirements of warehouses, distribution centers, loading docks and other environments where rugged, gun-shaped mobile computers are deployed. With its industry-leading design, super-fast processing speed and superior barcode scanning technology, the XG200 can increase mobile worker productivity by more than 25 percent.

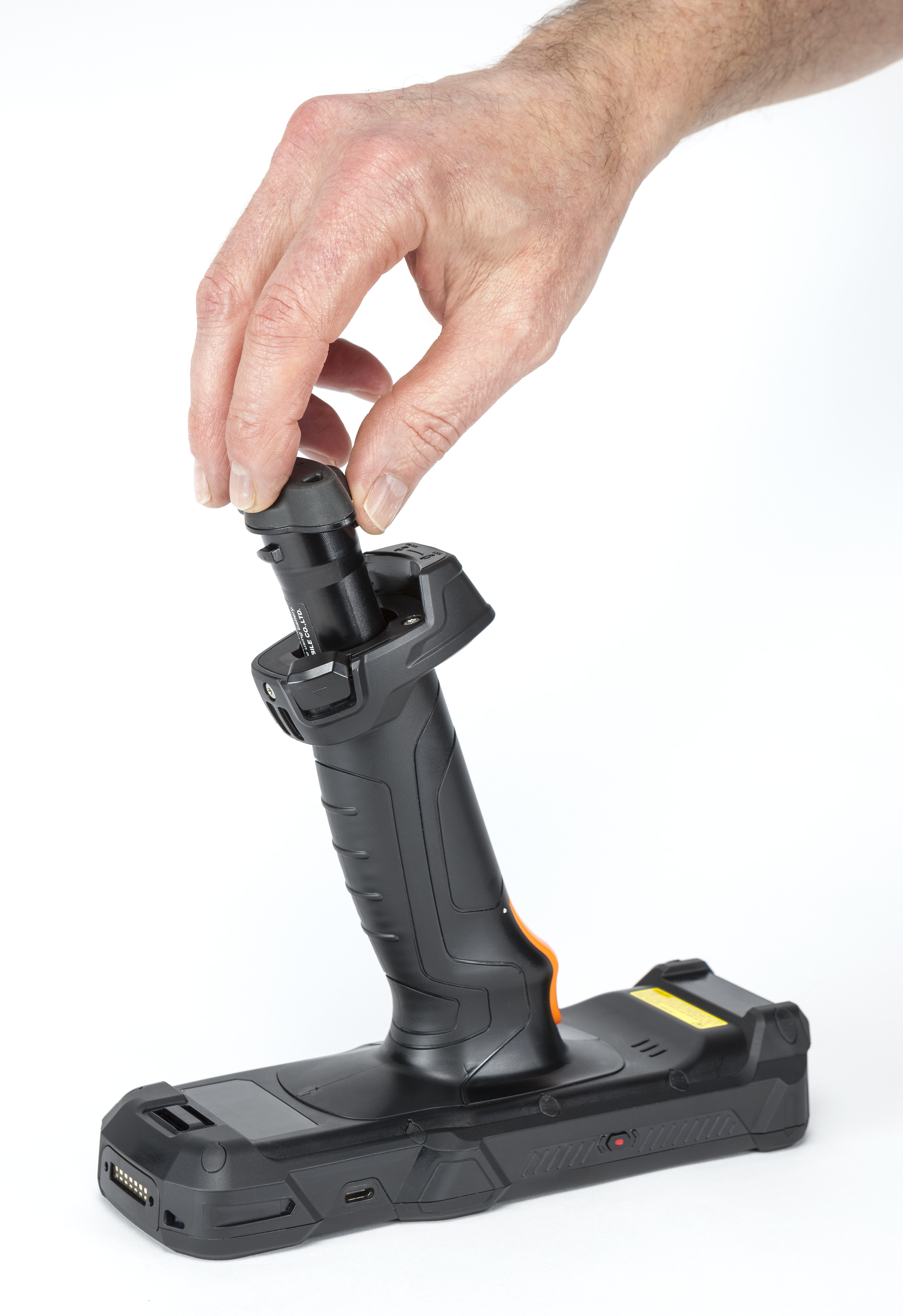

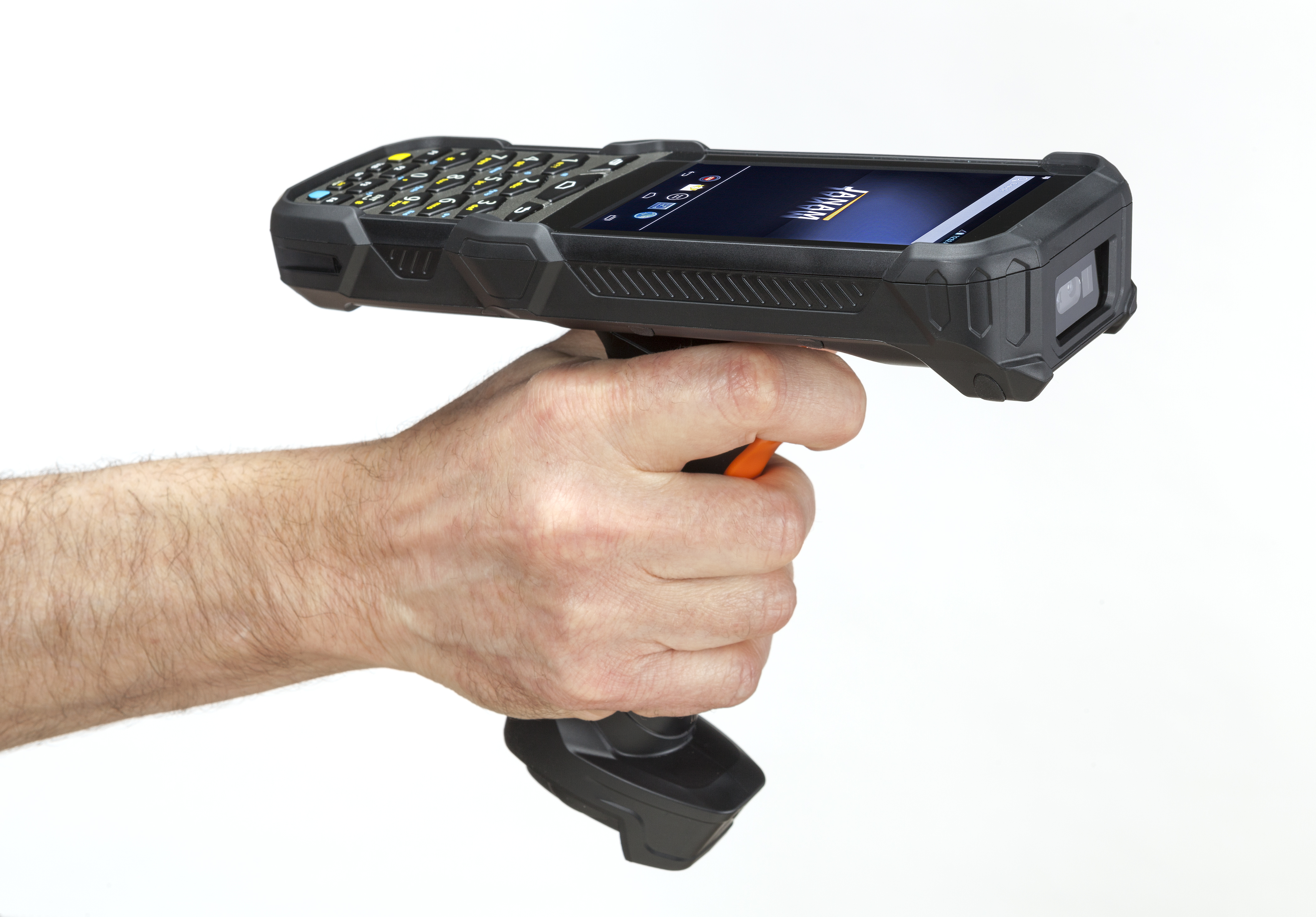

With its patented design, the XG200’s 6300mAh battery is located inside the handle, delivering a device that is incomparably light and balanced in the hand, while also allowing users to quickly hot-swap a battery to eliminate downtime.

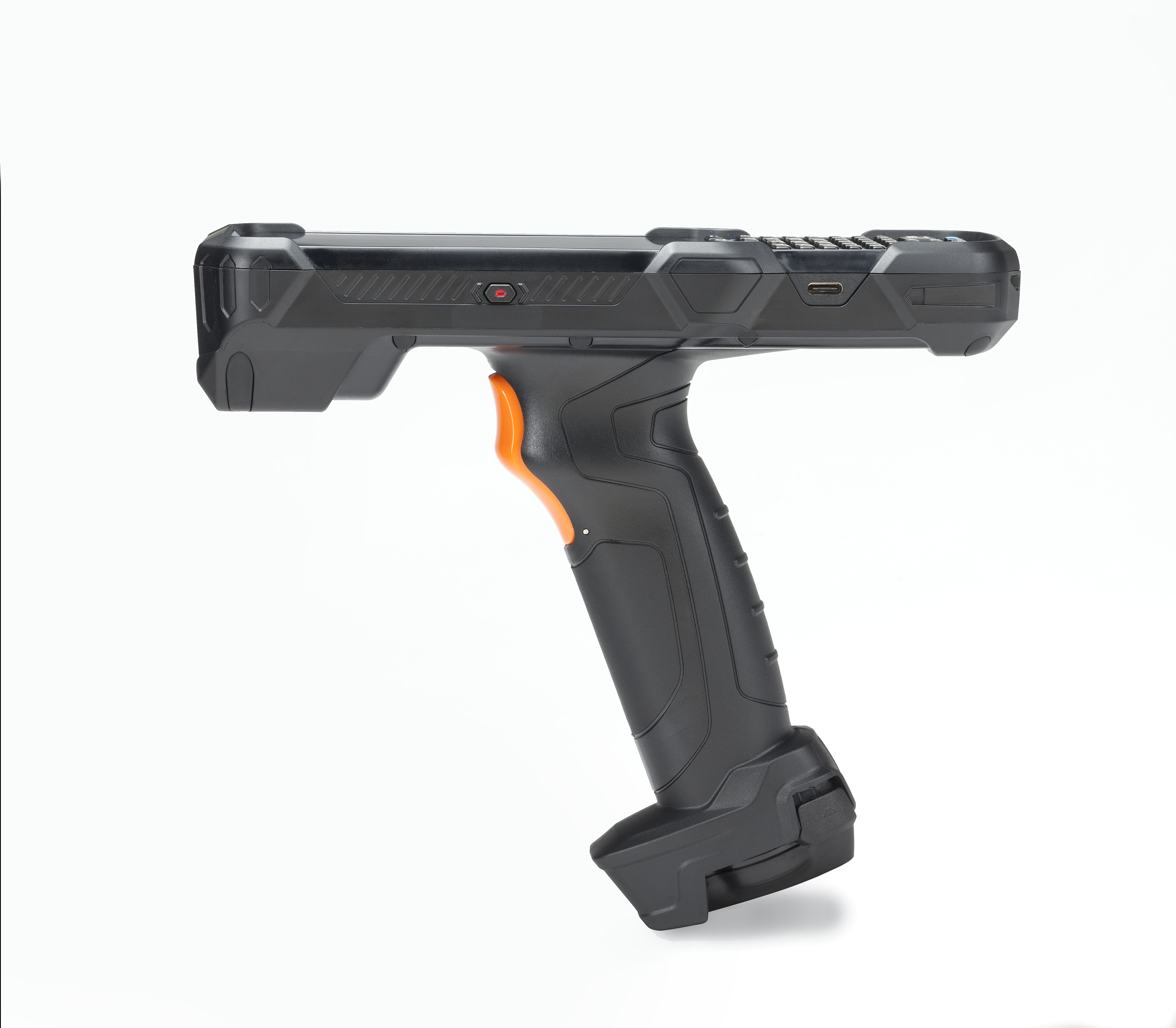

The XG200 delivers best-in-class scan speed, ultra-fast motion tolerance and excellent reading capability for poorly printed barcodes. Janam’s XG200-ER model is one of only a few devices available with Honeywell’s industry-leading EX25 near/far imager. With breakthrough auto-focus technology and barcode reading range that is 30 percent greater than competitive scanners, the XG200-ER offers unparalleled flexibility to read virtually any kind of 1D and 2D barcode, omni-directionally, from six inches out to more than 50 feet.

Specifications

TECHNICAL



Operating System

Android 7

Processor

1.2 GHz Qualcomm Snapdragon™ 410 quad-core

Memory

2GB/16GB

Power

6300mAh 3.63v rechargeable Li-ion battery

PHYSICAL



Dimensions

8.05” L x 3.11” W x 6.88” D / 204.55mm L x 79mm W x 175mm D

Weight

20.67oz / 586g including battery

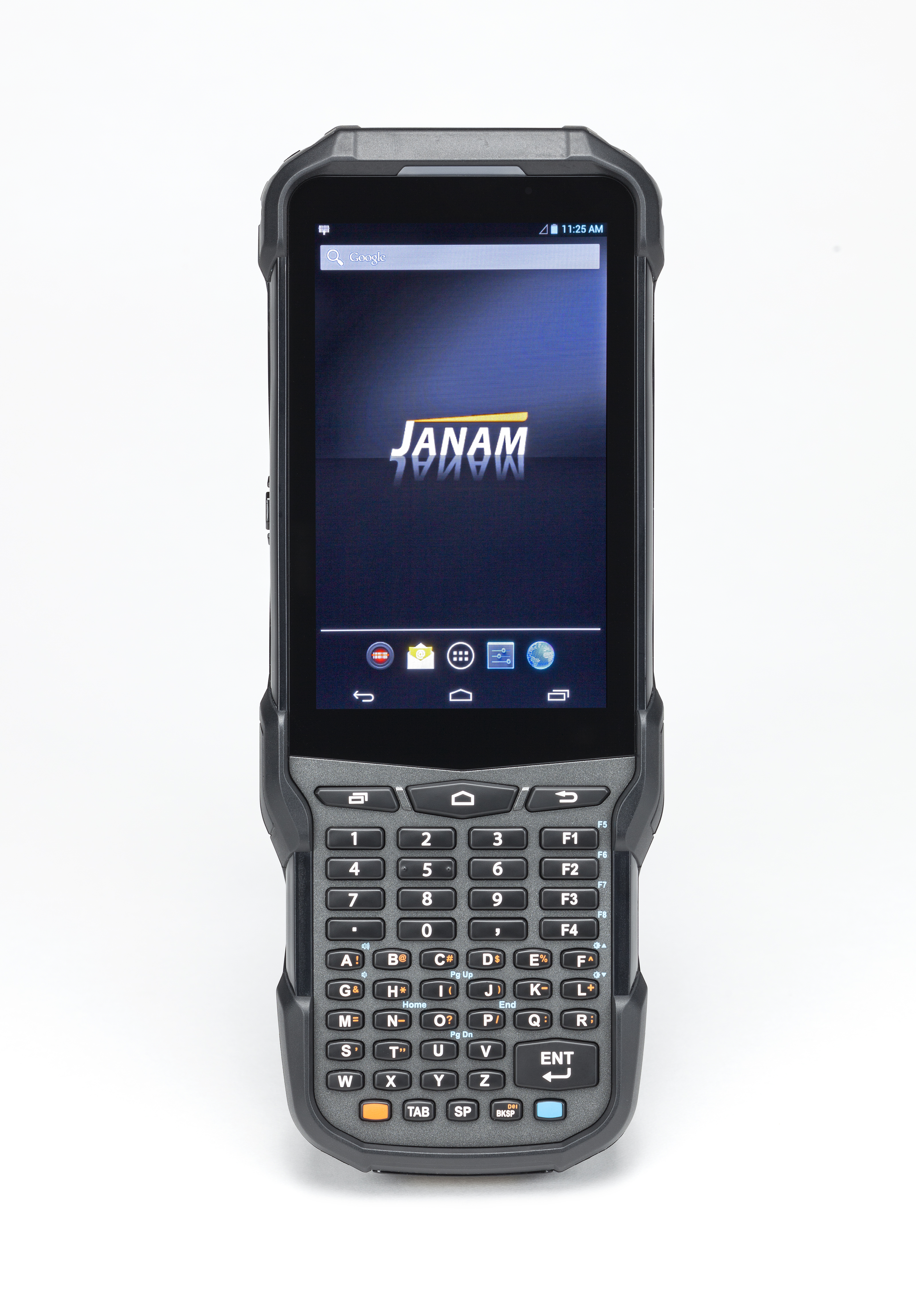

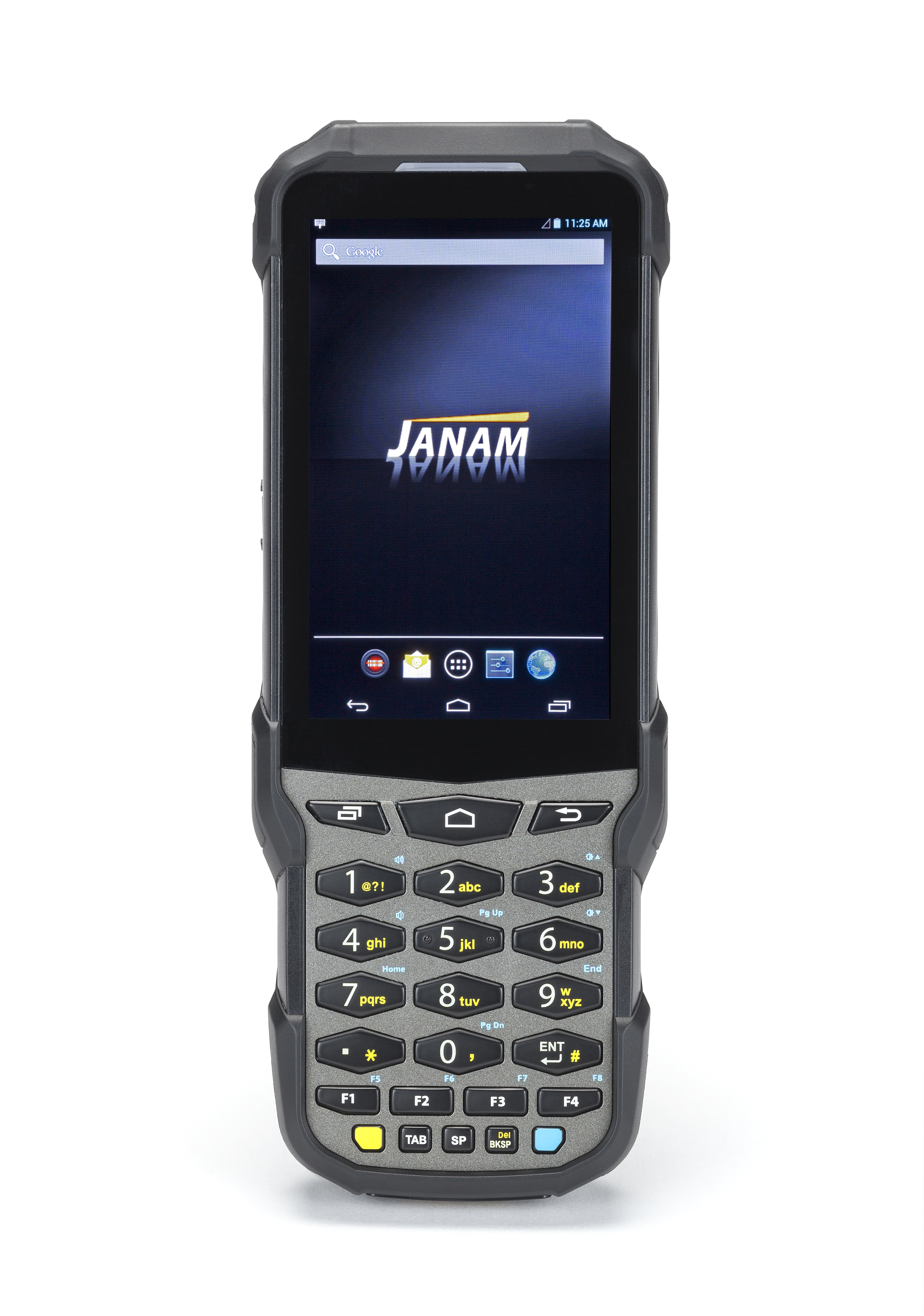

Keypad 24-Key Numeric or 51-Key Alpha-Numeric

Display

4.3” WVGA (480 x 800 pixel) with Corning Gorilla Glass 3

Touch Panel

Multi-touch capacitive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º C

Storage Temperature

-13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete at operating temperature; Multiple 6ft / 1.8m drops to concrete at ambient temperature per MIL-STD-810G

Water & Dust

IP65

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

Speaker

Alerts

Vibration; LED indicators

Connectors

USB Type C v. 2.0

LED Indicators

Dual-color LED indicators

Motion Sensor Accelerometer

DATA CAPTURE



Imager

Honeywell N6603ER 2D Imager or Honeywell EX25 near/far imager

NETWORK COMMUNICATION



WLAN

802.11a/b/g/n/d/h/i/k/r/v

Security

IEEE802.11; WEP; WPA/WPA2 Personal;
WPA/WPA2 Enterprise; RC4 Algorithm / TKIP;
RC4 Algorithm / AES, Rijndael Algorithm;
EAP-FAST; EAP-TLS; EAP-TTLS; PEAP-GTC;
PEAP-MSCHAPv2; PEAP-TLS; LEAP; CCX v4 supported

WPAN

Bluetooth v4.1
Supports HFP1.7 and HSP1.2

ACCESSORIES

Single-slot cradle kit (Ethernet; Charging)

Spare battery
Six-slot battery charging kit

SAFETY/REGULATORY



Safety

IEC 60950; EMC; RF; SAR; LED; Laser

Radio

FCC; IC; CE

Environment

RoHS and WEEE compliant

                                           Specifications Subject to Change.
