XG3-ER

Go the Distance.

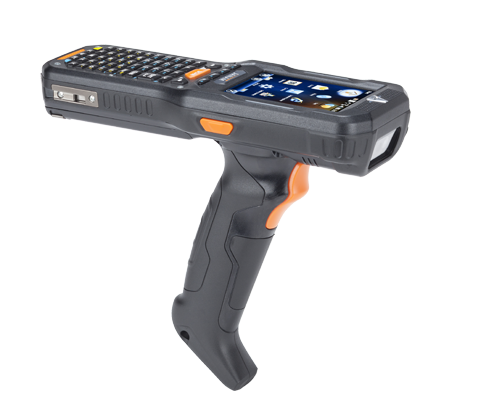

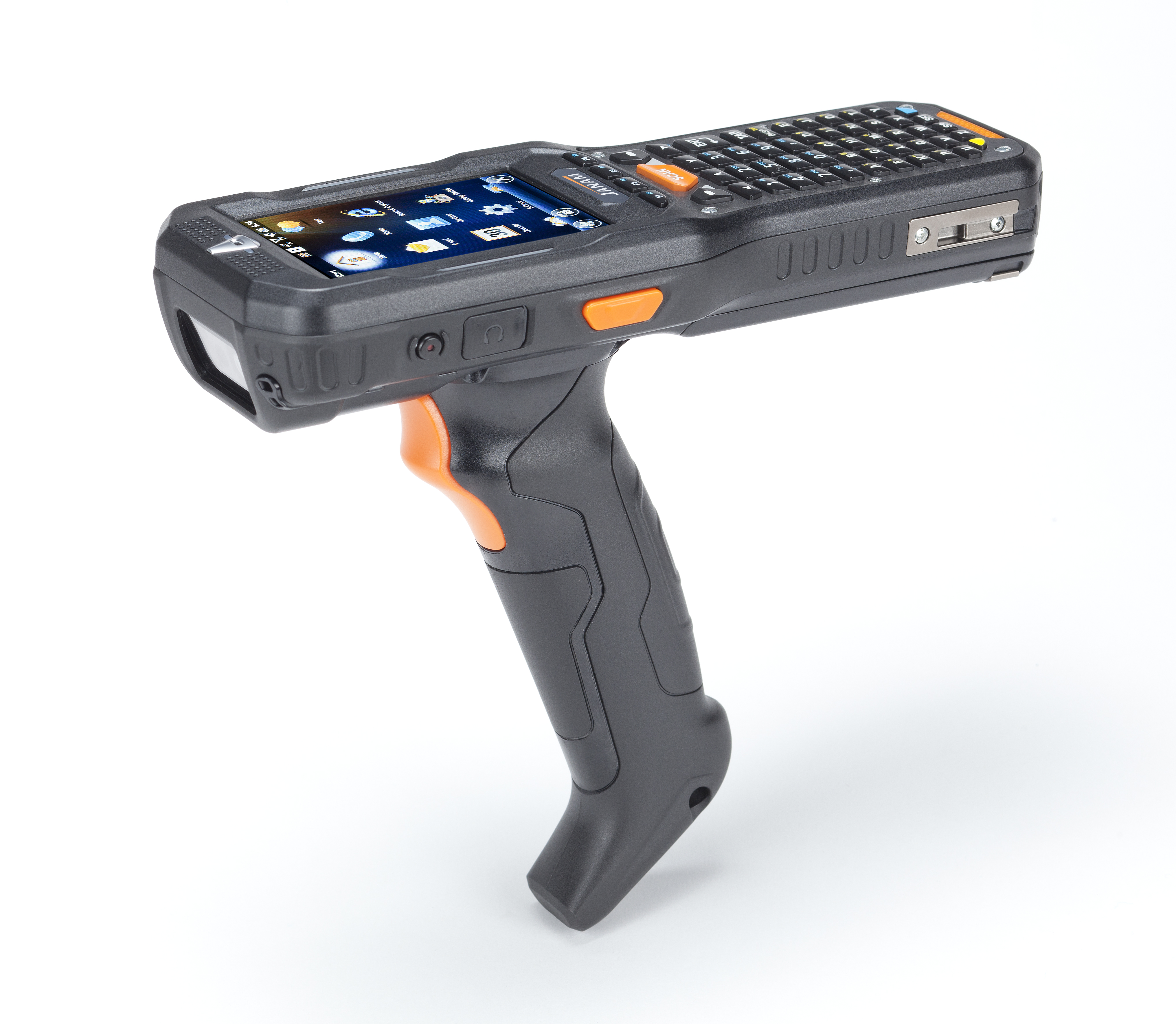

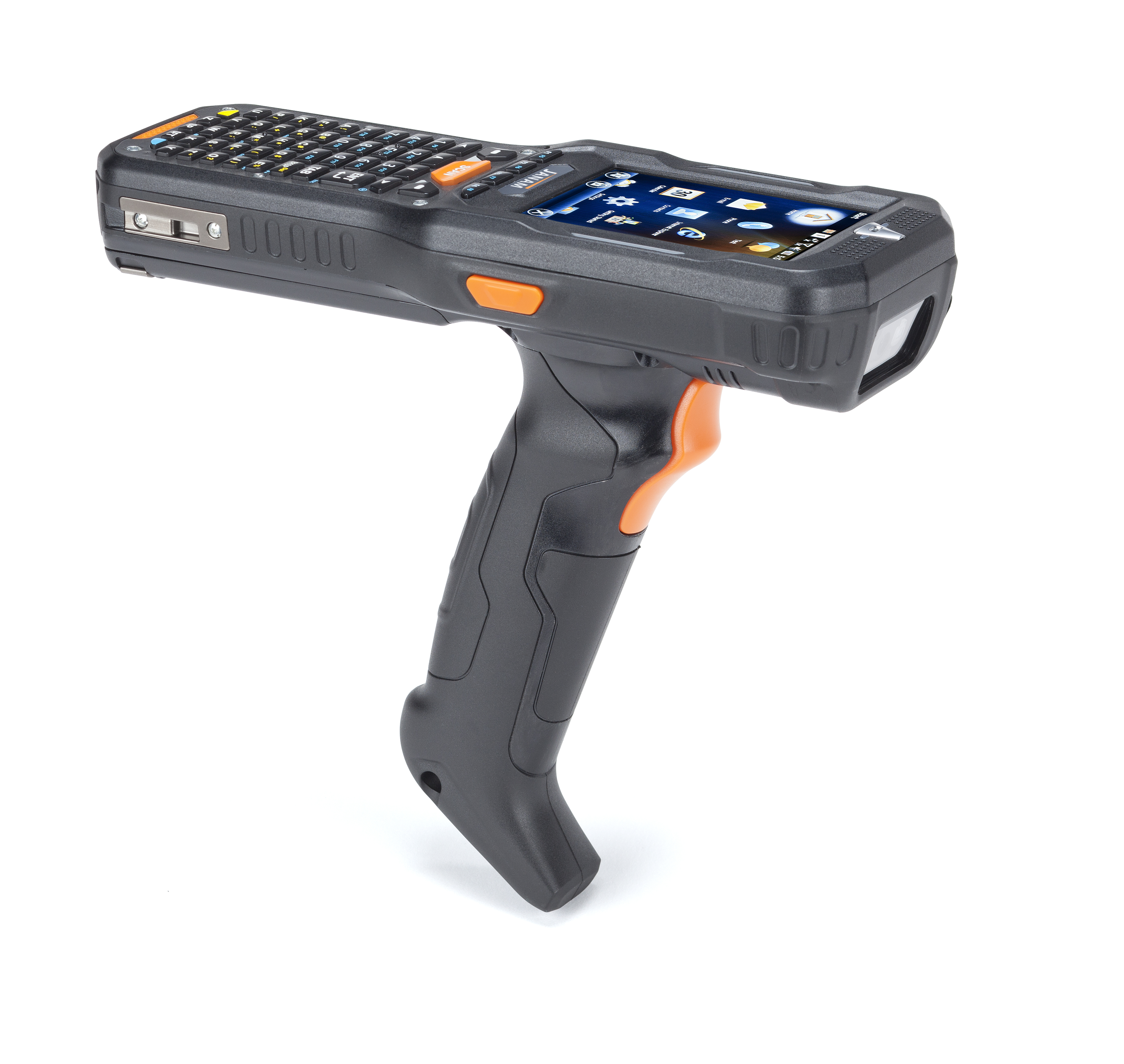

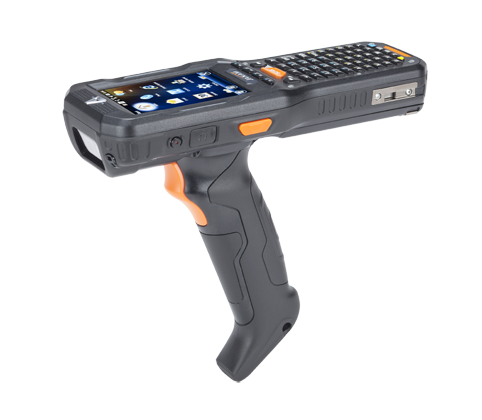

The XG3-ER combines the winning features of Janam’s XG3 next-generation, gun-shaped, rugged mobile computer with industry-leading long-range scanning technology. Equipped with the powerful Intermec EX25 near/far imager, the XG3-ER delivers breakthrough auto-focus technology that enables it to read virtually any kind of 1D and 2D barcode from 6 inches to more than 50 feet away.

The XG3-ER provides accurate, motion-tolerant scanning when lighting conditions are dim or the barcodes are damaged, obscured or placed on high shelving.

Eliminating the weight and bulk associated with competitive devices, the XG3-ER is the lightest industrial-grade mobile computer in its class. With its pistol grip ergonomically designed for user comfort, the XG3-ER is optimized for scan-intensive, extended-shift use.

Janam’s XG3-ER rugged mobile computer is certified for use in hazardous environments, sealed to IP65 standards and survives repeated 6’ drops to concrete. It’s technology at work






Specifications
TECHNICAL
Operating System Android™ or Microsoft® Windows® Embedded Handheld 6.5
Processor ARM Cortex-A8 CPU @1GHz
Memory 512MB RAM/1GB ROM
Expansion User-accessible microSD card slot
Power 5200mAh rechargeable and hot-swappable Li-ion battery
PHYSICAL
Dimensions 7.4” H x 3.1” W x 8.3” L / 188mm H x 79mm W x 211mm L
Weight 21.7oz / 643.5g including battery
Keypad

34-Key Numeric; 57-Key Alpha-Numeric

Display 3.5” Color TFT VGA; 600 NITS
Touch Panel Resistive touch screen
ENVIRONMENTAL
Operating Temperature -4º to 140º F / -20º to 60º C
Storage Temperature -40º to 158º F / -40º to 70º C
Humidity 95% RH (no condensation)
Drop Multiple 6ft / 1.8m drops to concrete on all sides across a wide temperature range
Water & Dust IP65
Electro Static Discharge (ESD) +/- 15kVdc air; +/- 8kVdc contact
INTERFACE FEATURES
Communication Port USB 2.0
Audio Speaker; Microphone; 3.5mm headset jack; Supports VoIP
Alerts Vibration; LED indicators; audio beep
LED Indicators Tri-color indicators at top, rear and bottom
Scan Triggers Pistol-grip trigger (located on handle, side and top)
DATA CAPTURE
Imager Intermec EX25 Near/Far 2D Imager
Scanning Performance Capable of scanning 1D and 2D barcodes from 6 in to 50 ft (5.2 cm to 15.2 m)
DATA COMMUNICATION
WLAN 802.11a/b/g/n
WLAN Security Authentication: EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP)Encryption: WPA2 (AES-CCMP), WPA (TKIP), WEP
WPAN Bluetooth v2.1 with EDR
ACCESSORIES
Single-Slot USB Cradle Kits, Single-Slot Ethernet Cradle Kits, Four-Slot Charge Only Cradle Kits, Four-Slot Battery Charger
SAFETY/REGULATORY
Safety CSA C22.2 No.60950-1-03; UL60950; EN60950-1; EN60825
EMI FCC Part 15B
RF FCC Part 15B and 15C, RSS-210, ICES-003
Hazardous Locations  UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D
Specifications Subject to Change.

Accessories

Cradle Kits

  • Power Supply for Single-Slot Cradle

    Power Supply for Single-Slot Cradle

    (PK-G1-003)
    Includes US Adapter
  • Vehicle Charging Cradle

    Vehicle Charging Cradle

    (VKT-G1-003HW)
  • XG3 Single-Slot Ethernet Cradle Kit

    XG3 Single-Slot Ethernet Cradle Kit

    (CKT-G1-003E)
    Includes cradle and power supply.
  • XG3 Single-Slot USB/Serial Cradle Kit

    XG3 Single-Slot USB/Serial Cradle Kit

    (CKT-G1-003U)
    Includes cradle and power supply.
  • XG3 Four-Slot Charge-Only Cradle Kit

    XG3 Four-Slot Charge-Only Cradle Kit

    (CKT-G4-003C)
    Includes cradle and power supply.

Cables

  • USB Cable

    USB Cable

    (CAB-J-003U)
  • USB Host Cable

    USB Host Cable

    (CAB-J-003UH)

Batteries & Chargers

  • Standard Battery

    Standard Battery

    (BAT-G2-003)
    5200mAh 3.7v
  • Spare Battery

    Spare Battery

    (BAT-G2-003)
    5200mAh 3.7V
  • Four-Slot Battery Charging Base

    Four-Slot Battery Charging Base

    (BK-G4-003)
    Includes charger and power supply.

Expanded Performance

  • Belt Mounted Holster

    Belt Mounted Holster

    (HL-G-003)
  • Handstrap

    Handstrap

    (HS-G-003)
  • Charging Adapter

    Charging Adapter

    (VKT-G1-003VC)
    For use with XG3 Vehicle Charging Cradle (VKT-G1-003HW)
  • Vehicle Holder

    Vehicle Holder

    (VKT-G1-003VH)
  • XG3 Heated Operating Case

    XG3 Heated Operating Case

    (HL-G-003H)
Resources

Product files and documents


XG3-ER Specifications PDF file, 157.26 KB
XG3 User Manual PDF file, 5.03 MB
XG3-ER Datasheet PDF file, 260.63 KB
XG3-ER Datasheet_Arabic PDF file, 887 KB
XG3-ER Datasheet_German PDF file, 821.2 KB
XG3-ER Datasheet_Italian PDF file, 839.18 KB
XG3-ER Datasheet_Russian PDF file, 681.2 KB
XG3-ER Datasheet_Spanish PDF file, 1.33 MB
