XG3

Ergonomic design in a rugged mobile computer

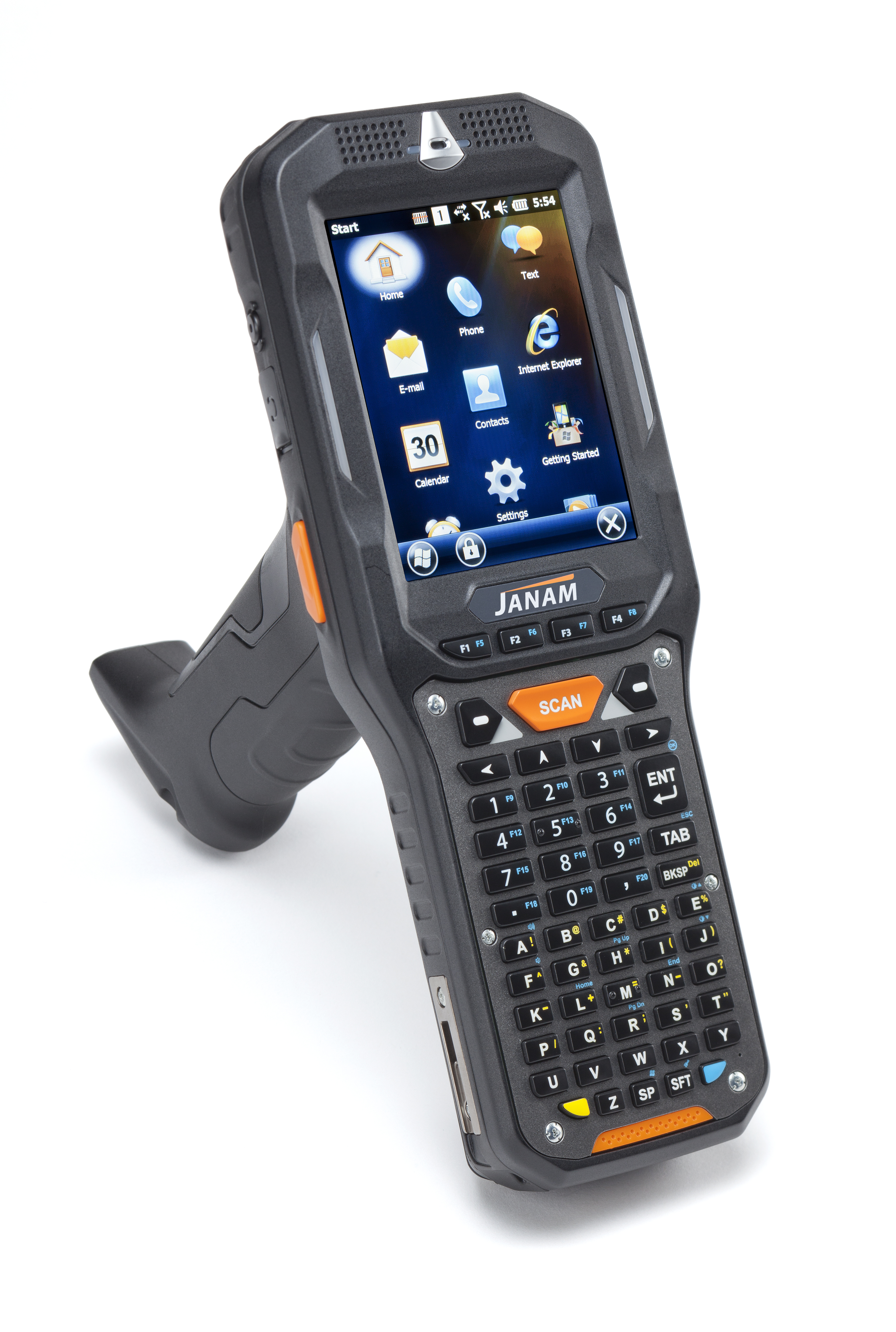

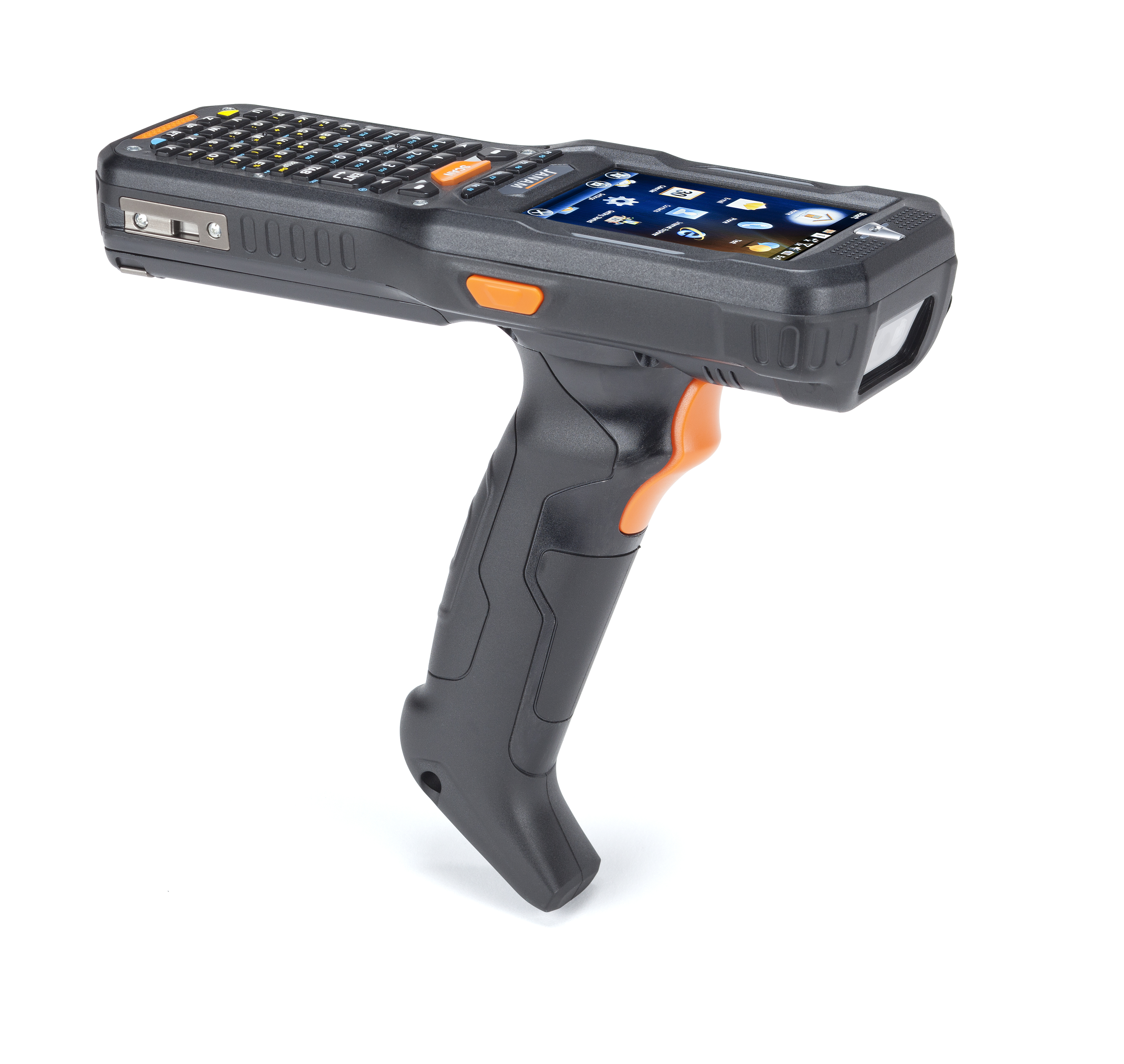

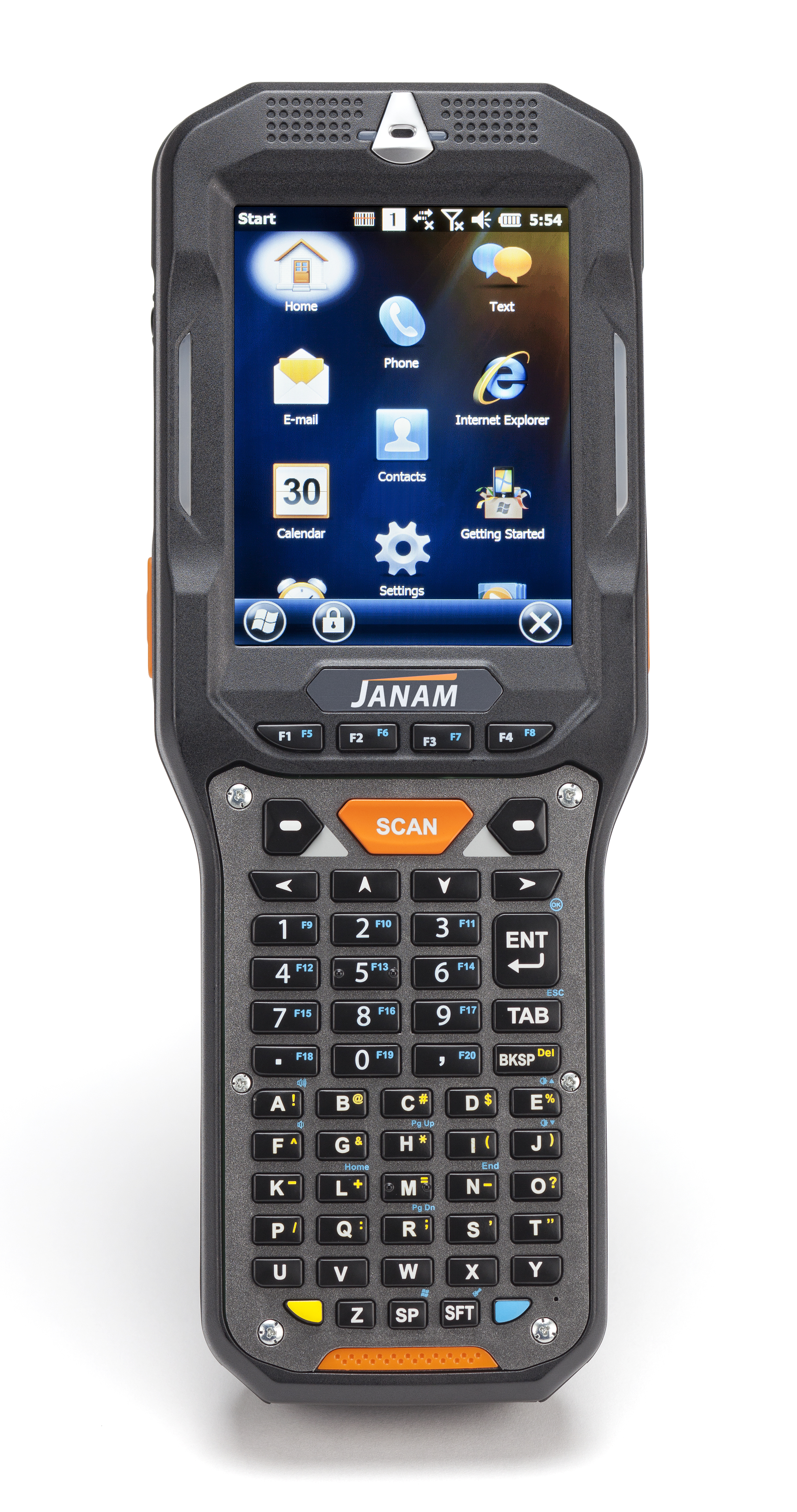

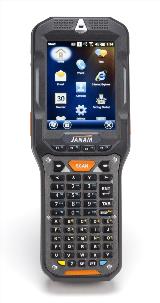

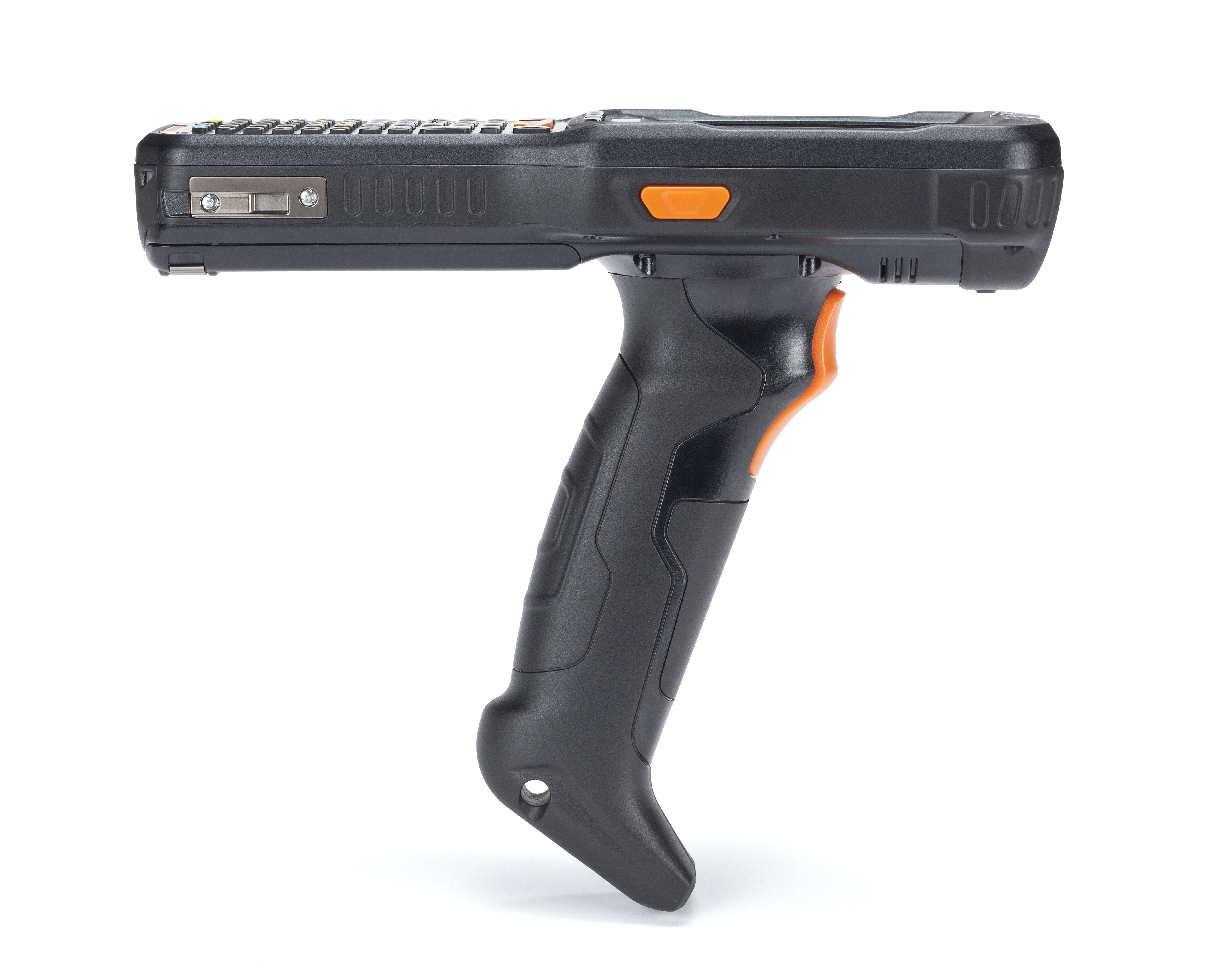

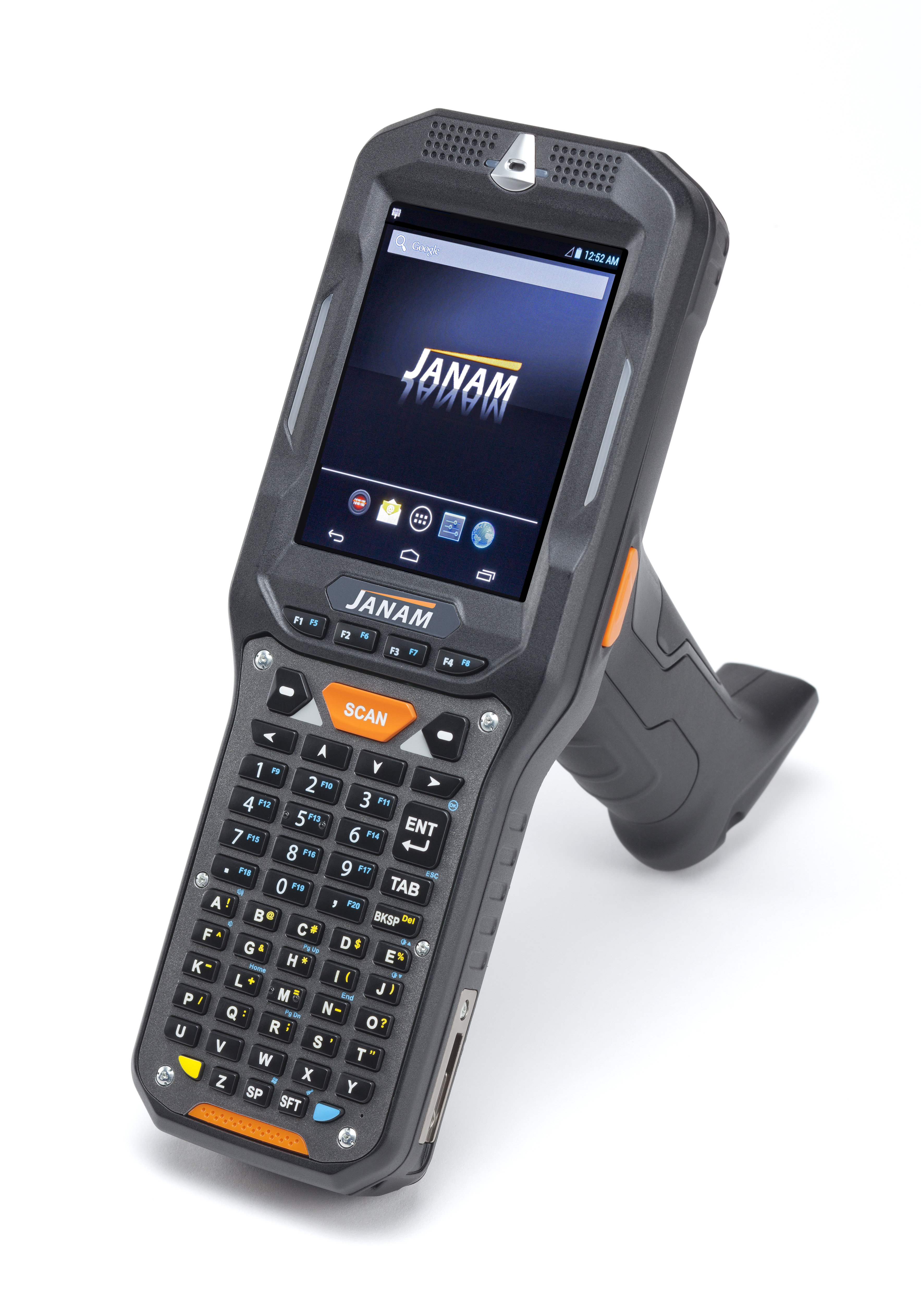

The XG3 is Janam’s next-generation, gun-shaped, rugged mobile computer designed to excel in the most challenging environments. Eliminating the weight and bulk associated with competitive devices, Janam’s XG3 is the lightest industrial-grade mobile computer in its class.

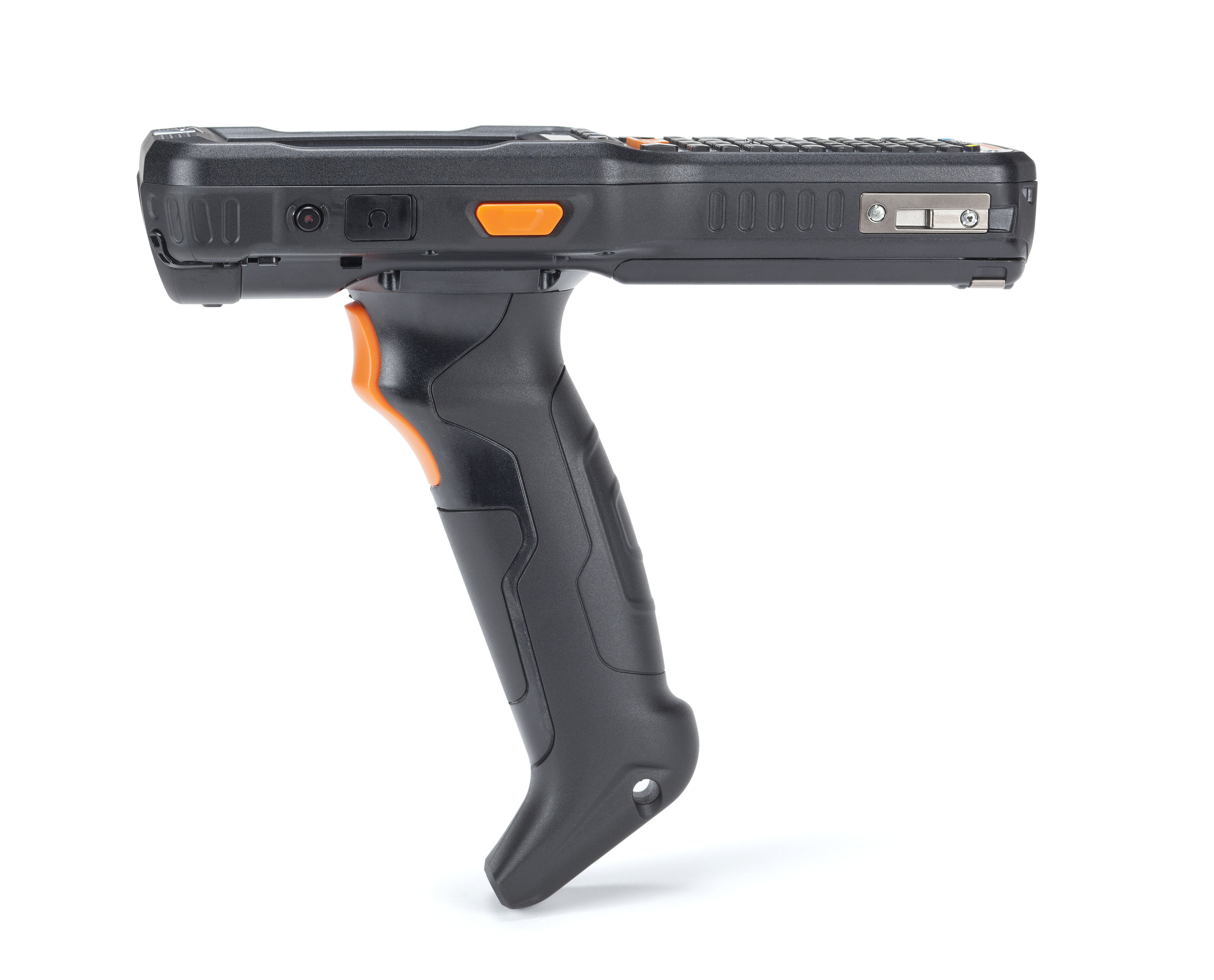

Built to withstand the rigors of all-day, every-day use in manufacturing facilities, distribution centers, plant floors, loading docks, ports and other demanding workspaces, the XG3 pairs breakthrough ergonomic design with the latest technological advancements, enabling mobile workers to increase productivity and improve operational efficiencies. With its pistol grip optimized for user comfort and a choice between Honeywell’s Adaptus® imaging technology and Zebra’s SE965 extended-range 1D laser scan engine, the XG3 is optimized for scan-intensive, extended shift use. Features include a 3.5-inch color display with hardened glass, ARM Cortex-A8 CPU @1GHz and choice of keypads to provide the performance, power efficiency and flexibility that enterprise and government customers require. The XG3 also delivers exceptional battery life with a standard 5200mAh hot-swappable Li-ion battery.

Janam’s XG3 rugged mobile computer is certified for use in hazardous environments, sealed to IP65 standards and survives repeated 6’ drops to concrete. It’s technology at work.

Specifications
TECHNICAL

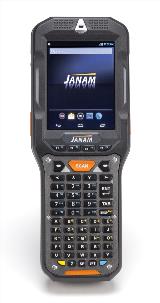

Operating System Android™ or Microsoft® Windows® Embedded Handheld 6.5
Processor ARM Cortex-A8 CPU @1GHz
Memory 512MB RAM/1GB ROM
Expansion User-accessible microSD card slot
Power 5200mAh rechargeable and hot-swappable Li-ion battery
PHYSICAL
Dimensions 7.4” H x 3.1” W x 8.3” L / 188mm H x 79mm W x 211mm L
Weight 21.7oz / 643.5g including battery
Keypad

34-Key Numeric; 57-Key Alpha-Numeric

Display 3.5” Color TFT VGA; 600 NITS
Touch Panel Resistive touch screen
ENVIRONMENTAL
Operating Temperature -4º to 140º F / -20º to 60º C
Storage Temperature -40º to 158º F / -40º to 70º C
Humidity 95% RH (no condensation)
Drop Multiple 6ft / 1.8m drops to concrete on all sides across a wide temperature range
Water & Dust IP65
Electro Static Discharge (ESD) +/- 15kVdc air; +/- 8kVdc contact
INTERFACE FEATURES
Communication Port  USB 2.0
Audio Speaker; Microphone; 3.5mm headset jack; Supports VoIP
Alerts Vibration; LED indicators; audio beep
LED Indicators Tri-color indicators at top, rear and bottom
Scan Triggers Pistol-grip trigger (located on handle, side and top)
DATA CAPTURE
Imager Honeywell N5600 with 1D/2D Adaptus® Imaging Technology; 752 x 480 pixel CMOS area imager
Laser Zebra SE965; CDRH Class II/EC Class 2; 104 (+/- 12) scan/sec (bidirectional)
DATA COMMUNICATION
WLAN 802.11a/b/g/n
WLAN Security Authentication: EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP) Encryption: WPA2 (AES-CCMP), WPA (TKIP), WEP
WPAN Bluetooth v2.1 with EDR
ACCESSORIES
Single-Slot USB Cradle Kits, Single-Slot Ethernet Cradle Kits, Four-Slot Charge Only Cradle Kits, Four-Slot Battery Charger
SAFETY/REGULATORY
Safety CSA C22.2 No.60950-1-03; UL60950; EN60950-1; EN60825
EMI FCC Part 15B
RF FCC Part 15B and 15C, RSS-210, ICES-003
Hazardous Locations  UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D
Specifications Subject to Change.

Accessories

Cradle Kits

  • XG3 Single-Slot Ethernet Cradle Kit

    XG3 Single-Slot Ethernet Cradle Kit

    (CKT-G1-003E)
    Includes cradle and power supply.
  • XG3 Single-Slot USB/Serial Cradle Kit

    XG3 Single-Slot USB/Serial Cradle Kit

    (CKT-G1-003U)
    Includes cradle and power supply.
  • XG3 Four-Slot Charge-Only Cradle Kit

    XG3 Four-Slot Charge-Only Cradle Kit

    (CKT-G4-003C)
    Includes cradle and power supply.
  • Power Supply for Single-Slot Cradle

    Power Supply for Single-Slot Cradle

    (PK-G1-003)
    Includes US Adapter
  • Vehicle Charging Cradle

    Vehicle Charging Cradle

    (VKT-G1-003HW)

Cables

  • USB Cable

    USB Cable

    (CAB-J-003U)
  • USB Host Cable

    USB Host Cable

    (CAB-J-003UH)

Batteries & Chargers

  • Spare Battery

    Spare Battery

    (BAT-G2-003)
    5200mAh 3.7V
  • Four-Slot Battery Charging Base

    Four-Slot Battery Charging Base

    (BK-G4-003)
    Includes charger and power supply.
  • Standard Battery

    Standard Battery

    (BAT-G2-003)
    5200mAh 3.7v

Expanded Performance

  • Belt Mounted Holster

    Belt Mounted Holster

    (HL-G-003)
  • Handstrap

    Handstrap

    (HS-G-003)
  • Charging Adapter

    Charging Adapter

    (VKT-G1-003VC)
    For use with XG3 Vehicle Charging Cradle (VKT-G1-003HW)
  • Vehicle Holder

    Vehicle Holder

    (VKT-G1-003VH)
  • XG3 Heated Operating Case

    XG3 Heated Operating Case

    (HL-G-003H)
Resources

Product files and documents


Quick Start Guide for XG3 PDF file, 1.69 MB
XG3 User Manual PDF file, 5.03 MB
XG3 Specifications PDF file, 147.42 KB
XG3 Datasheet PDF file, 276.06 KB
XG3 Datasheet_Arabic PDF file, 671.68 KB
XG3 Datasheet_German PDF file, 941.89 KB
XG3 Datasheet_Italian PDF file, 952.34 KB
XG3 Datasheet_Spanish PDF file, 626.3 KB
XG3 Datasheet_Russian PDF file, 943.55 KB
