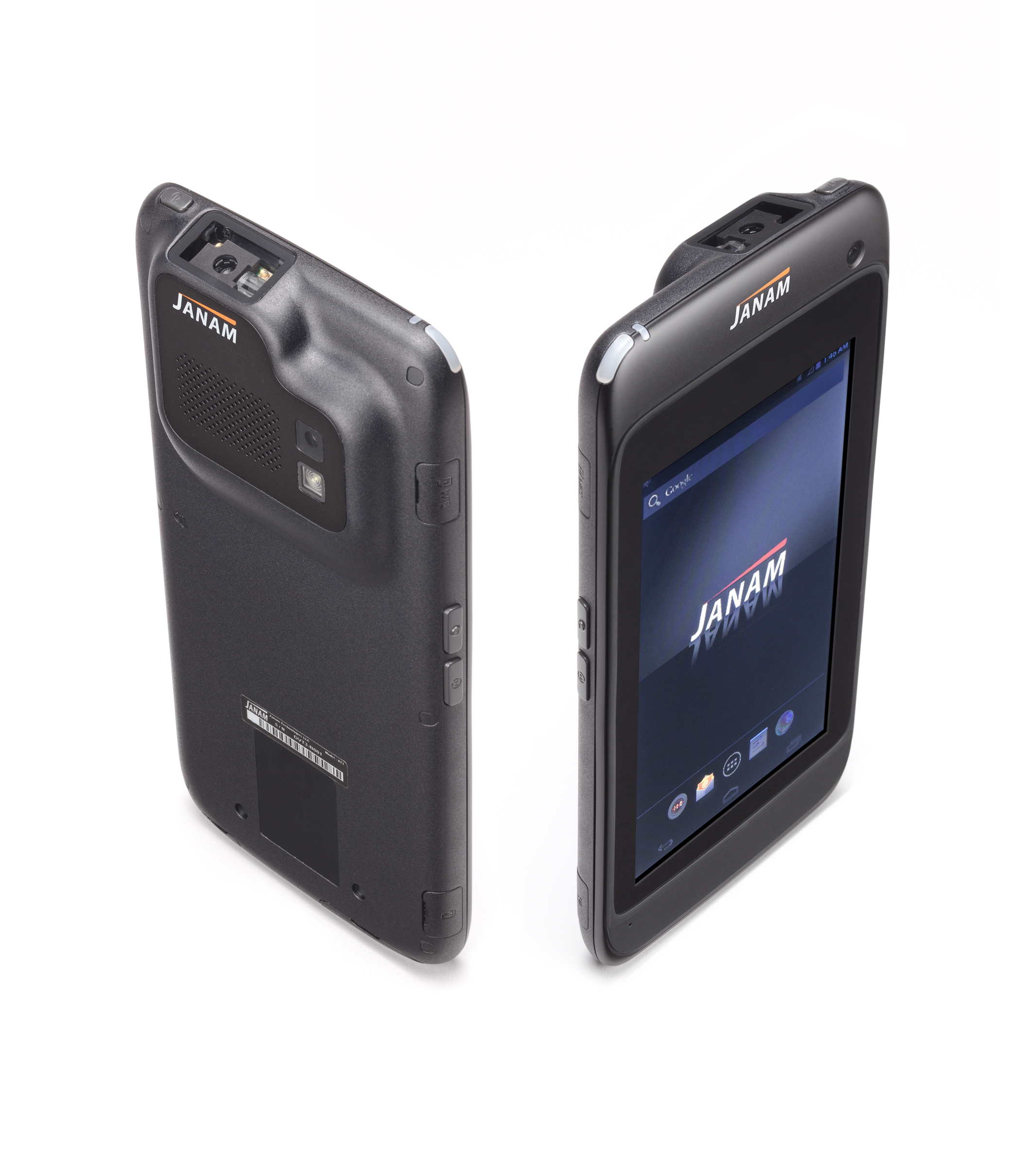

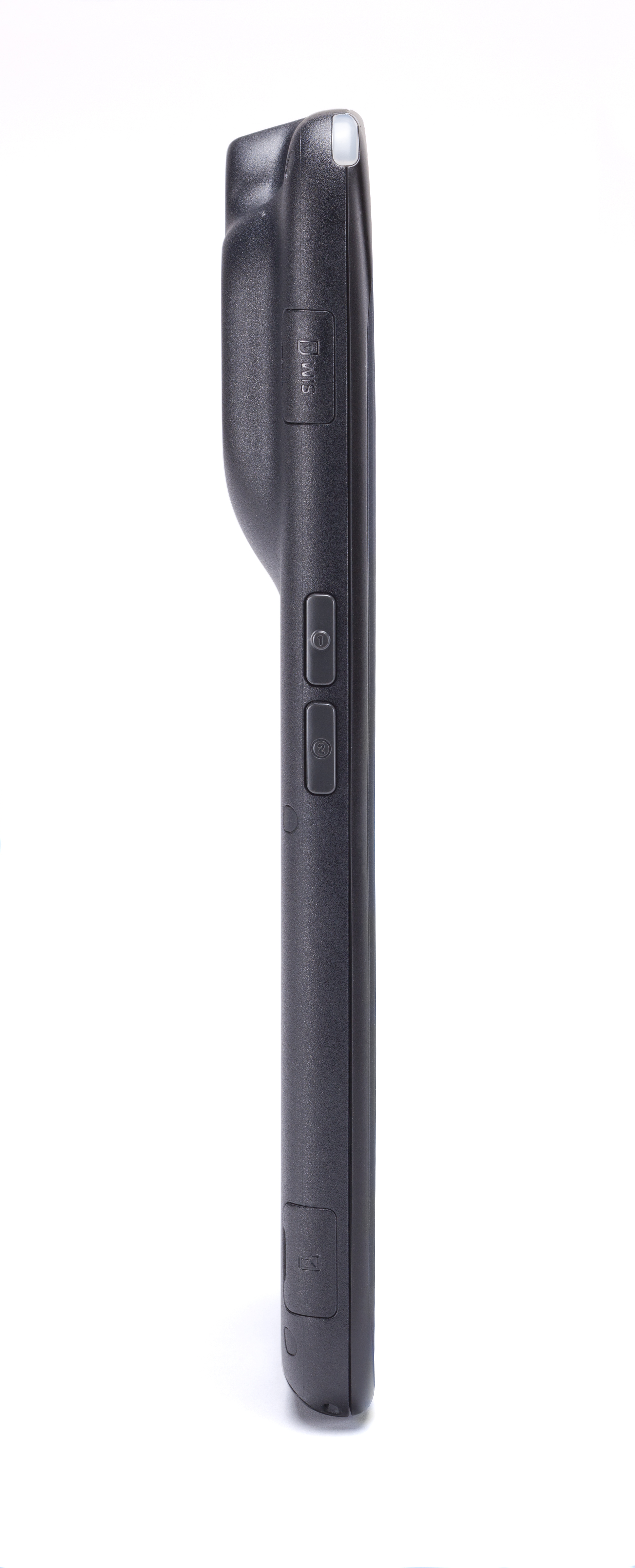

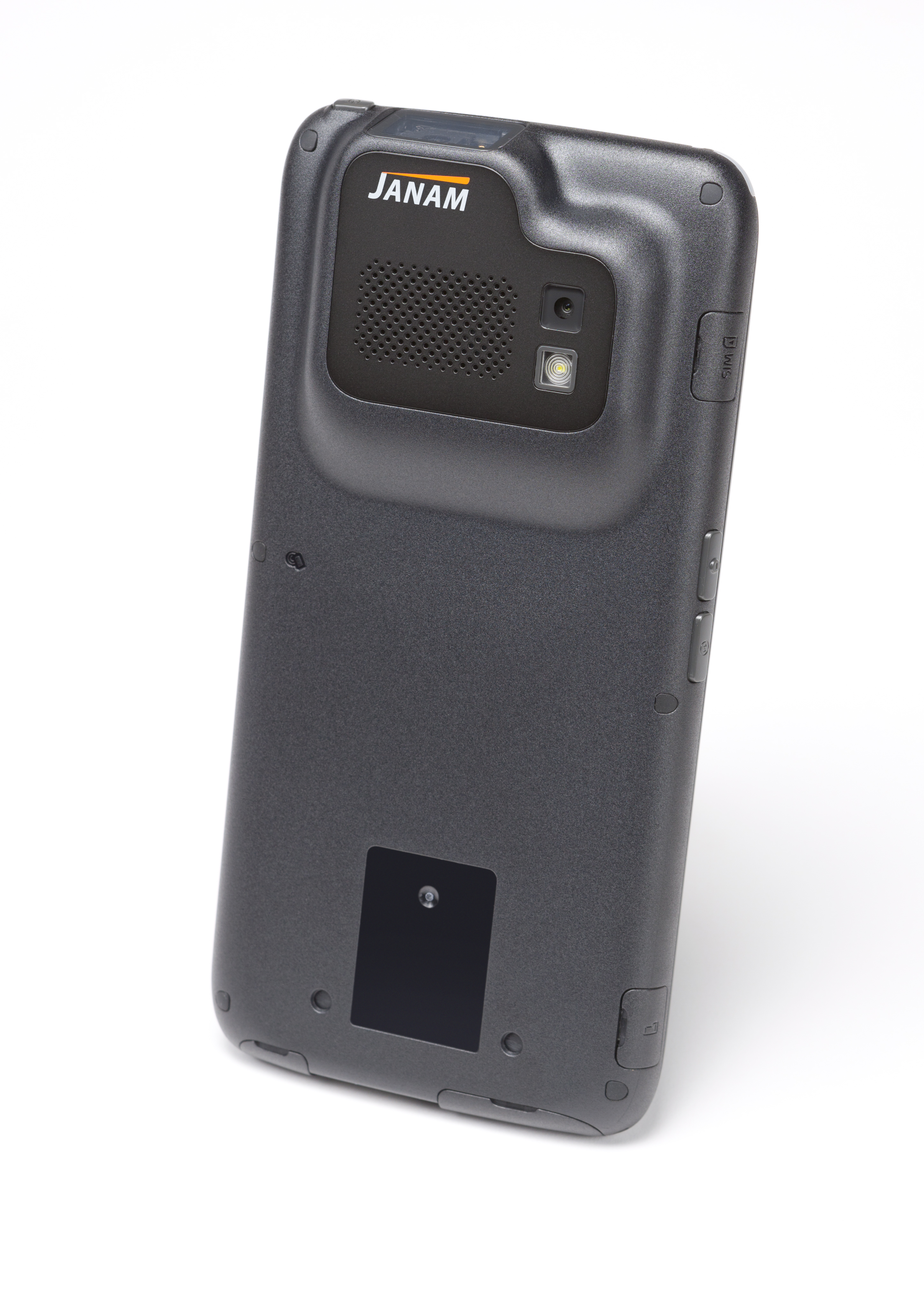

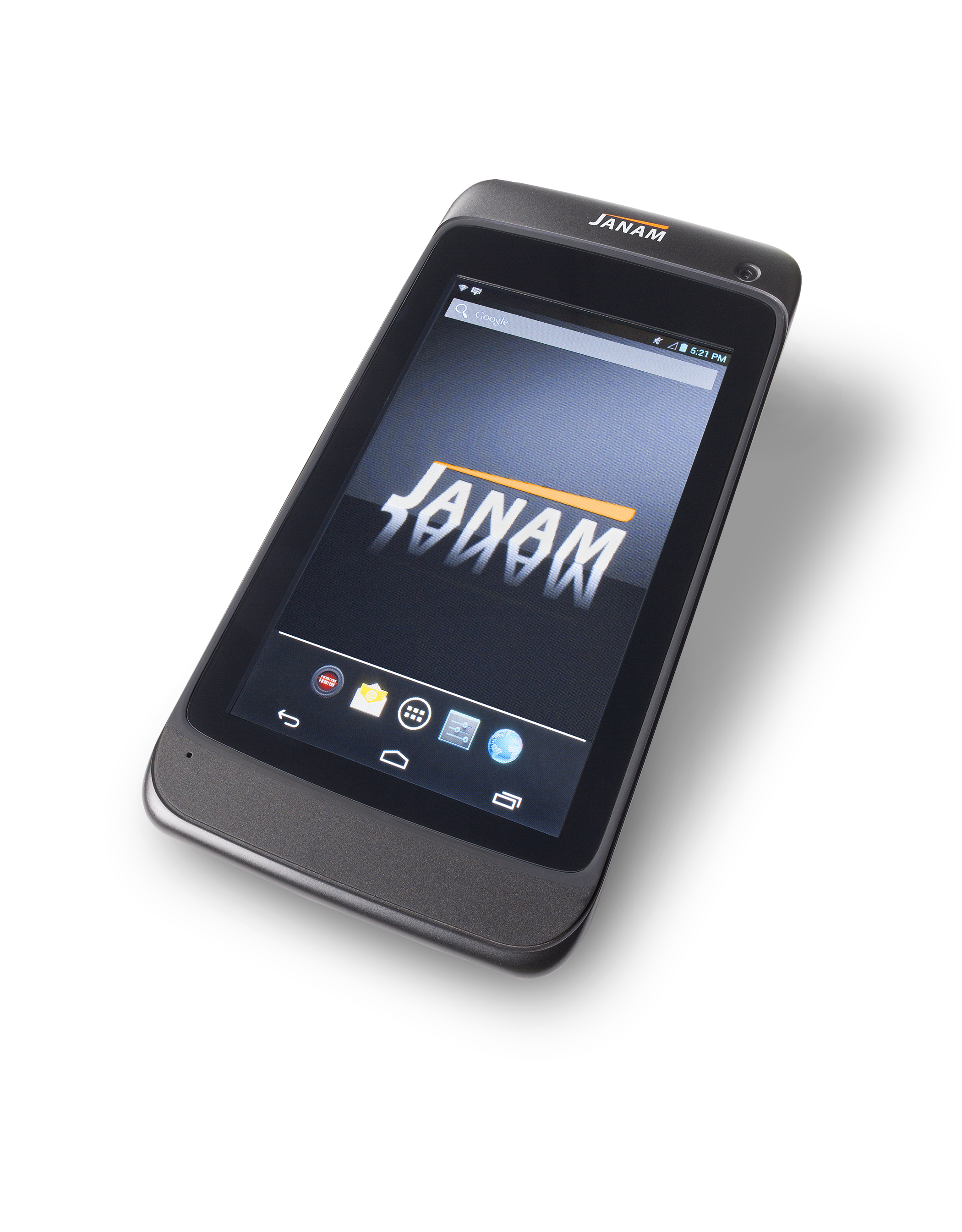

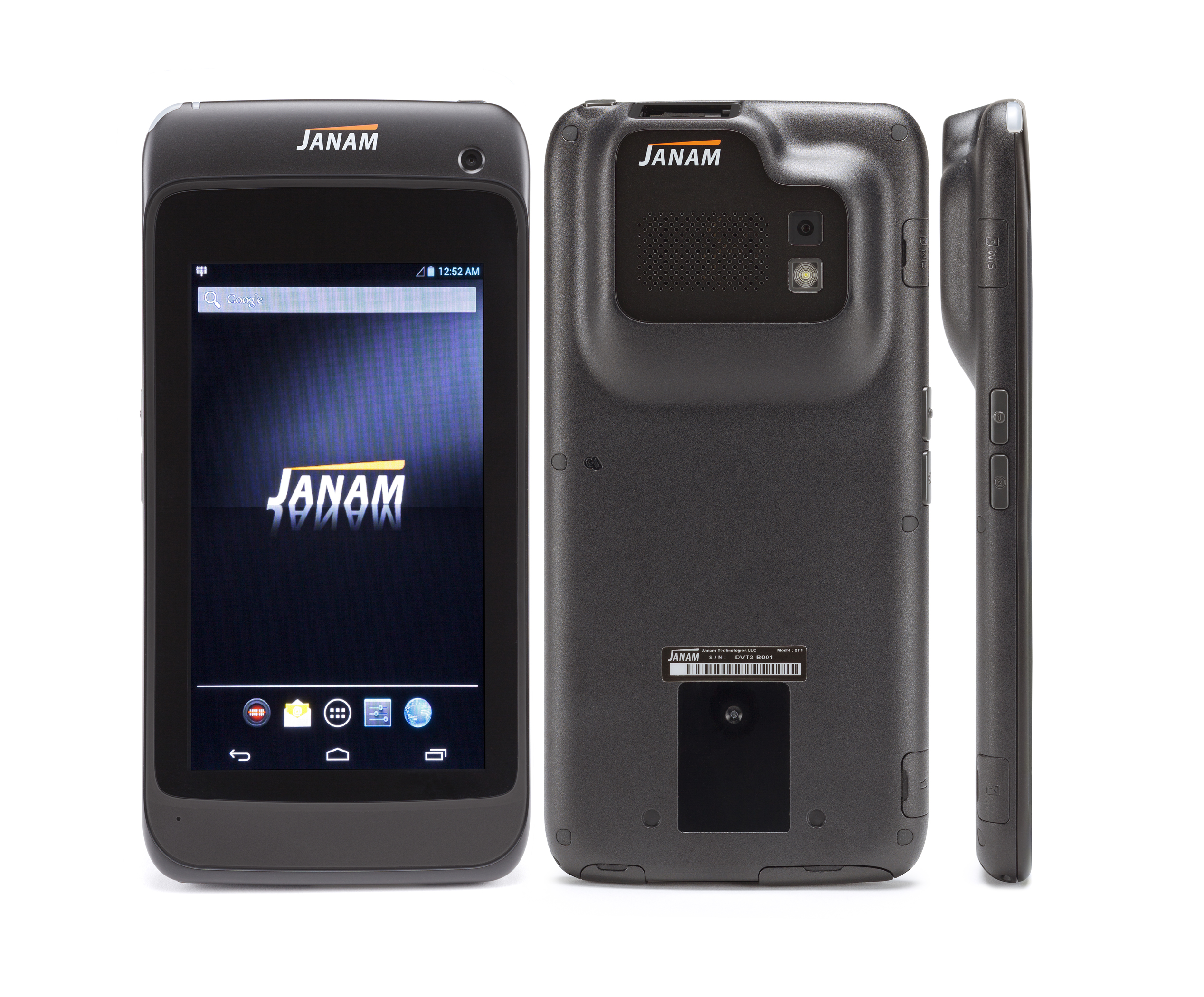

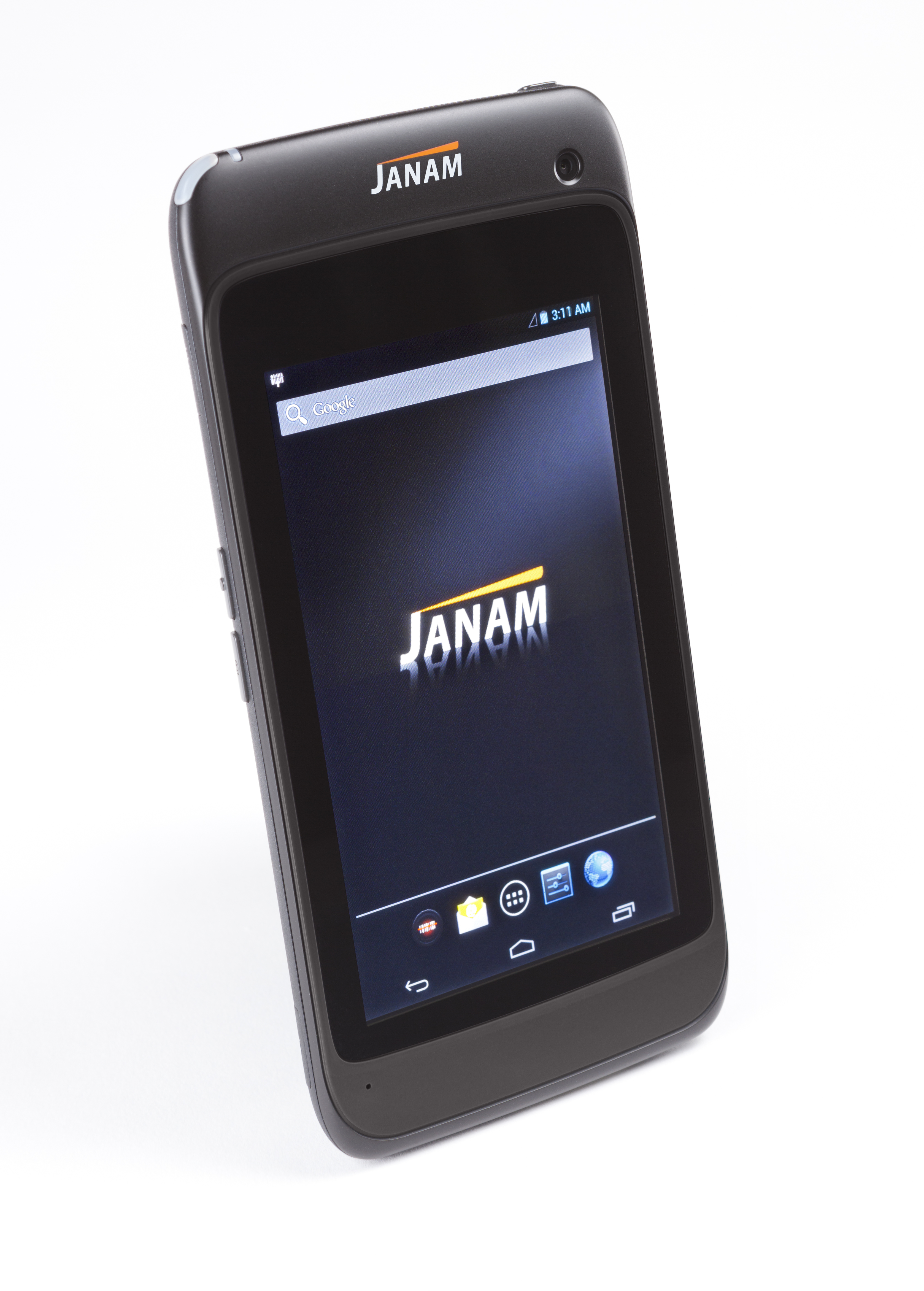

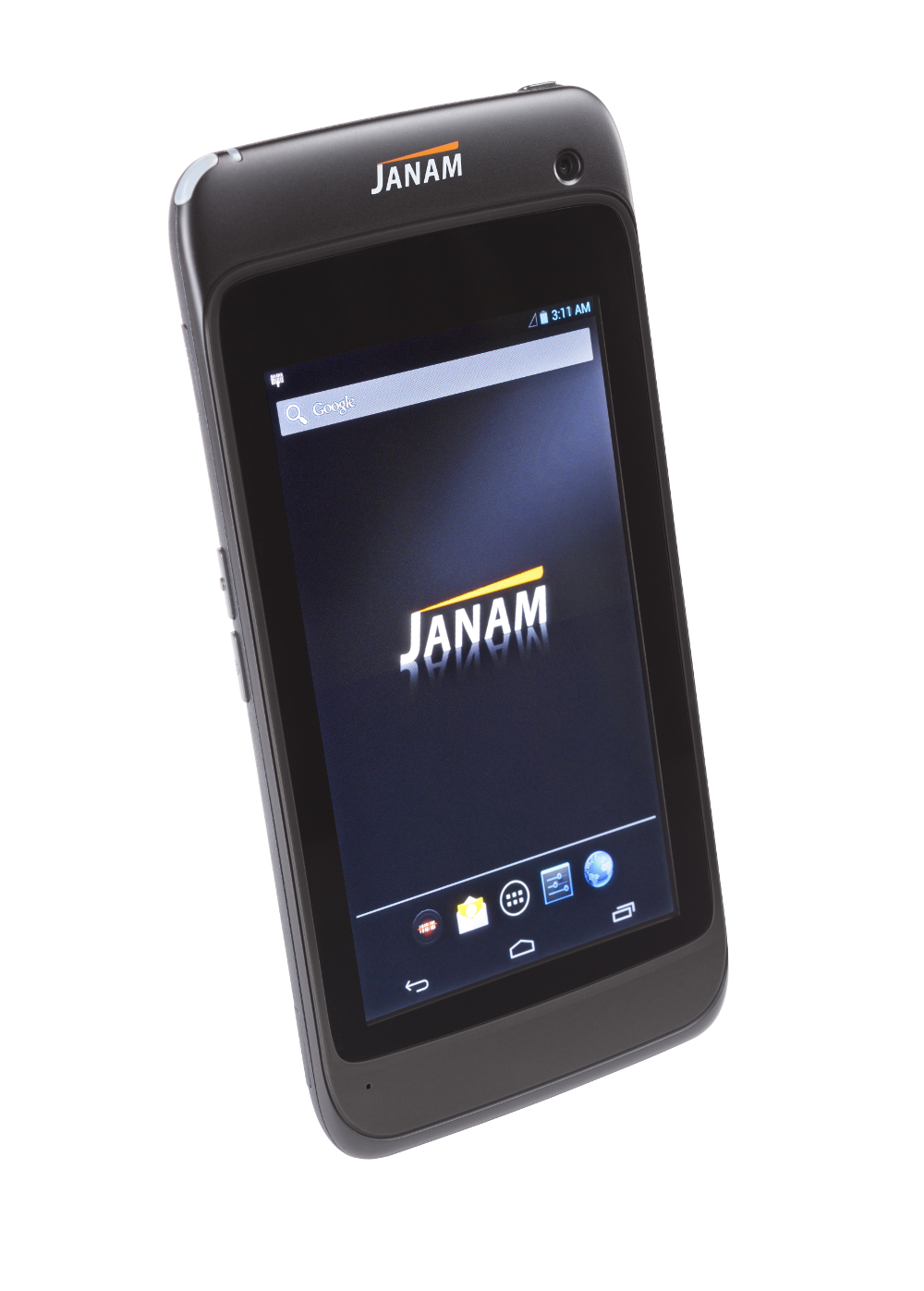

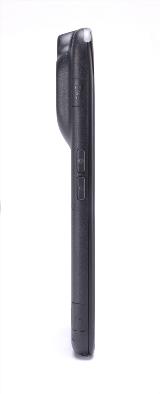

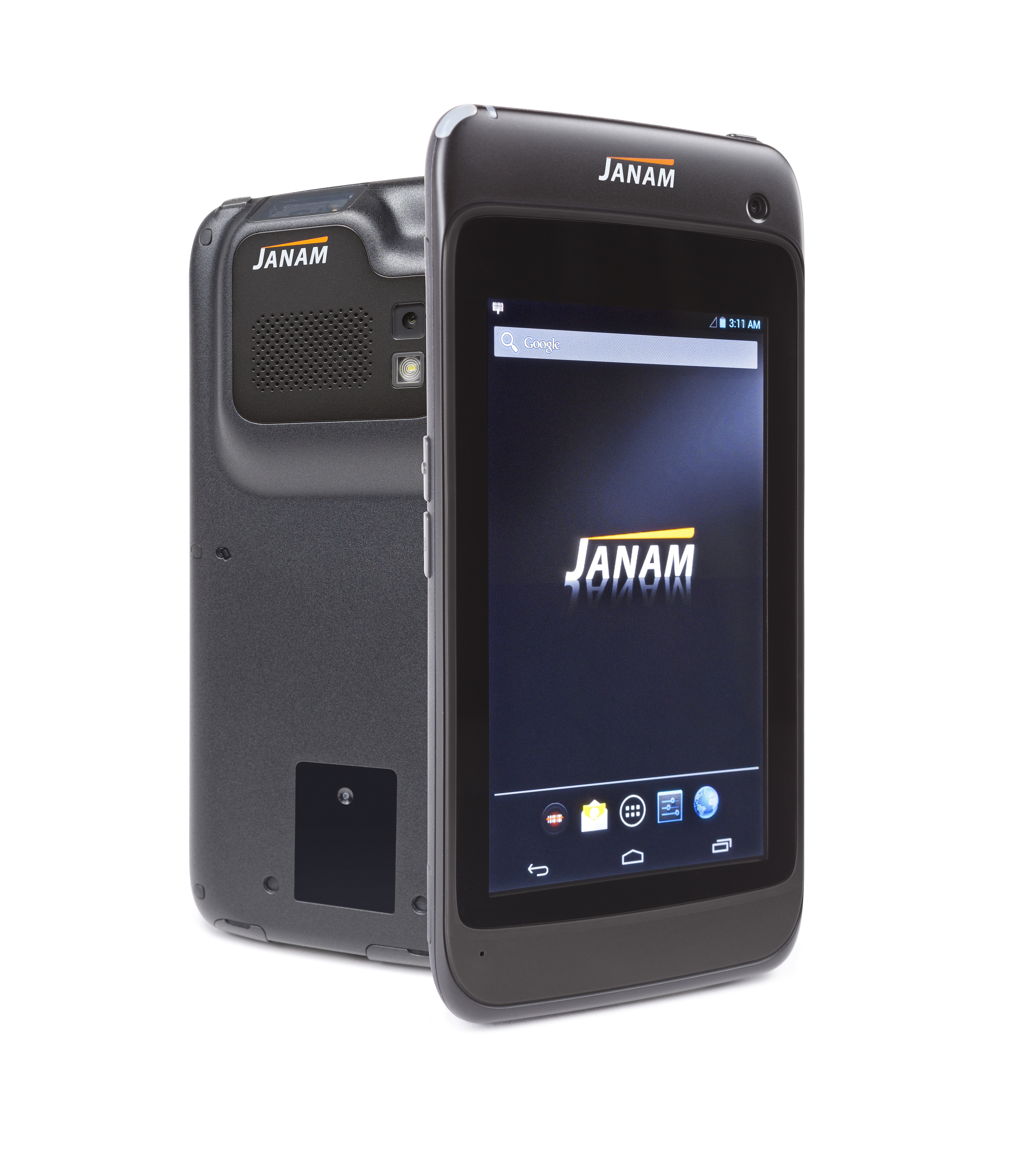

XT1

The industry’s lightest and most powerful rugged mini-tablet

The XT1 Rugged Mini-Tablet delivers all the technological advancements found in consumer devices with the mission-critical key features that enterprises require in a rugged tablet.

In addition to Android™ operating system and a brilliant 5.9” WVGA display, it comes equipped with 802.11a/b/g/n WLAN radio with enterprise-grade security and advanced 3G WWAN cellular technology, ensuring reliable data communication both inside and outside the four walls. Integrated 2D scanning technology and a 5.0 megapixel camera allow mobile workers to accurately capture data, while lightning fast processing, motion-sensing accelerometer, high-sensitivity GPS and advanced power management provide on-the-go productivity.

The XT1 is certified for use in hazardous environments, is sealed to IP54 standards and can withstand multiple 3’/1m drops to concrete. Designed to excel in the most rigorous work settings, the XT1 supports demanding enterprise applications in field sales, field service, healthcare, hospitality and retail environments. It’s technology at work.
Specifications

TECHNICAL



Operating System

Android™ 4.2.2

Processor

Dual-core ARM Cortex-A9 CPU @1.5GHz

Memory

1GB RAM / 16GB ROM

Expansion

User-accessible microSD card slot with SD and SDHC support

Power

3000mAh rechargeable Li-ion battery

PHYSICAL



Dimensions

7.8” L x 3.9” W x .5” D /200.5mm L x 99.3mm W x 14.7mm D

Weight

13oz / 370g including battery

Display

5.9 inch TFT WVGA (800x480)

Touch Panel

Capacitive touch screen

ENVIRONMENTAL



Operating Temperature

14º to 122º F / -10º to 50º C

Storage Temperature

-4º to 140º F / -20º to 60º C

Humidity

0% to 90% RH (no condensation)

Drop

Multiple 3ft / 1m drops to concrete on all sides across a wide temperature range

Water & Dust

IP54

Vibration

2.13 Grms from5Hz to 200Hz in all three axes, 20 minutes per axis

Electro Static Discharge (ESD)

+/- 8kV air; +/- 4kV contact

Sterilization

75% concentration alcohol rub

INTERFACE FEATURES



Audio

3.5mm headset jack; mono speaker; mono microphone; micro HD output (out)

Alerts

Vibration; LED indicators; audio beep

Connectors

mini USB

LED Indicators

Tri-color

External Buttons

Power button; volume/programmable buttons

DATA CAPTURE



Imager

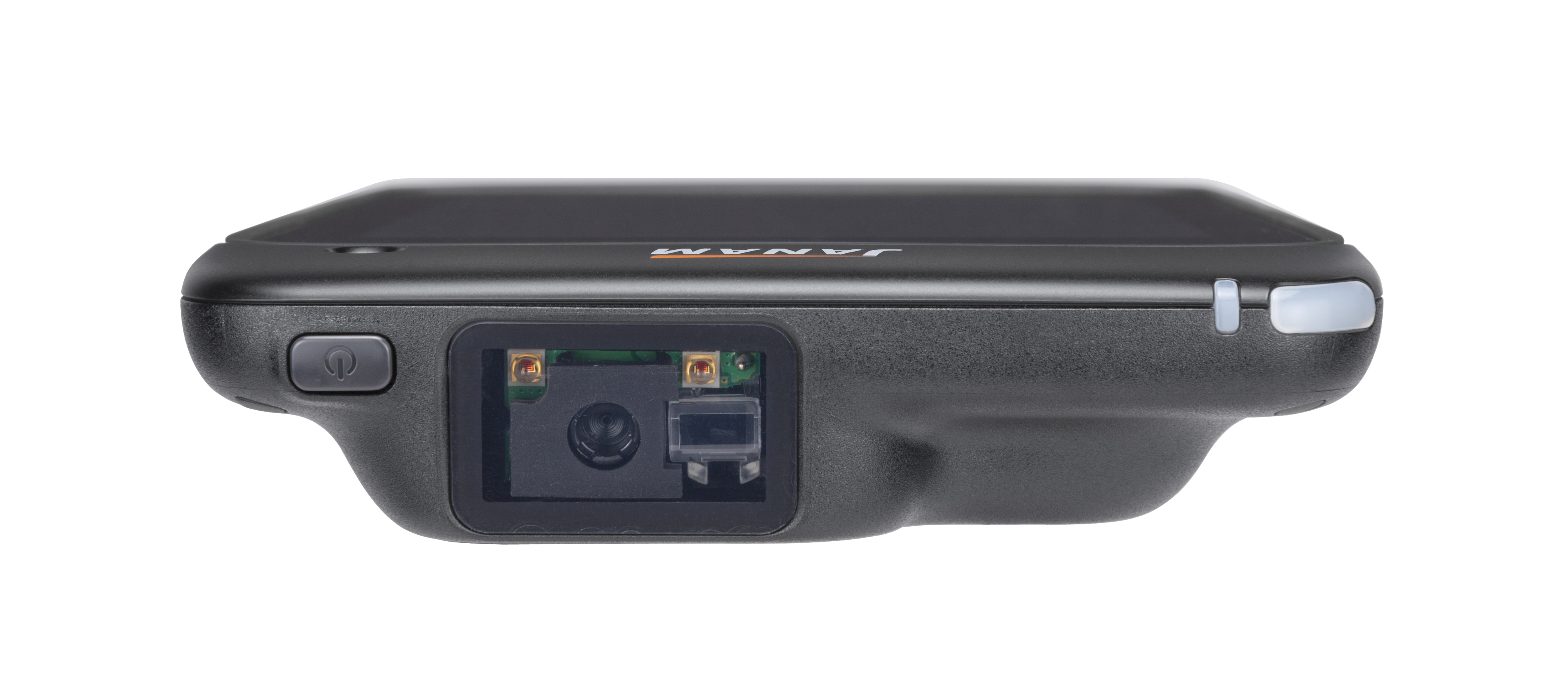

Honeywell N5600 with 2D Adaptus® Imaging Technology; 844 x 640 pixel CMOS area imager

 RFID/NFC Reads FeliCa, ISO14443 Type A, ISO14443 Type B, ISO15693 RFID tags in the 13.56 MHz range and all NFC card types


WIRELESS COMMUNICATION



WWAN

UMTS/HSDPA/HSUPA/GSM

WLAN

802.11a/b/g/n/d/e/h/i/k/r PICS Compliant

Security

IEEE 802.1x; WEP; WPA/WPA2 (TKIP); WPA2 (PSK, AES); EAP-TTLS; EAP-TLS; PEAPv0-MSCHAPv2; LEAP

WPAN

Bluetooth v4.0 (BLE)

MOBILE APPURTENANCES



Motion Sensor

G-Sensor Accelerometer

GPS

U-Blox GPS and Assisted GPS

Camera

5.0 megapixel CMOS color rear-facing autofocus camera with user-controllable LED flash and 1.2 megapixel front-facing camera

ACCESSORIES

Single-slot cradle kits (Charging; LAN; USB)



Six-slot cradle kits (Charging; LAN; USB)



Syncing/charging cable



Charging adapter

   Nylon holster
   Operating strap with adjustable grip

SAFETY/REGULATORY



Safety

IEC60950-1/A1:2009

EMI

FCC Part 15B; EN5502; EN55024; EN61000-3-2; EN61000-3-3

RF

FCC Part 15B and 15C; EN301 489-1; EN301 489-3; EN 301 489-7; EN301 489-17; EN 301 489-24; EN300 328; EN301 893; EN300 440; EN301 908-1; EN301 908-2; EN301 511; EN302 291-1; EN302 291-2; EN50566; EN62209-2; EN62479; EN50332

 Hazardous Locations UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D

                                           Specifications Subject to Change.

Accessories

Cradle Kits

  • Single Slot Ethernet/USB Cradle Kit

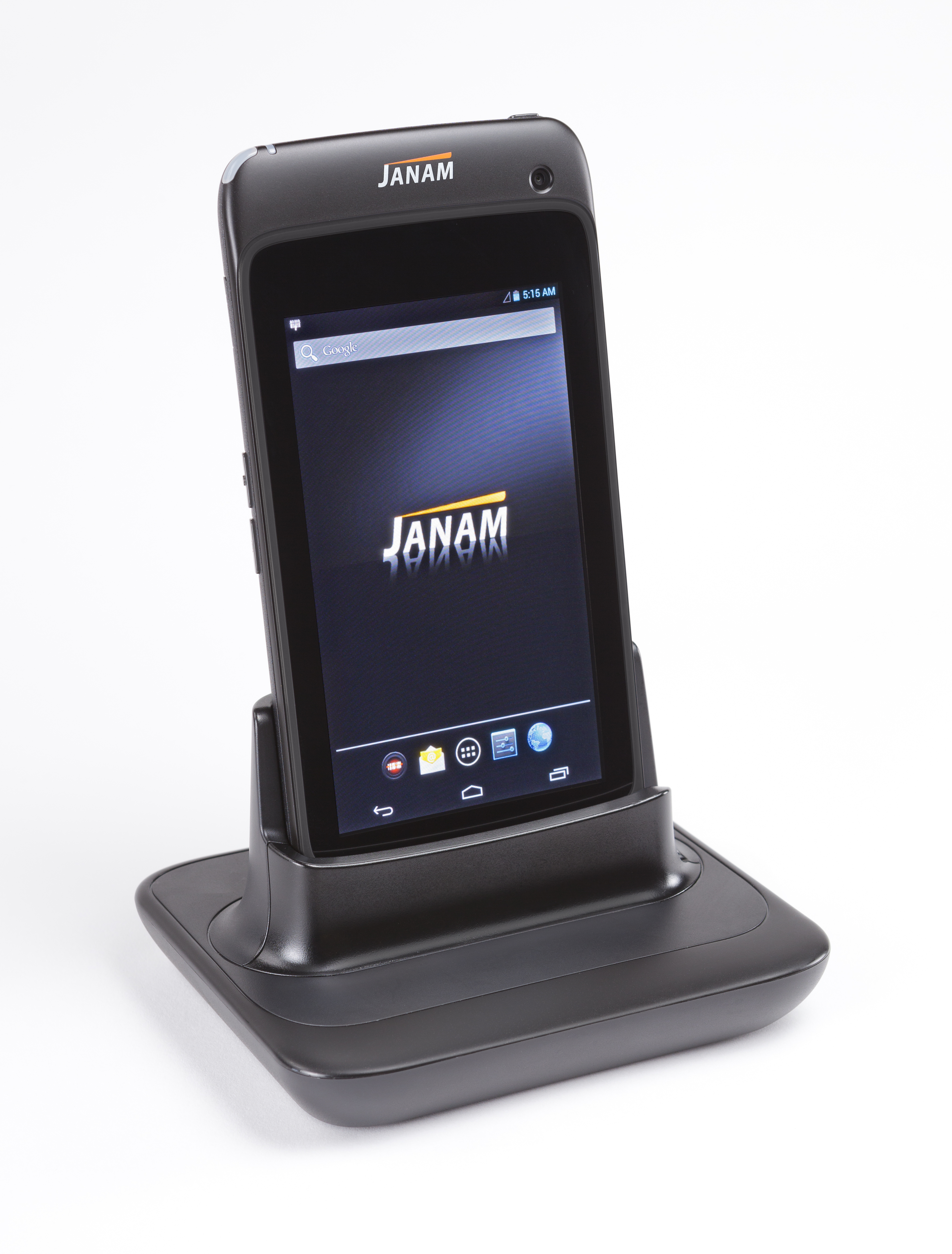

    Single Slot Ethernet/USB Cradle Kit

    (CKT-T1-001EU )
    Includes cradle, power supply and line cord.

Expanded Performance

  • Nylon Holster

    Nylon Holster

    (HL-T-001F)
    Nylon Holster with Rugged Belt Clip and Velcro Strap

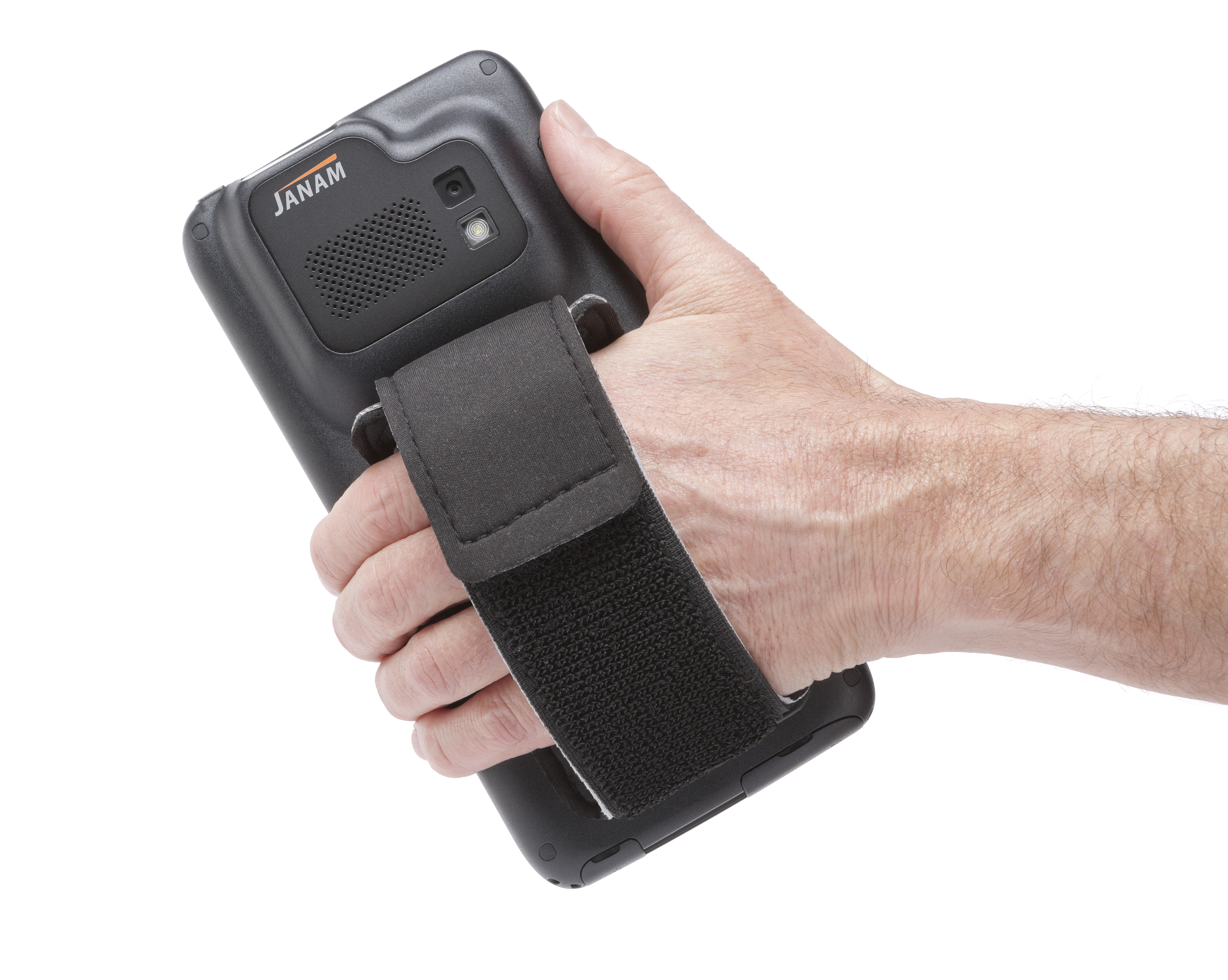

  • Operating Strap

    Operating Strap

    (HS-T-002)
    Operating Strap with adjustable grip for XT1 Series.

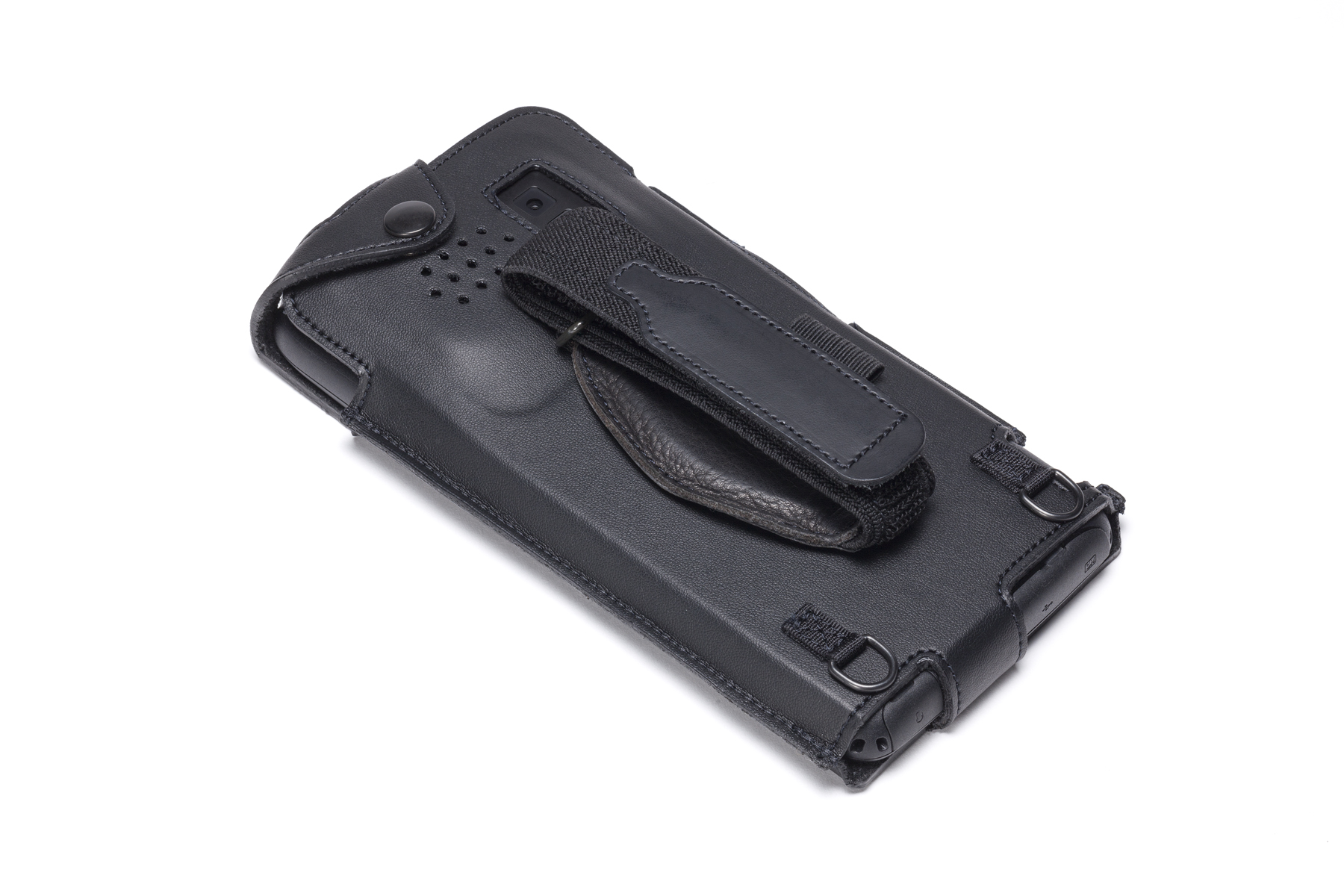

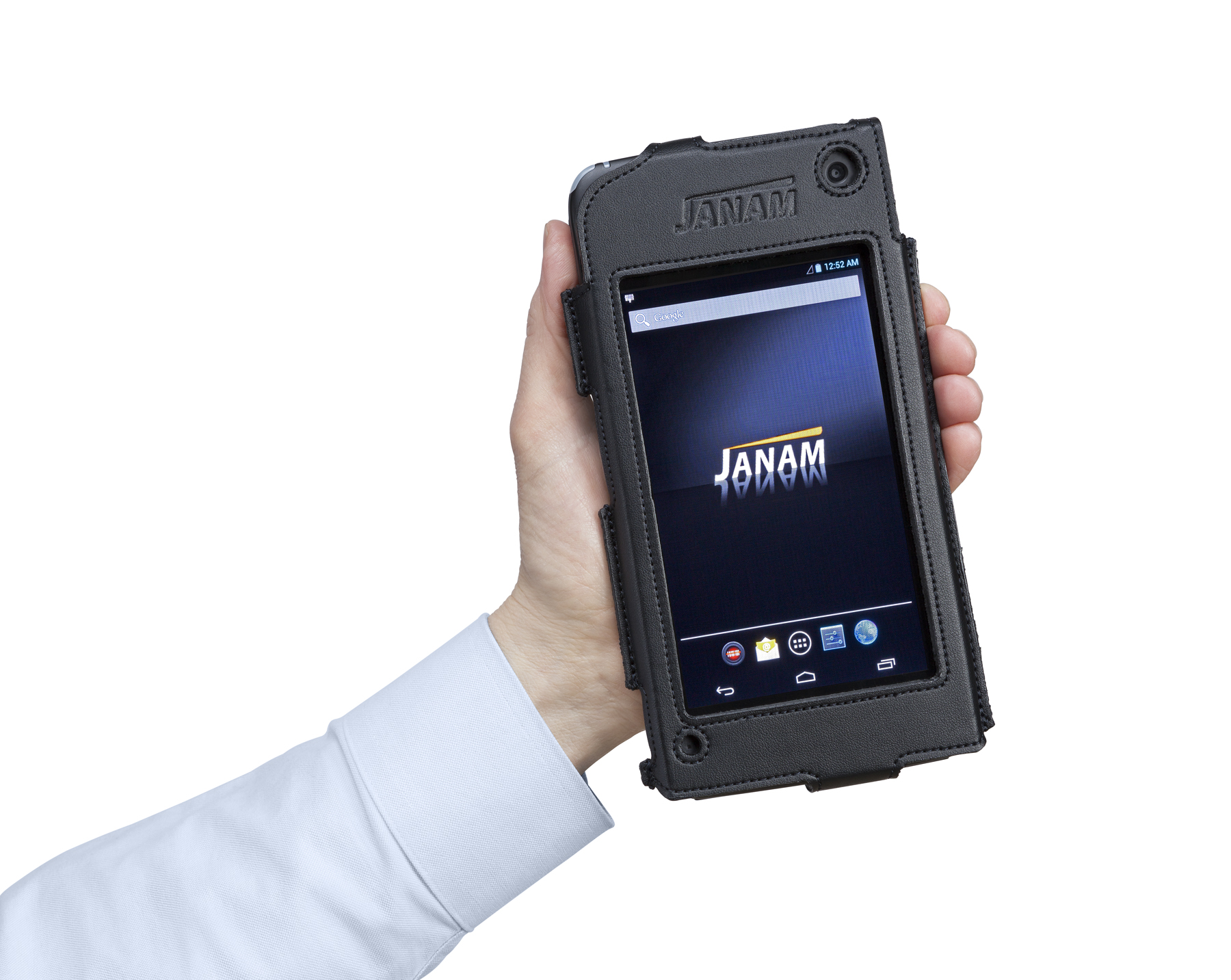

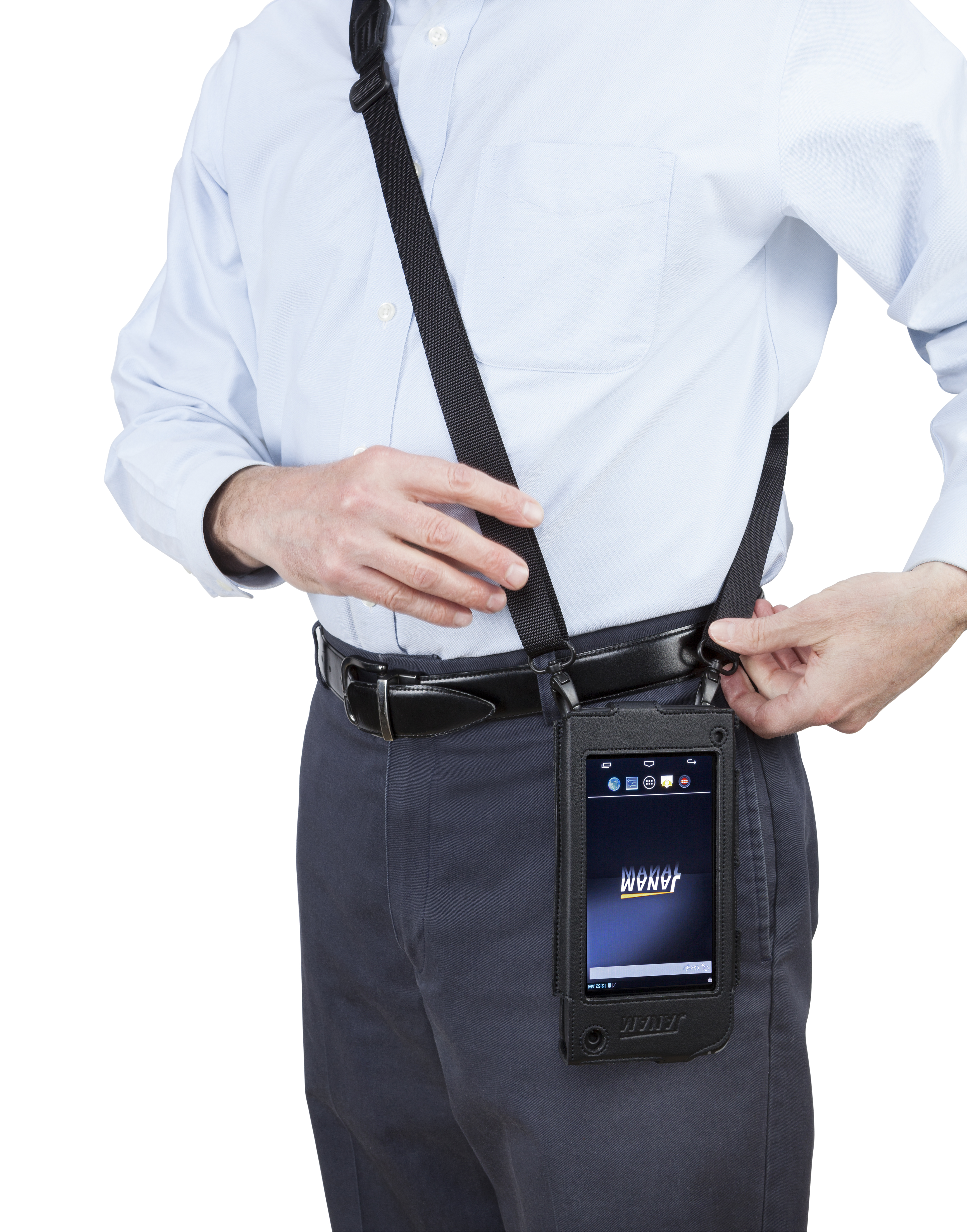

  • Leatherette Operating Case with Swivel Handstrap

    Leatherette Operating Case with Swivel Handstrap

    (HL-T-002)
Resources

Product files and documents


Quick Start Guide for XT1 PDF file, 134.71 KB
XT1 User Guide PDF file, 9.31 MB
XT1 Specifications PDF file, 144.63 KB
XT1 Datasheet PDF file, 450.92 KB
XT1 Datasheet_Arabic PDF file, 499.83 KB
XT1 Datasheet_French PDF file, 295.53 KB
XT1 Datasheet_German PDF file, 656.98 KB
XT1 Datasheet_Italian PDF file, 275.99 KB
XT1 Datasheet_Spanish PDF file, 711.97 KB
XT1 Datasheet_Russian PDF file, 690.28 KB
