XM70

More Power. More Flexibility.

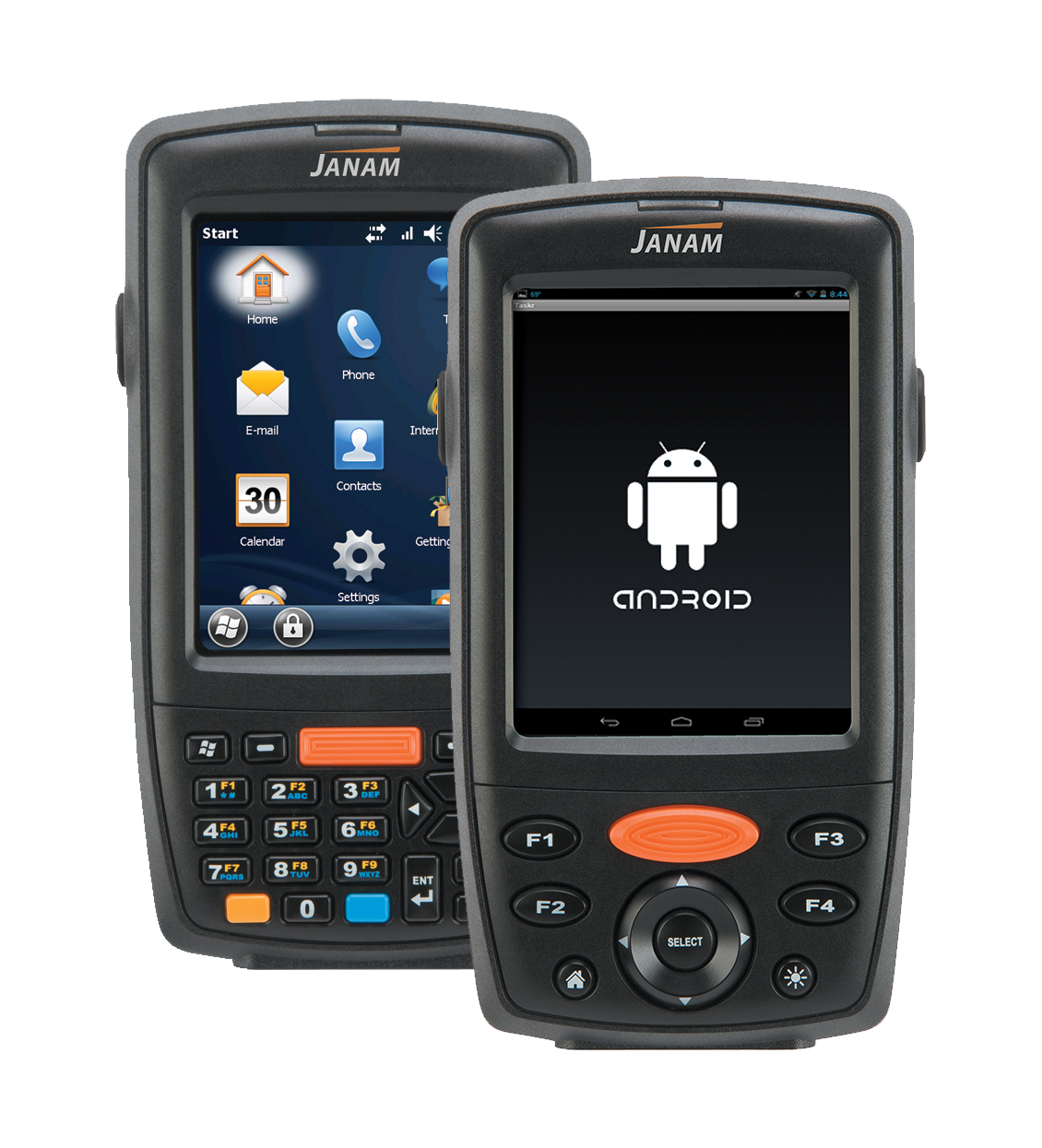

Designed to deliver maximum return on investment, the new XM70 provides support for Android™ and Microsoft Windows Embedded® Handheld 6.5 operating systems on the same device, allowing customers to future-proof their technology investment and eliminate the costs associated with forced application migration and expensive hardware upgrade. In addition, backward compatibility with XM66 accessories allows Janam’s global customer base to reuse existing technology while cost-effectively upgrading to the latest mobile computing platform.

Janam’s XM70 rugged mobile computer offers advanced 1D and 2D barcode scanning with Zebra’s SE4500 scan engine. With extraordinary scanning speed and outstanding motion tolerance, the XM70 improves productivity across a broad array of industries including retail, hospitality, healthcare, transportation and logistics and ticketing.

Weighing less than 10 ounces and equipped with a full 3.5-inch display, the XM70 fits in the palm of the hand and can survive all-day use in challenging environments. The XM70 can withstand 4 foot/1.2 meter drops to concrete on all sides across a wide temperature range and is sealed against rain and dirt to IP54 standards. Choice of 2400mAh or 4000mAh Li-ion battery ensures uninterrupted operation throughout the workday.

A standard 2-year warranty provides customers with the level of service they require, at no additional cost.

Specifications

TECHNICAL
Operating System Android 4.1.2 or Windows Embedded Handheld 6.5
Processor ARM Cortex-A8 CPU @1GHz
Memory 1GB SDRAM / 4GB NAND
Expansion User-accessible microSD card slot
Power 2400mAh or 4000mAh rechargeable Li-ion battery
PHYSICAL
Dimensions 1.20" H X 3.11" W x 5.75"L / 30.5mm H x 79mm W x 146mm L
Weight 9.85oz / 279g with battery

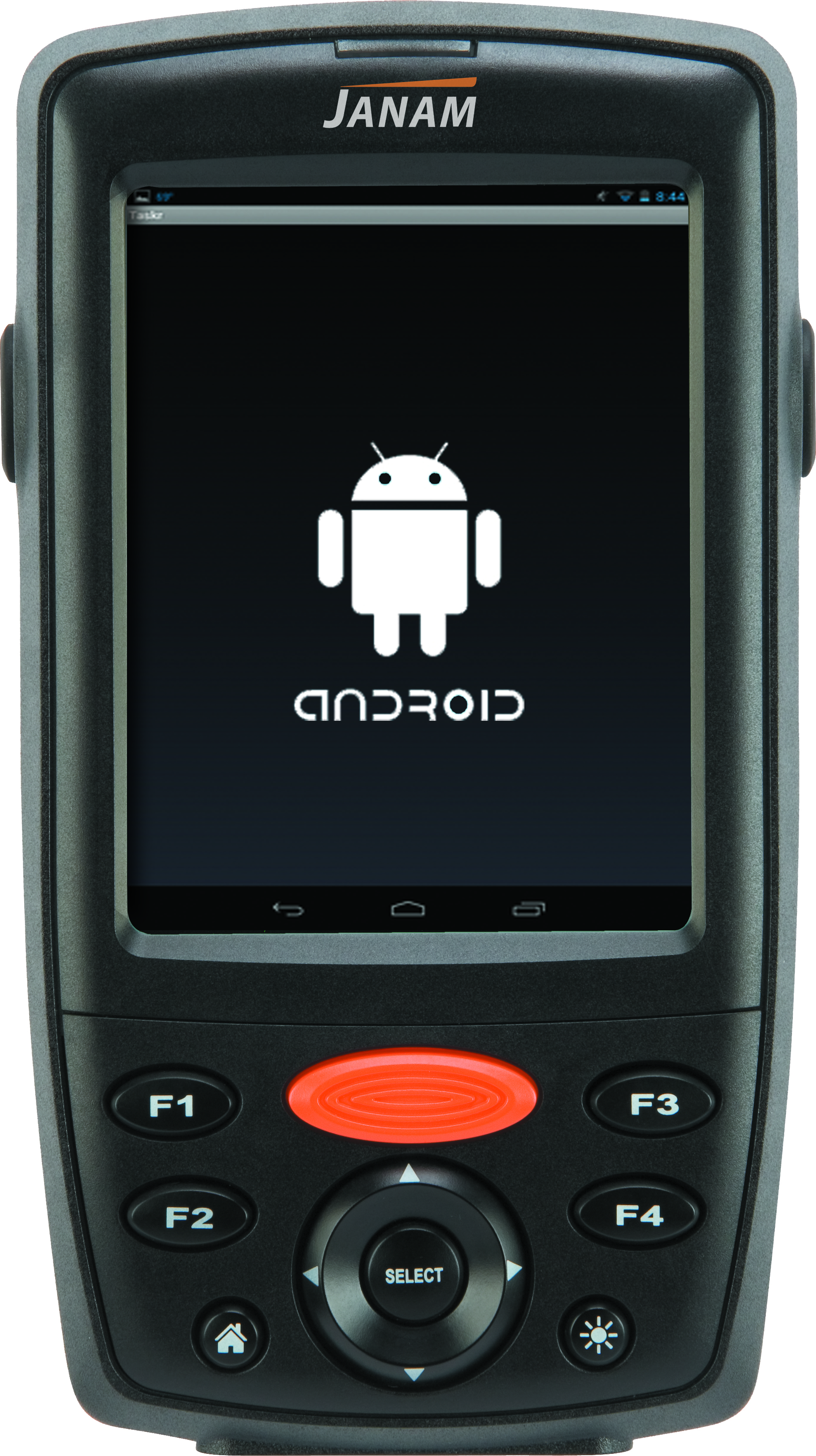

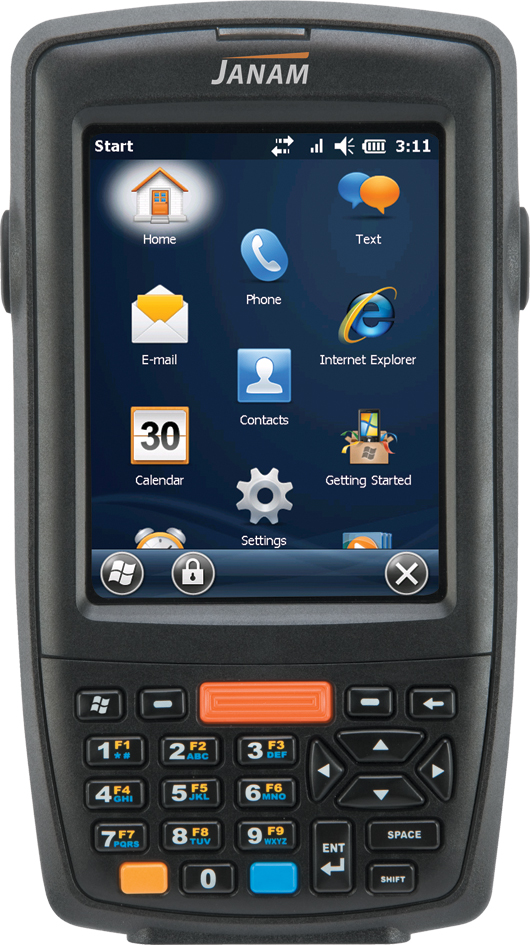

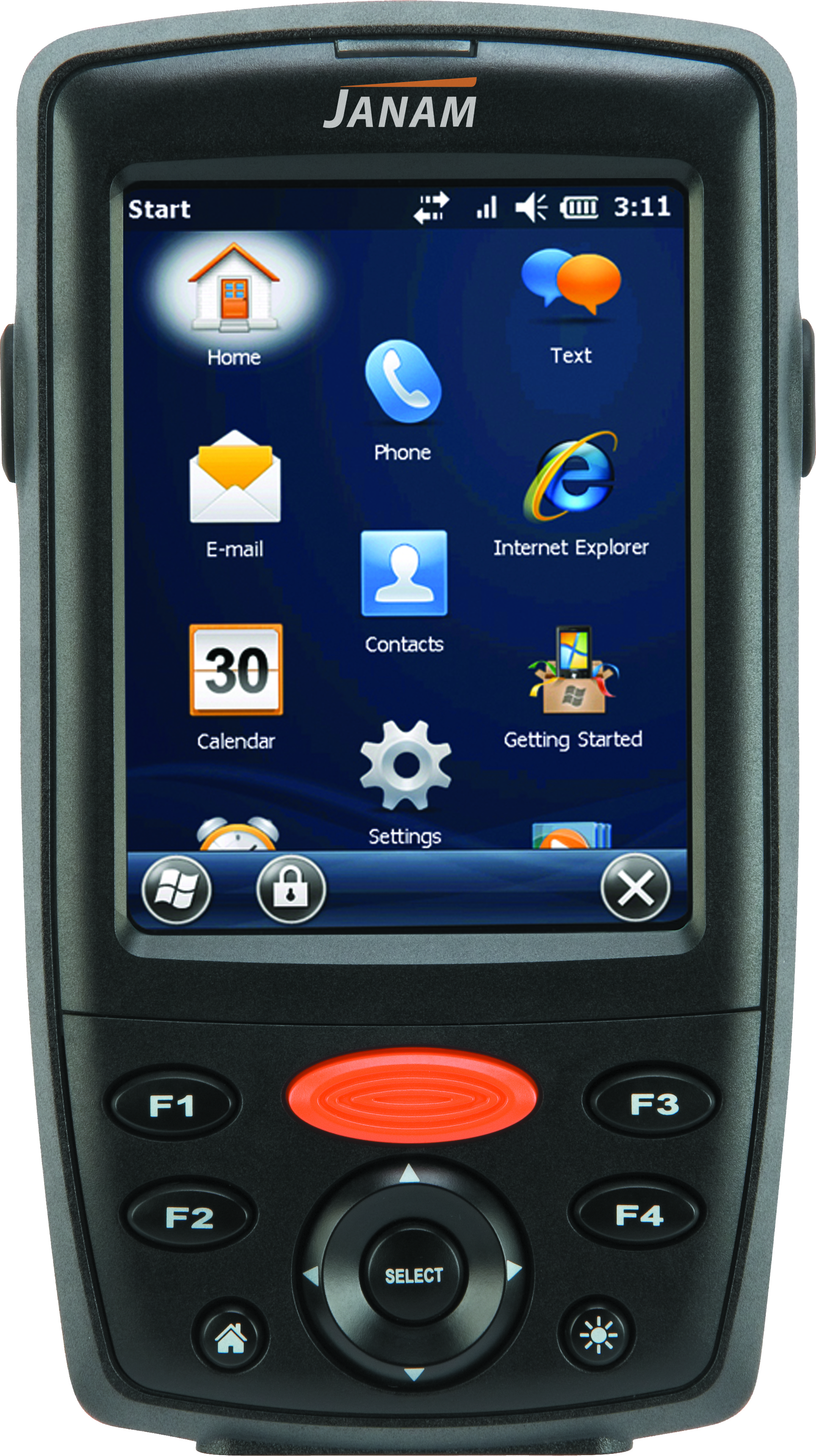

Keypad Backlit numeric keypad or backlit PDA keypad (with 4-way navigation)
Display 3.5" Color TFT QVGA (240x320)
Touch Panel Resistive touch screen
ENVIRONMENTAL
Operating Temperature 14° to 122° F / -10° to 50° C
Storage Temperature -13° to 158° F / -25° to 70° C
Humidity 5% to 90% RH (no condensation)
Drop Multiple 4ft / 1.2m drops to concrete on all sides across a wide temperature range
Water & Dust IP54 Category II
Vibration 0.03 G²/Hz from 20Hz to 2kHz; 1 hour random wave per axis
Electro Static Discharge (ESD) +/- 15kVDC air; +/- 8kVDC contact
Sterilization 76.9% to 81.4% concentration alcohol rub
Ambient Light 450ft-candelas (artificial light); 8,000ft-candelas (sunlight)
INTERFACE FEATURES
Audio Speaker and Microphone
Alerts Vibration, LED indicators, audio beep
LED Indicators Tri-color
Scan Triggers Left, right, center buttons
DATA CAPTURE
Imager Zebra SE4500 1D/2D imager
1D Symbologies China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and 93i, Code 128, EAN-8, EAN-13, GS1-128, GS1 Databar (RSS-144, RSS Limited, RSS Expanded), Interleaved 2 of 5, ISBT 128, Matrix 2 of 5, Korea Post, MSI, Plessey Code, PosiCode, , Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5 Industrial (three-bar start/stop), Telepen, Trioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1

2D Symbologies



PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39), 4-CB (4-State Customer Barcode), Australian Post, Aztec Code, Aztec Mesas, British Post, Canadian Post, Data Matrix, ID-tag (UPU 4-State), Japanese Post, KIX (Netherlands) Post, MaxiCode, OCR, Planet Code, Postnet, QR Code
DATA COMMUNICATION
USB Hi-Speed USB 2.0 (up to 480mbps)
WPAN Bluetooth v2.1
WLAN Optional Summit IEEE 802.11a/b/g/n; Cisco certified
Wireless Security Authentication: EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP) or PSK
Encryption: WPA2 (AES-CCMP), WPA (TKIP), WEP - 40 bit and 128-bit keys
ACCESSORIES
Single-Slot Cradle Kit, Four-Slot Cradle Kit, Extended Capacity Battery
SAFETY/REGULATORY
Safety EN60950-1:2006/A2:2013; CAN/CSA-C22.2 NO. 60950-1-07 (R2012); EN60601-1-2:2014
EMI FCC Part 15 Subpart B:2013; EN55022:2010+AC:2011; EN55024:2010; ICES-003 Issue 5 August 2012; AS/NZS CISPR 22:2009+A1:2010
RF FCC Part 15 Subpart C and Subpart B:2013, EN300 328 v1.8.1 (2012-6); EN300 328 v1.9.0; EN301 489-1 v1.9.2 (2012-10-23); EN301 489-17 v2.2.1 (2012-10-23); RSS 210 Issue 8; AS/NZS 4268:2012/Amdt 1:2013
Specifications Subject to Change.







Accessories

Cradle Kits

  • Single-Slot USB/Serial Cradle Kit

    Single-Slot USB/Serial Cradle Kit

    (CKT-P1-002U)
    With built-in serial and USB communications capability plus room to charge a spare battery.
  • Single-Slot Modem Cradle Kit

    Single-Slot Modem Cradle Kit

    (CKT-P1-002M)
    Connect remotely to a host PC using a dial-up phone line (also features charging well for spare battery).
  • Four-Slot Charge-Only Cradle Kit

    Four-Slot Charge-Only Cradle Kit

    (CKT-P4-002C)

    Includes cradle, power supply and US line cord.

  • Power Supply for Four-Slot Cradle

    Power Supply for Four-Slot Cradle

    (PS-XP-4)
  • Power Supply for Single-Slot Cradle

    Power Supply for Single-Slot Cradle

    (PS-XP-1)

Cables

  • Zebra Printer Cable for QL Series

    Zebra Printer Cable for QL Series

    (CAB-ZB1-1)
    For use with Molex Cable Cup Assembly (CC-P-002X).
  • O'Neil Printer Cable

    O'Neil Printer Cable

    (CAB-ON1-1)
    For use with Molex Cable Cup Assembly (CC-P-002X).
  • DEX Cable

    DEX Cable

    (CAB-DX1-1)
    For use with Molex Cable Cup Assembly (CC-P-002X).

Batteries & Chargers

  • Extended Battery

    Extended Battery

    (BA-XP-2)
    4000 mAh 3.7v.  Important: Purchase Extended Battery Kit (BK-XP-1) before ordering spare extended batteries.
  • Extended Battery Kit

    Extended Battery Kit

    (BK-XP-1)
    Includes 4000mAh 3.7v battery and cover.
  • Standard Battery

    Standard Battery

    (BAT-P1-001)
    2400mAh 3.7v
  • Six-Bay Battery Charging Kit

    Six-Bay Battery Charging Kit

    (BK-P6-001)
    Compact, low profile battery charging kit that charges up to six Janam batteries (BA-XP-1 and BA-XP-2).  Includes charging base, power supply and line cord (batteries not included).

Expanded Performance

  • Magnetic Stripe Reader

    Magnetic Stripe Reader

    (MSR-P-001)
    Magnetic Stripe Reader delivers on-the-go card reading capability.
  • USB Cable Cup Assembly

    USB Cable Cup Assembly

    (CC-P-002U)
    Attachable accessory for USB-based connectivity.
  • USB Host Cable Cup Assembly

    USB Host Cable Cup Assembly

    (CC-P-002UH)
    Attachable accessory to connect USB cable with XM Series or XP30 devices.

  • Serial Cable Cup Assembly

    Serial Cable Cup Assembly

    (CC-P-002S)
    Attachable accessory for serial-based connectivity.
  • Molex Cable Cup Assembly

    Molex Cable Cup Assembly

    (CC-P-002X)
    Attachable accessory for secure Molex-based cable connectivity.
  • Vehicle Charging Adapter

    Vehicle Charging Adapter

    (VA-XP-1)
    A convenient way to charge Janam's handhelds while on the go and a great back-up charging method for extended shifts.  Note: Use with separately orderable Cable Cup Accessory or RFID Reader.

  • Nylon Operating Case with Clear Front

    Nylon Operating Case with Clear Front

    (HL-P-001)
    A protective case for extra tough environments.

  • Retractable Locking Tether with Shoulder Strap

    Retractable Locking Tether with Shoulder Strap

    (RT-J-002)
    For use with Nylon Operating Cases (HL-P-001 or HL-P-003) .

  • Nylon Holster with Rugged Clip and Velcro Strap

    Nylon Holster with Rugged Clip and Velcro Strap

    (HL-P-002F)
    Holster with rugged clip, velcro strap top closure and spare battery pocket.

  • RFID Reader

    RFID Reader

    (RFD-P1-001)
    Attachable accessory extends data capture capabilities.

Spare & Replacement Items

  • Stylus Tether 5-pack

    Stylus Tether 5-pack

    (SS-XP-5)
    Connecting cord for attaching a stylus to the handheld; Minimizes occurrence of a dropped or misplaced stylus.

  • Handstrap

    Handstrap

    (HS-P-001)
    For added user comfort and convenience.
  • Stylus 5-pack

    Stylus 5-pack

    (ST-XP-5)
Resources

Product files and documents


XM70 Android User Guide PDF file, 1.6 MB
XM70 WEH6 User Guide PDF file, 3.63 MB
XM70 Datasheet PDF file, 791.67 KB
XM70 Specifications PDF file, 95.17 KB
XM70 Spanish Datasheet PDF file, 1.23 MB
XM70 French Datasheet PDF file, 1.21 MB
XM70 German Datasheet PDF file, 1.22 MB
XM70 Russian Datasheet PDF file, 126.47 KB
