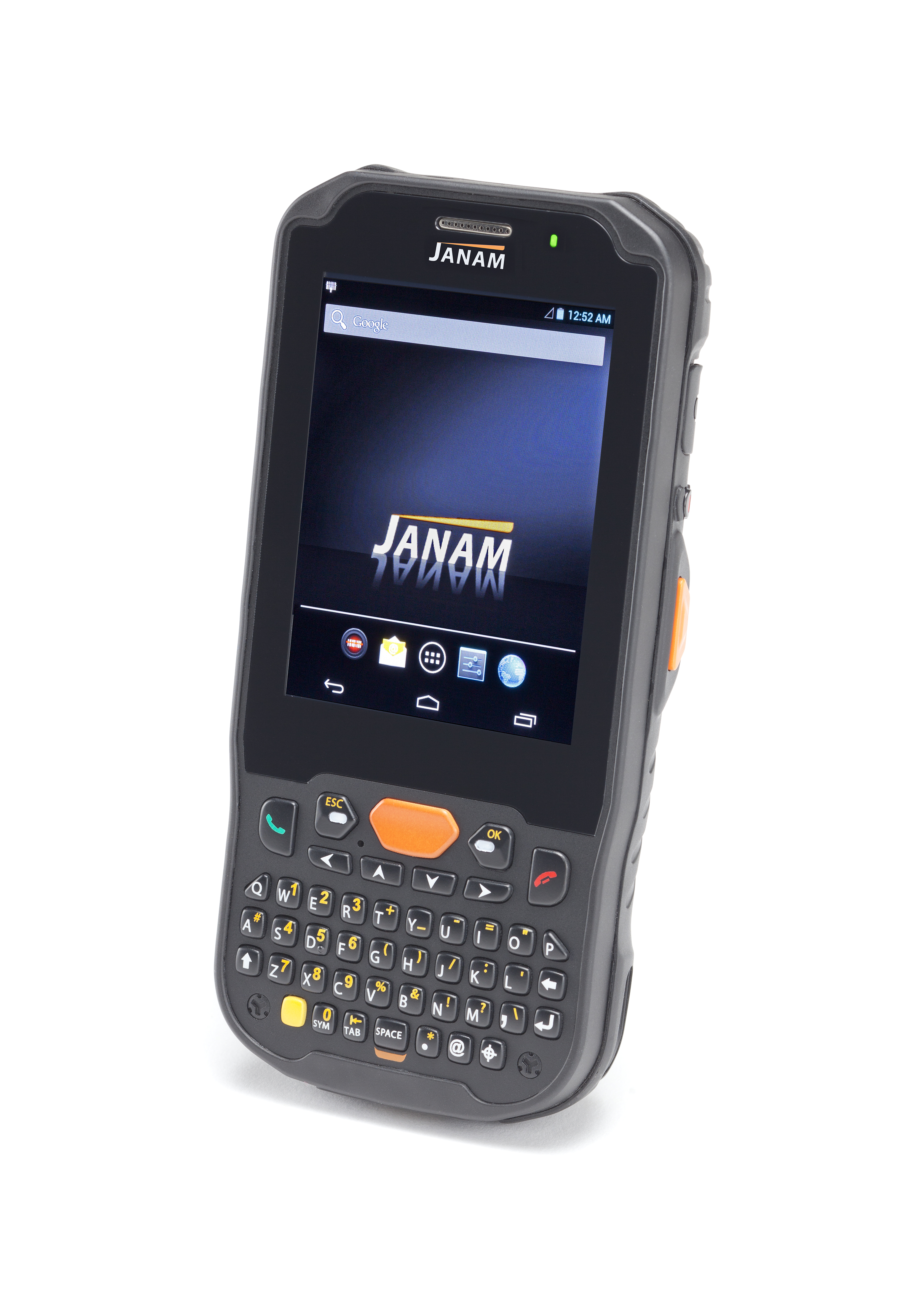

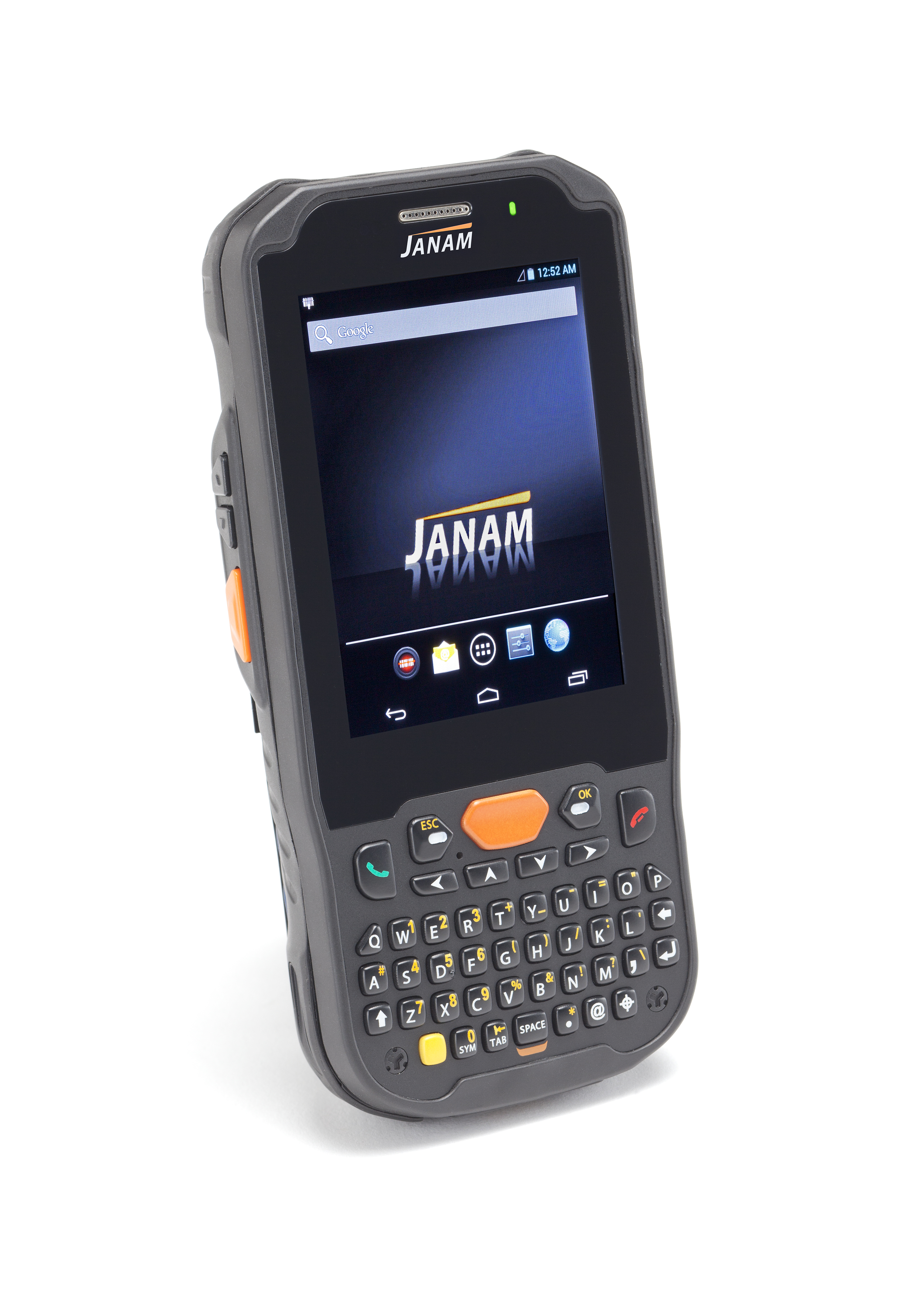

XM5

Road Warrior. Investment Protector.

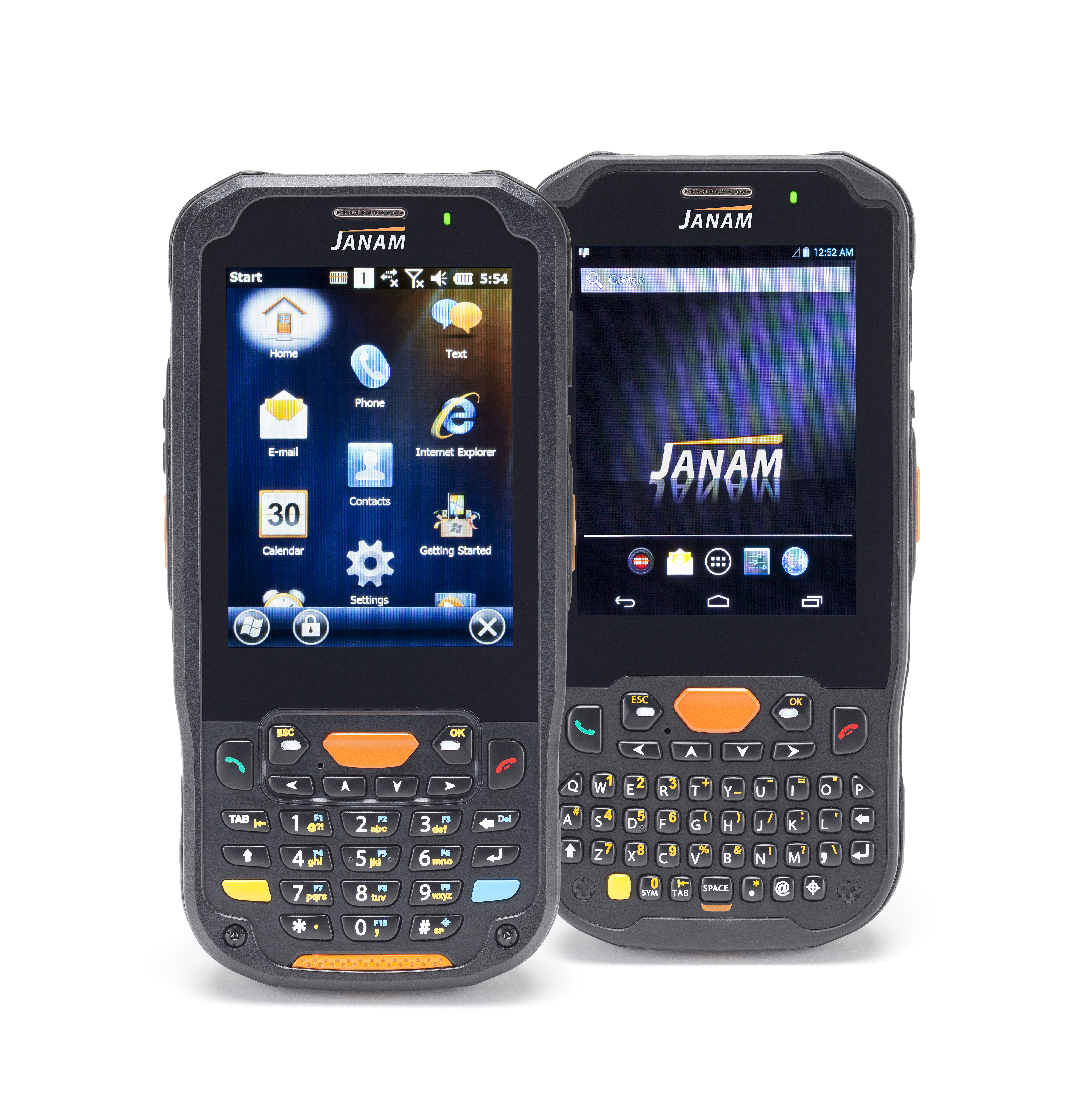

Because it supports Android™ and Microsoft Windows Embedded® Handheld 6.5 on the same device, Janam’s super-rugged, super-capable and super-affordable XM5 mobile computer eliminates the stress and cost associated with forced application migration and expensive hardware upgrade.  Customers can choose the operating system that meets their business needs today while extending their mobility investment years into the future.

The XM5 mobile computer redefines productivity and is built to withstand the rigors of heavy-duty use in the field. It combines the latest technological advancements in mobile devices with a sleek and rugged design to provide the power and flexibility that enterprise and government customers demand. Equipped with 4G-ready WWAN and 802.11a/b/g/n Wi-Fi communications, the XM5 ensures mobile workers will be able to access voice and data anytime, anywhere. Additional features include the choice between a 1D/2D imager or 1D laser scanner, as well as integrated RFID and NFC reading capabilities, front and rear facing cameras, Bluetooth and smart battery power management.

The XM5 mobile computer survives repeated 5’ drops to concrete across a wide operating temperature range, is sealed to IP65 standards and is UL-certified to provide ultimate reliability in extreme and hazardous locations.



Specifications

TECHNICAL



Operating System

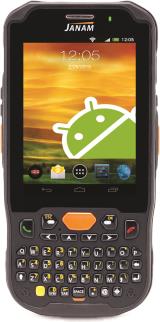

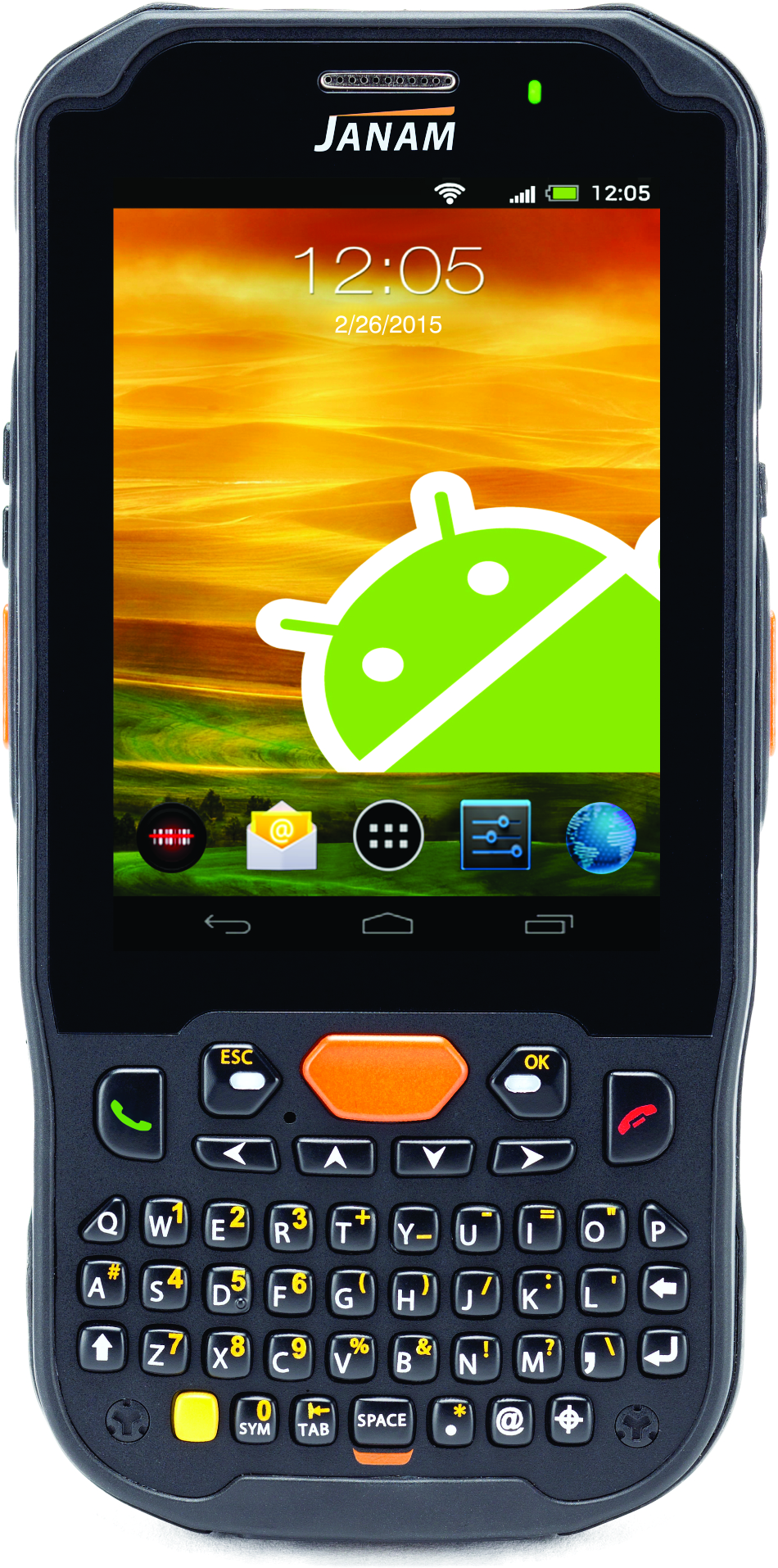

Android™ 4.2 or Microsoft® Windows® Embedded Handheld 6.5

Processor

AM3715 ARM Cortex-A8 CPU@1GHz

Memory

512MB RAM / 1GB ROM

Expansion

User-accessible microSD card slot with SD and SDHC support

Power

4000mAh rechargeable Li-ion battery

PHYSICAL



Dimensions

6.1” L x 2.9” W x 1.0” D /156.9mm L x 75.6mm W x 25.8mm D

Weight

10oz / 305g including battery

Display

3.5 inch TFT VGA (480x640)

Touch Panel

Resistive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º C

Storage Temperature

-13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete on all sides across a wide temperature range

Water & Dust

IP65

Vibration

Amplitude 2MM from 10Hz to 33Hz in all three axes, 1 hour per axis



Electro Static Discharge (ESD)

+/- 8kVdc air; +/- 15kVdc contact

Sterilization

85% concentration alcohol rub

INTERFACE FEATURES



Audio

3.5mm headset jack with Secure Lock; mono speaker; mono microphone

Alerts

Vibration; LED indicators; audio beep

LED Indicators

2 dual LEDs on front

External Buttons

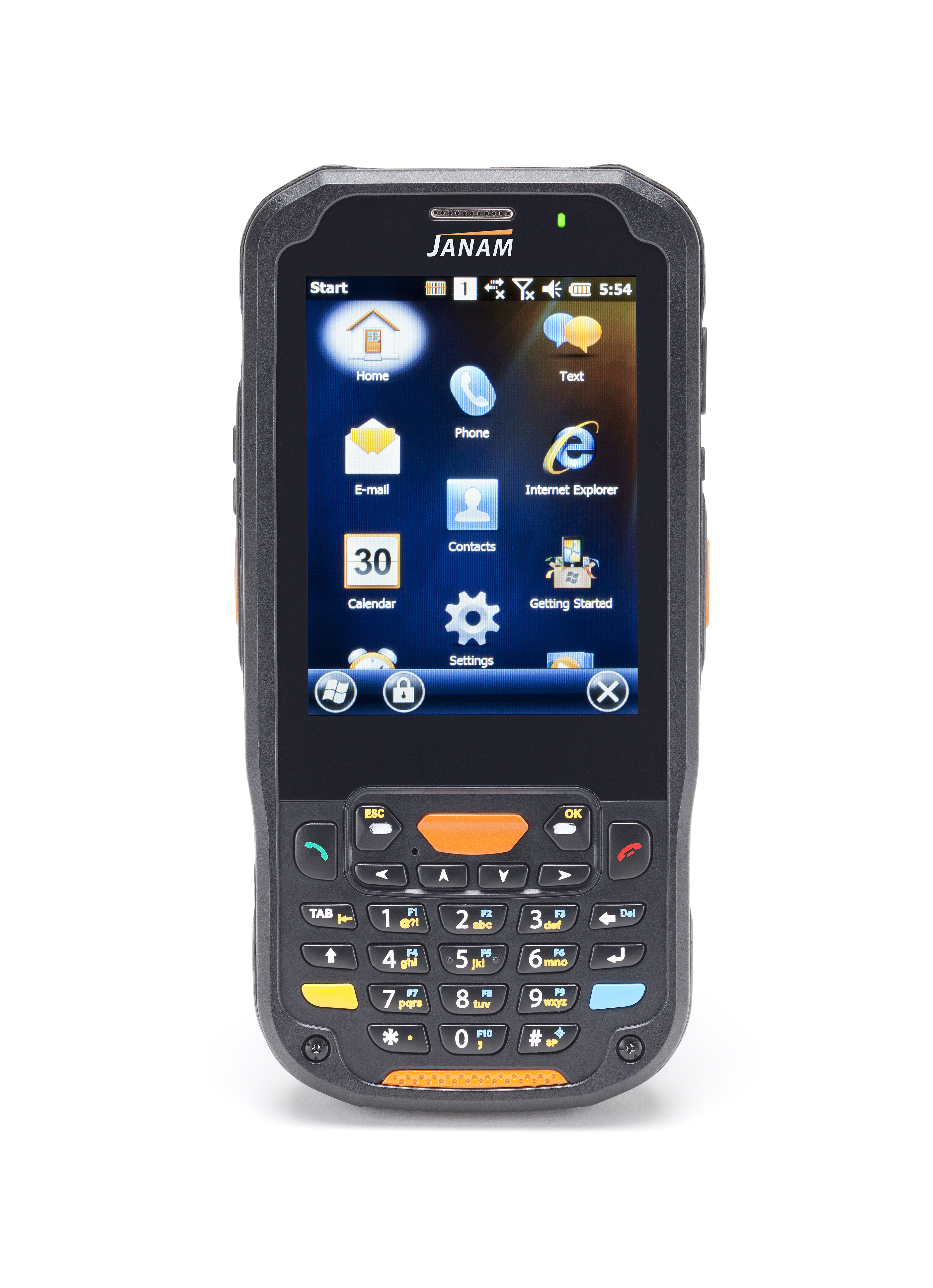

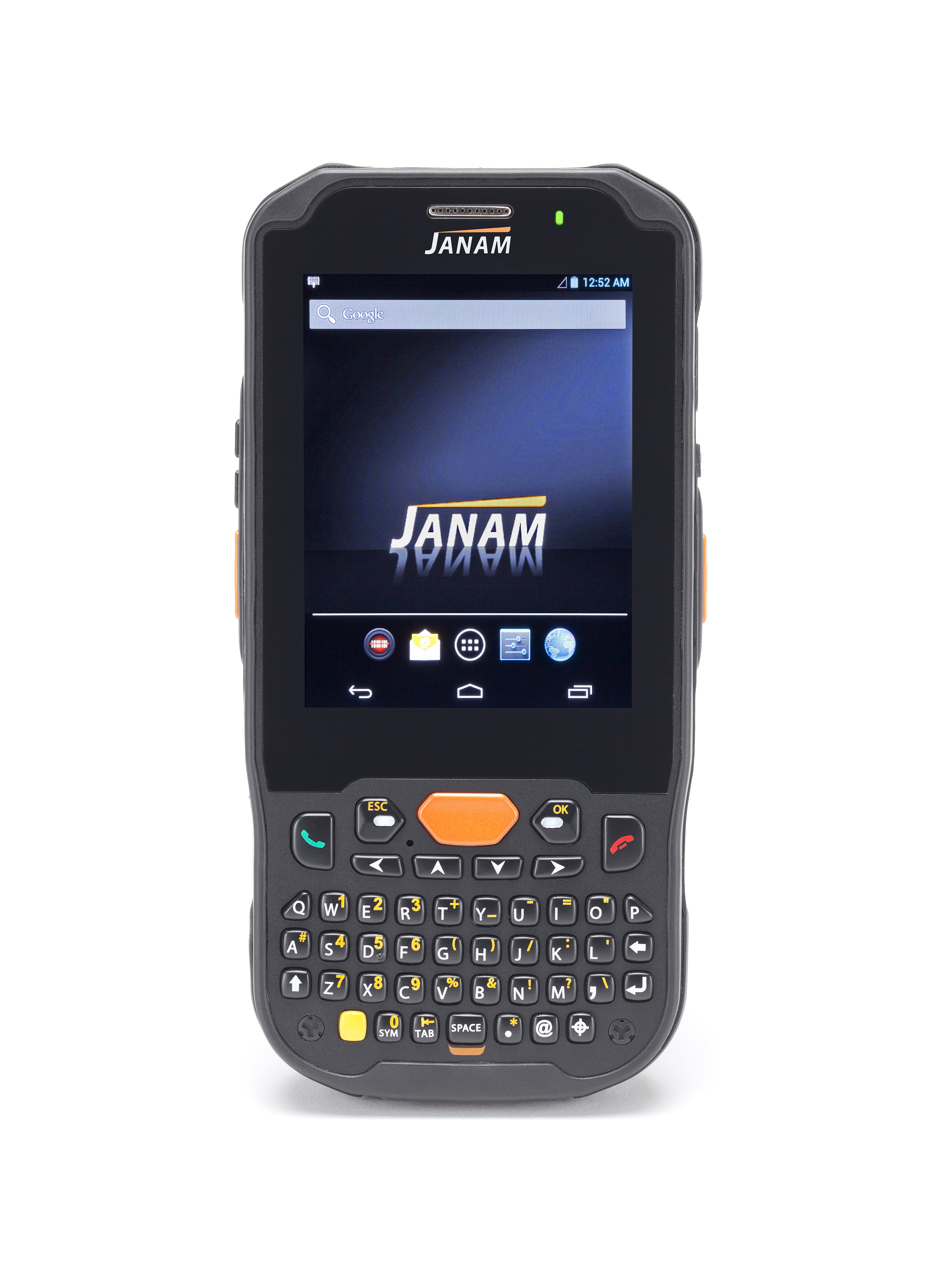

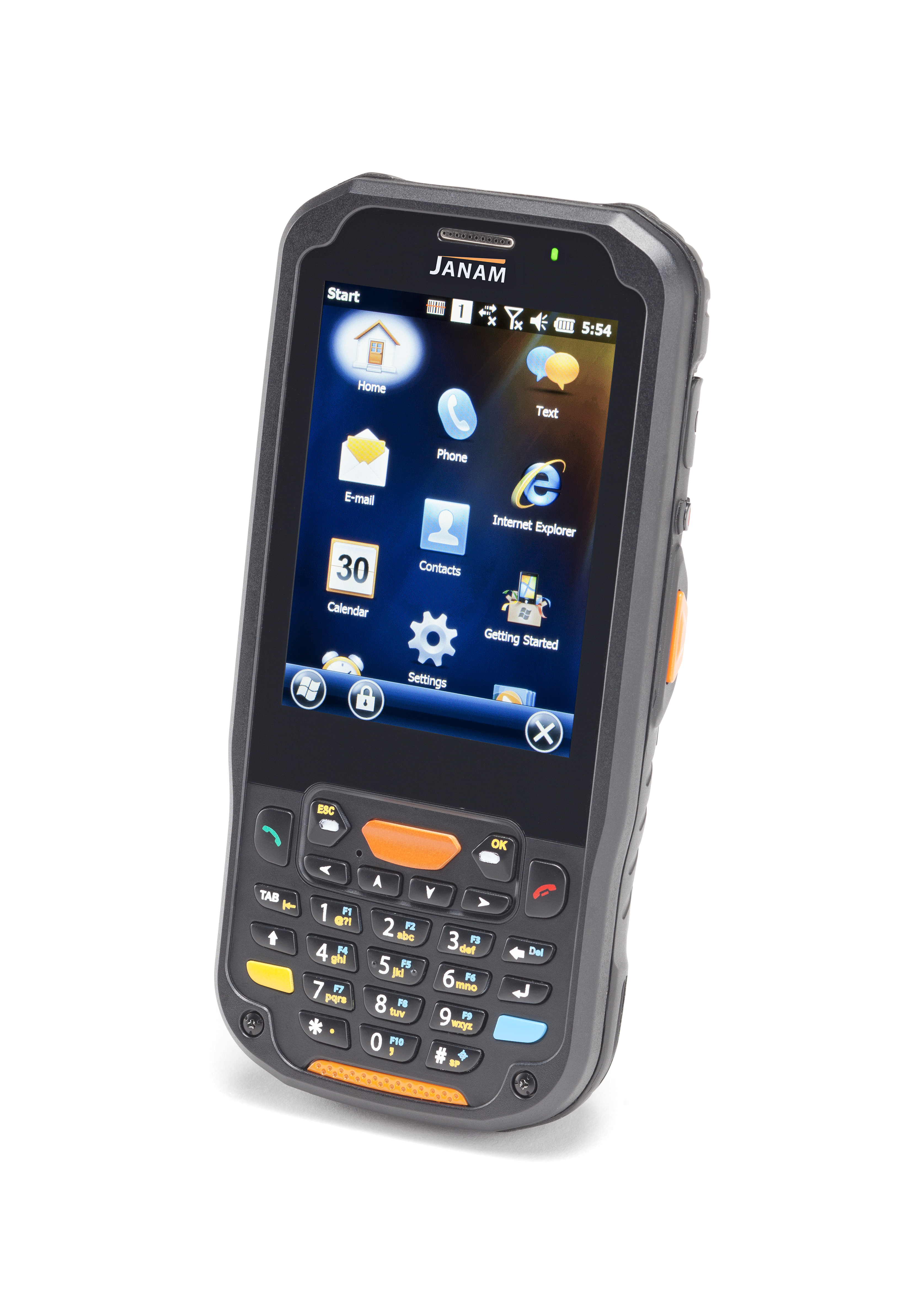

Numeric keypad or QWERTY keypad; Right: Scan/Power; Left: Scan/Up/Down

DATA CAPTURE



Imager

Honeywell N5600 with 2D Adaptus® Imaging Technology

 Laser Honeywell N4300 miniature laser engine
 RFID/NFC Reads ISO14443 Type A, ISO14443 Type B, ISO15693 and Mifare Classic RFID tags in the 13.56 MHz range

WIRELESS COMMUNICATION



WWAN

UMTS/HSPA+/HSDPA/HSUPA/GSM

WLAN

802.11a/b/g/n

Security

WEP, WPA2 (AES-CCMP); WPA (TKIP); WPA2 (PSK, AES); EAP-TTLS; EAP-TLS; PEAP-MSCHAPv2; PEAP-GTC; LEAP; EAP-FAST

WPAN

Bluetooth v2.1, Class 2 EDR

MOBILE APPURTENANCES



Motion Sensor

G-Sensor Accelerometer

GPS

U-Blox GPS and Assisted GPS

Camera

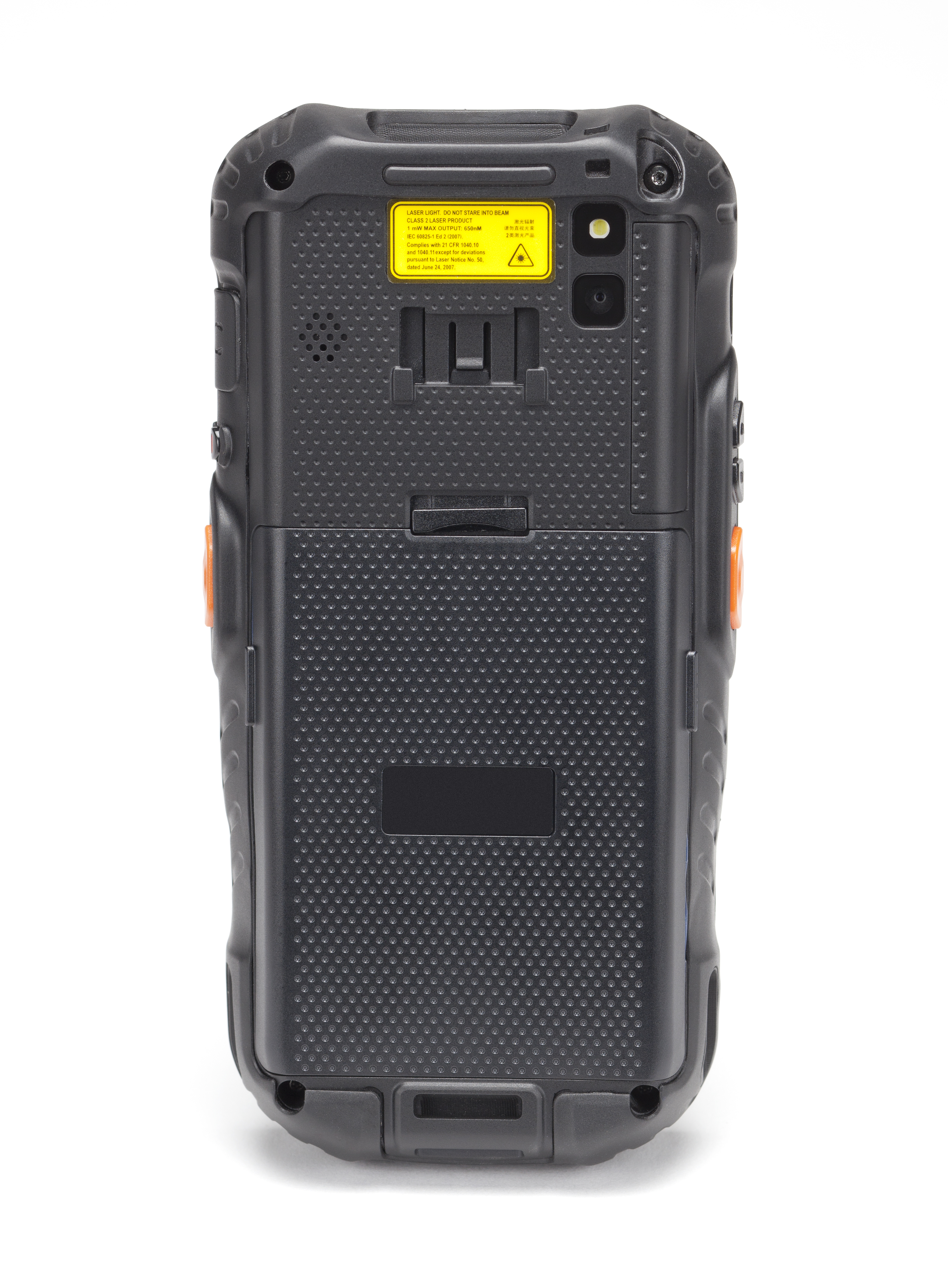

5.0 megapixel autofocus camera with LED flash



ACCESSORIES

Single-slot cradle kits (USB; Ethernet)



Four-slot cradle kits (Charging)



Syncing/charging cable



Charging adapter

Nylon holster

SAFETY/REGULATORY



Safety

CSA C22.2 No.60950-1-03; UL60950; EN60950-1; UL1604 Class I Div 2 (A,B,C,D); EN60825

EMI

FCC Part 15B



RF

FCC Part 15B and 15C; RSS-210, ICES-003



                                           Specifications Subject to Change.

Accessories

Cradle Kits

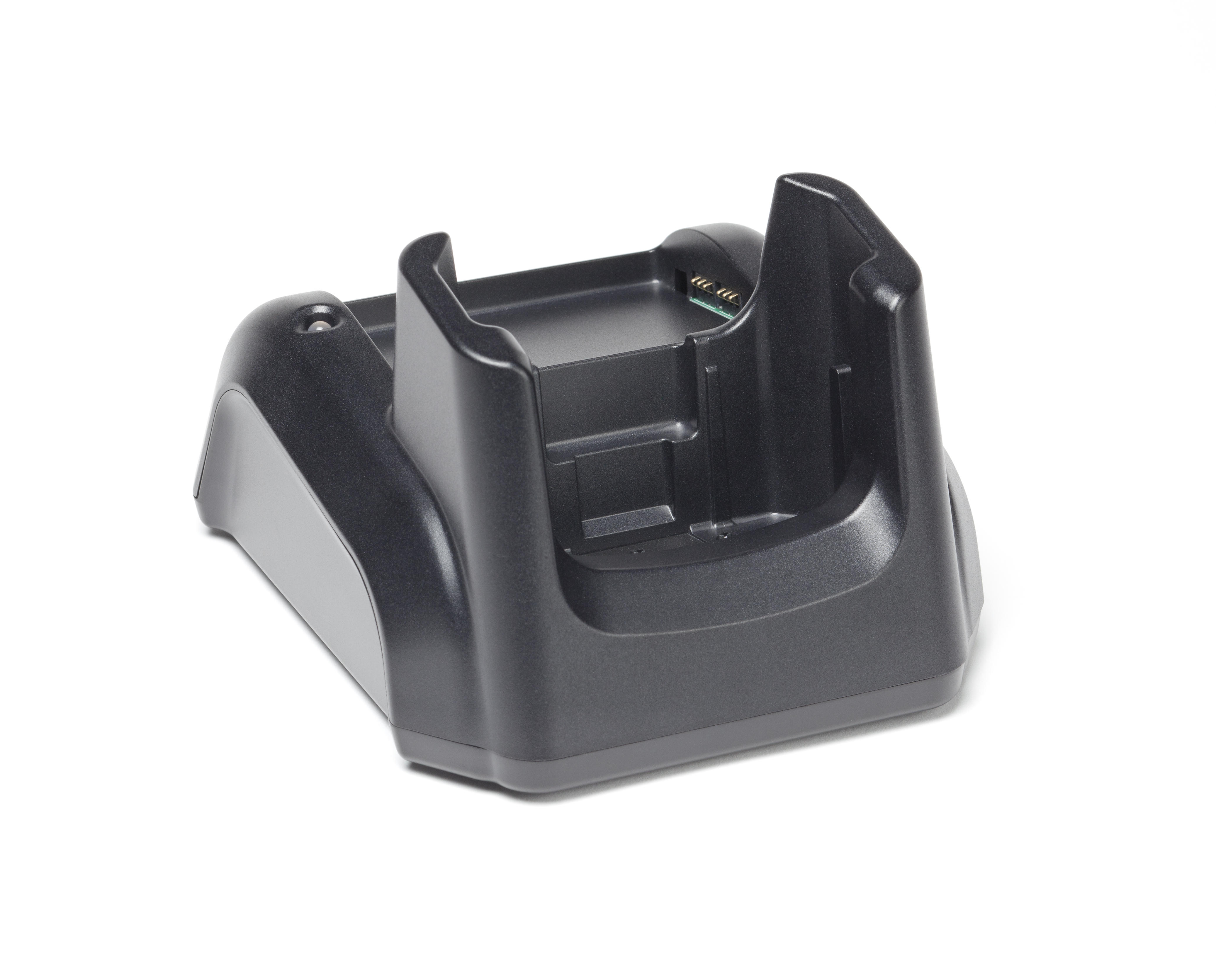

  • Single-Slot Ethernet Cradle Kit

    Single-Slot Ethernet Cradle Kit

    (CKT-P1-005E)
    Includes cradle and AC adapter.
  • Single-Slot USB Cradle Kit

    Single-Slot USB Cradle Kit

    (CKT-P1-005U)
    Includes cradle and AC adapter.
  • Four-Slot Cradle Kit

    Four-Slot Cradle Kit

    (CKT-P4-005C)
    Includes cradle and AC adapter.

Batteries & Chargers

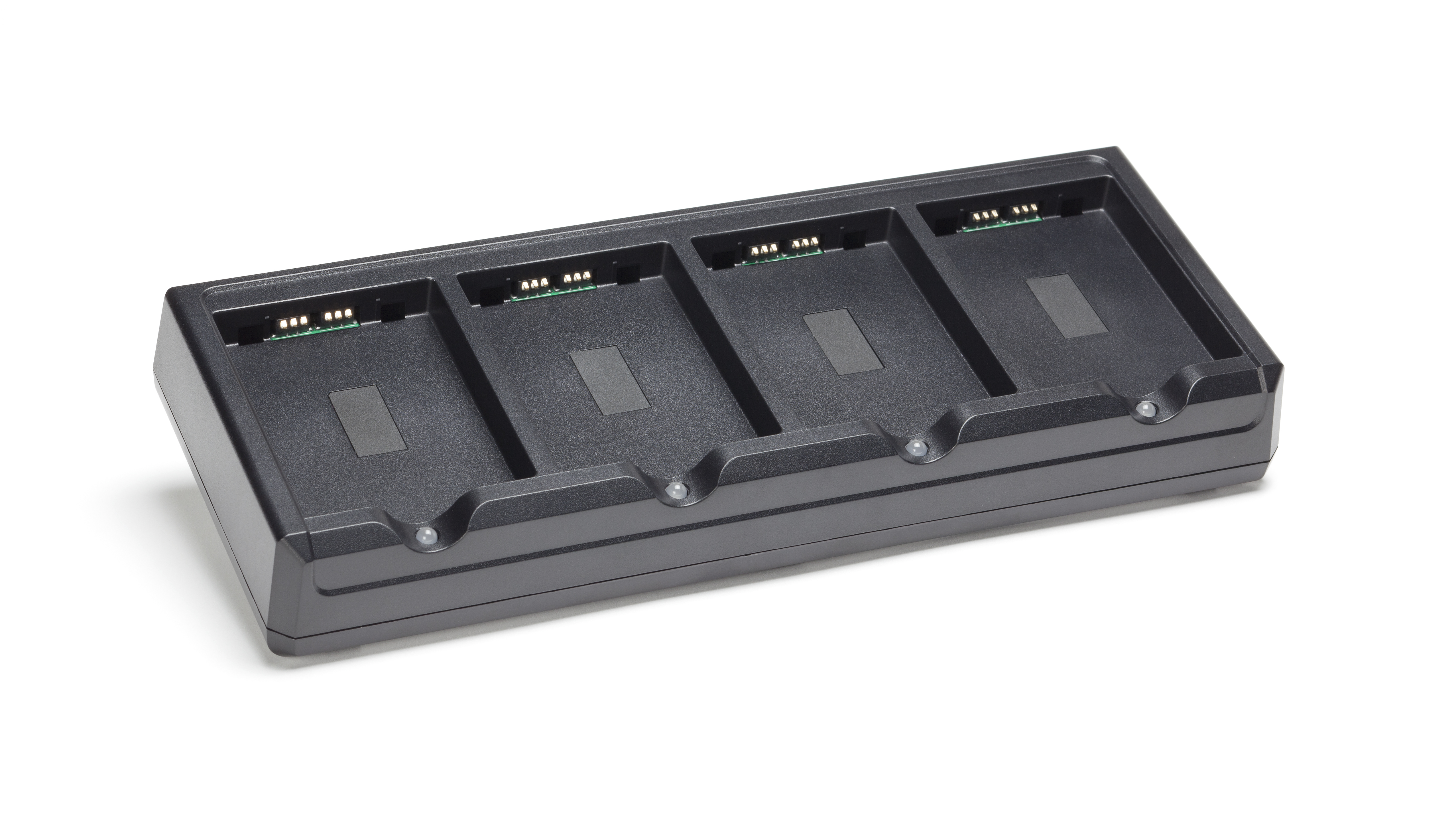

  • Four-Bay Battery Charging Kit for XM5

    Four-Bay Battery Charging Kit for XM5

    (BK-P4-005)
    Includes Power Supply and AC Adapter (US, UK, EU, AU)

Expanded Performance

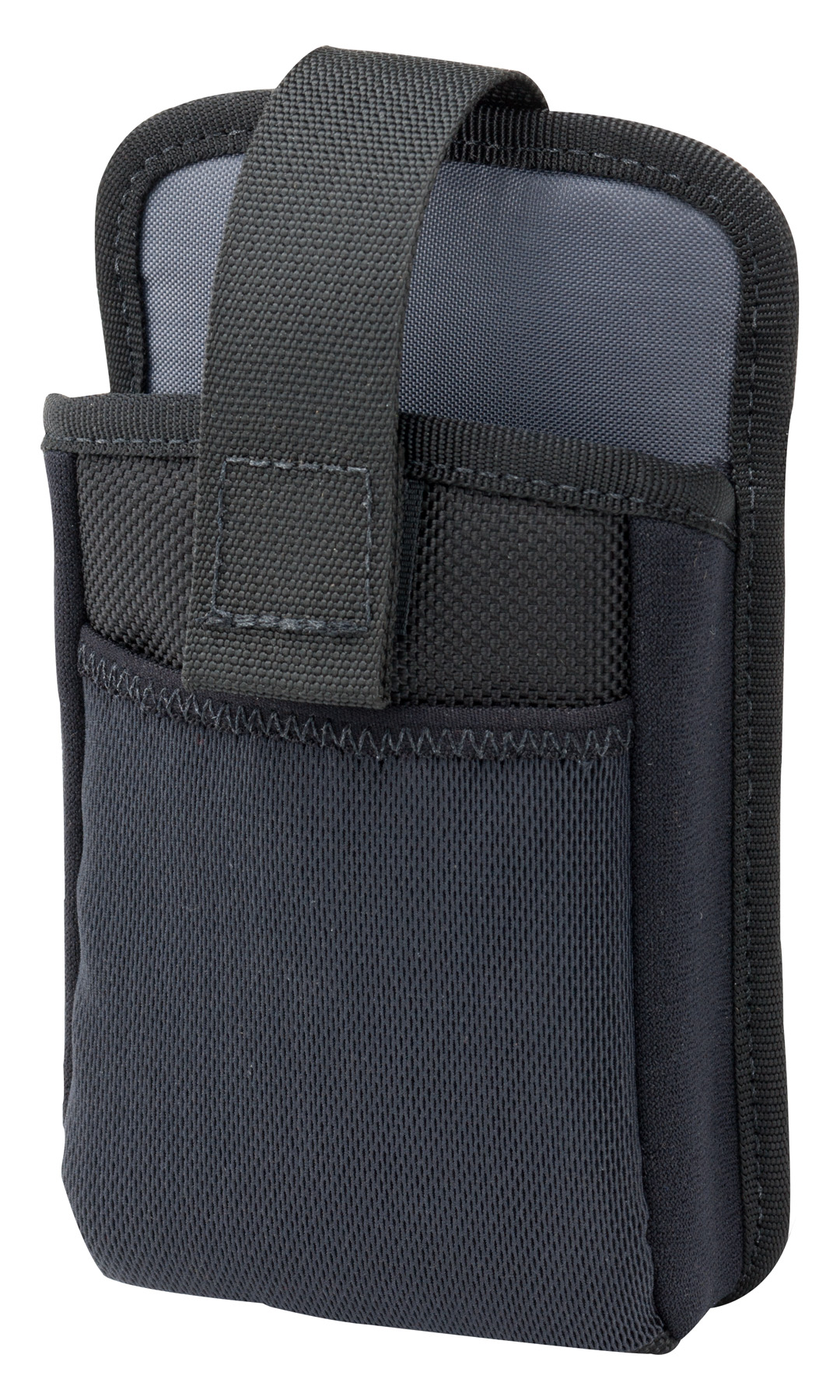

  • Nylon Holster for XM5

    Nylon Holster for XM5

    (HL-P-006F)
    Includes Rugged Clip, Velcro Strap and Spare Battery Pocket.
Resources

Product files and documents


XM5 Android User Guide PDF file, 4.27 MB
XM5 WEH6 User Guide PDF file, 7.25 MB
XM5 Datasheet PDF file, 300.02 KB
XM5 Arabic Datasheet PDF file, 723.98 KB
XM5 French Datasheet PDF file, 1.21 MB
XM5 German Datasheet PDF file, 632.36 KB
XM5 Italian Datasheet PDF file, 278.25 KB
XM5 Spanish Datasheet PDF file, 1.21 MB
XM5 Russian Datasheet PDF file, 1.2 MB
XM5 Specifications PDF file, 153.15 KB
