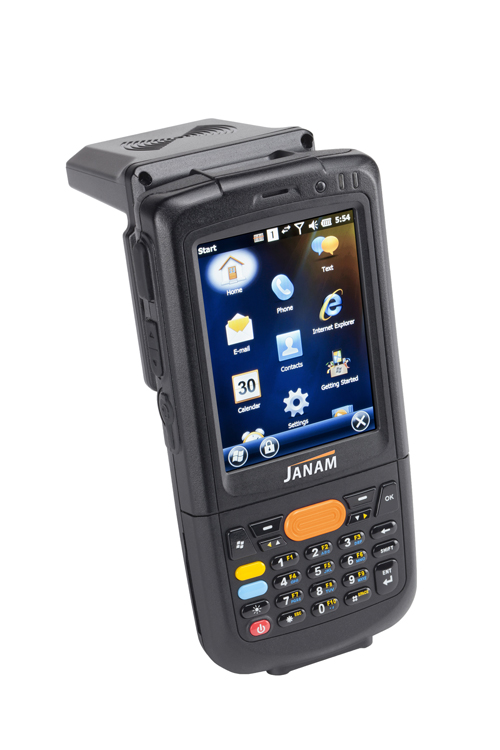

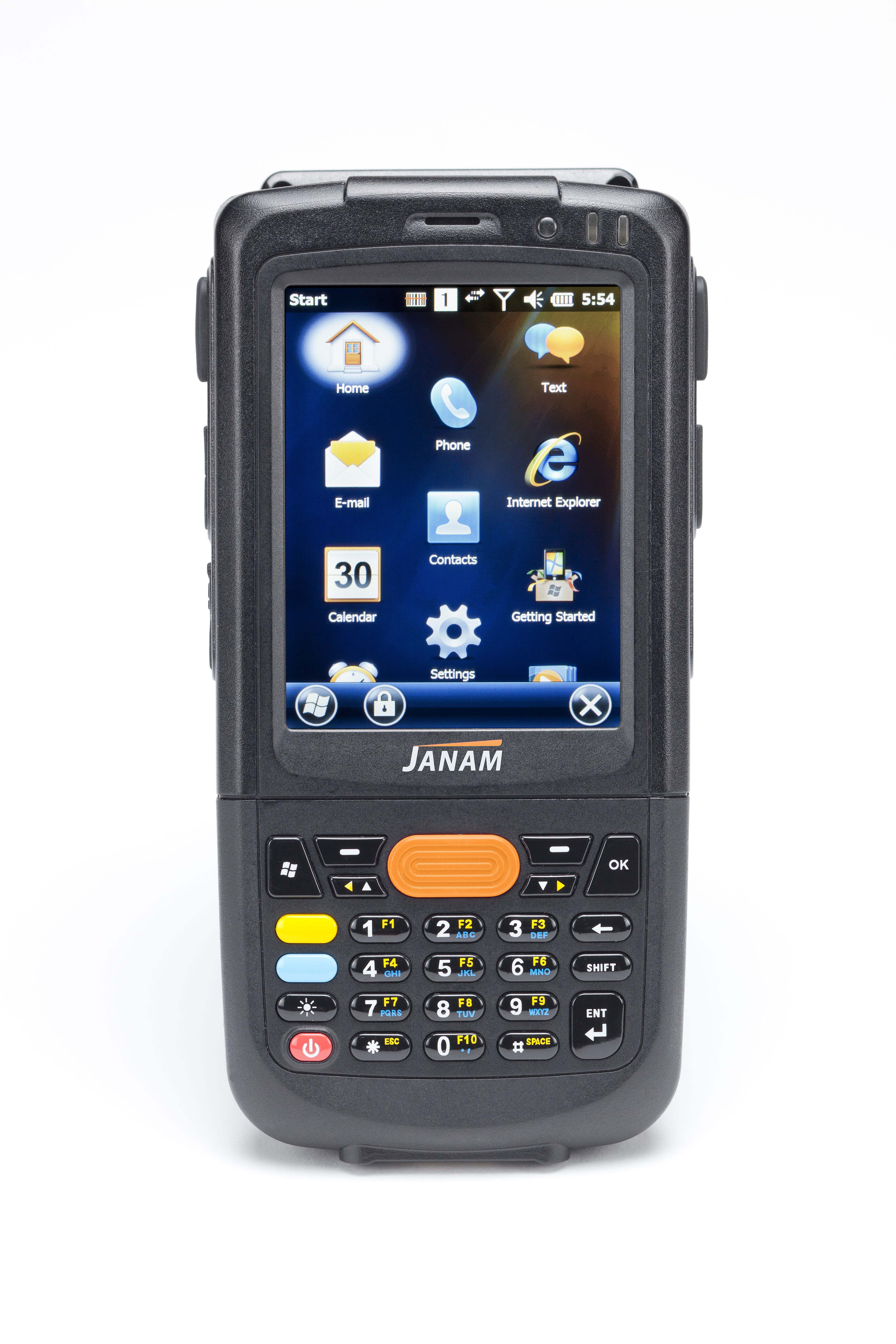

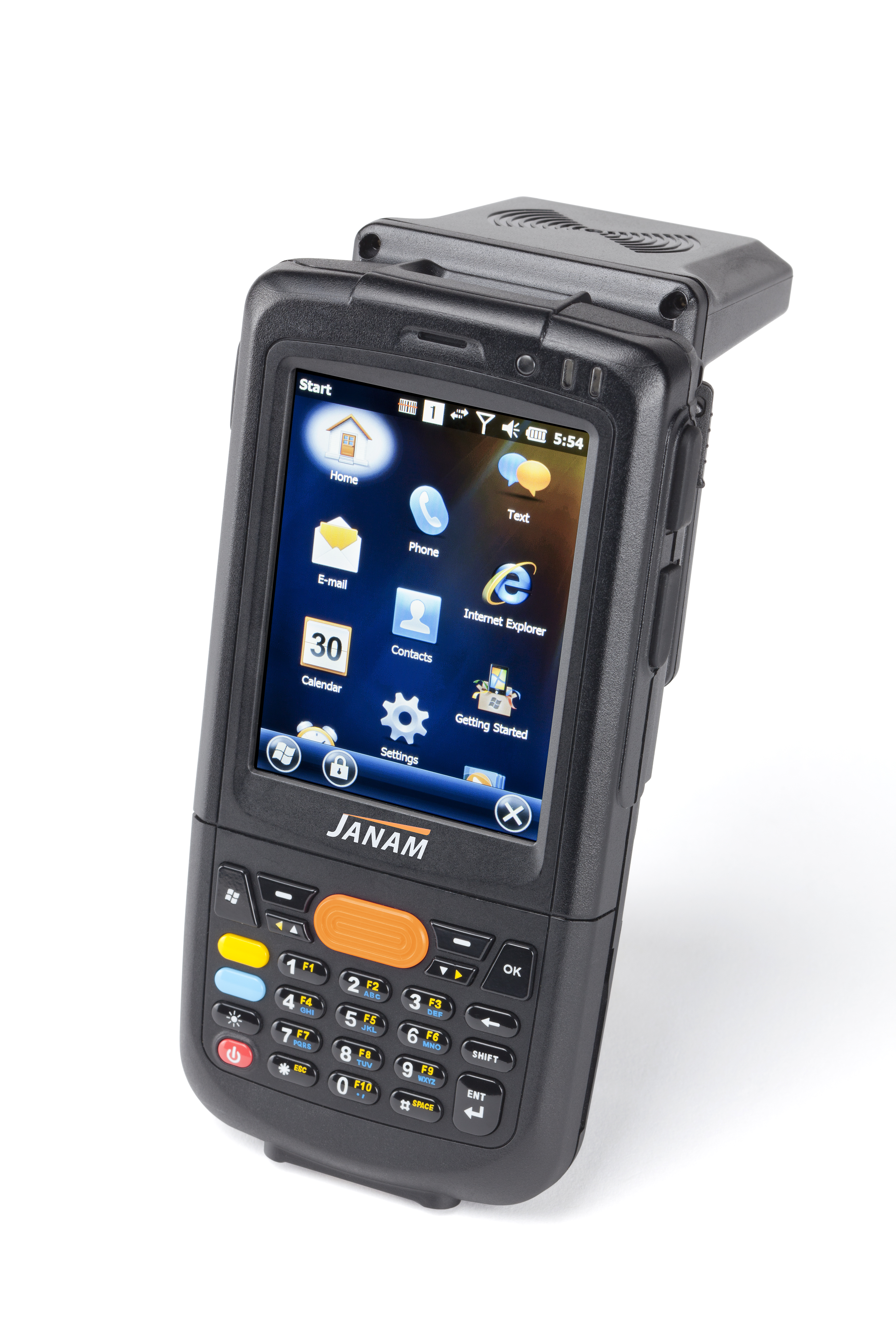

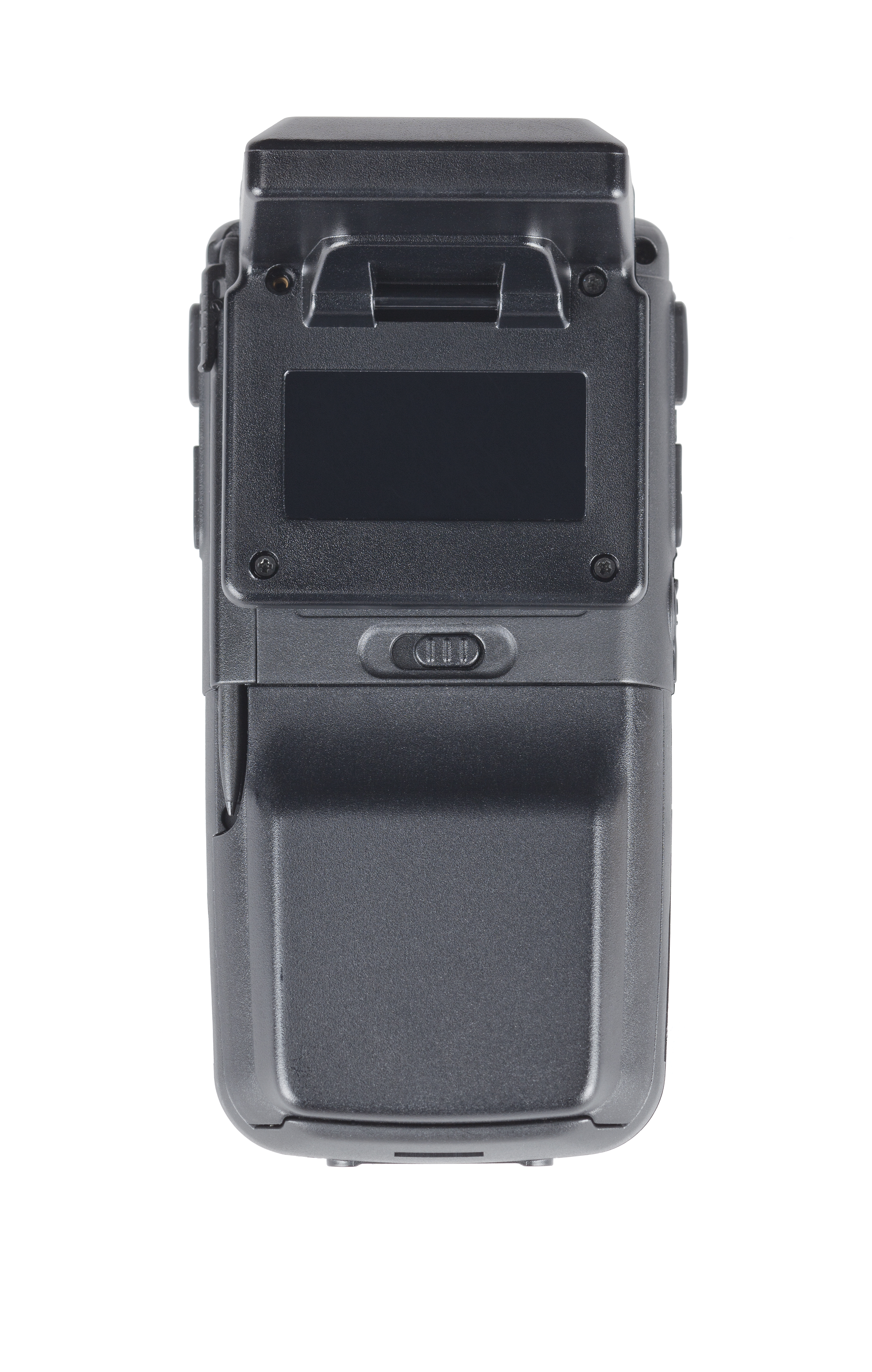

XM2-RFID for Rail

RFID TAG READER FOR THE RAILROAD INDUSTRY

Janam’s XM2-RFID for Rail is the lightest, fastest and most affordable RFID-reading solution for the railroad industry. A fully rugged, highly capable, handheld RFID reader, the XM2-RFID for Rail offers best-in-class read range and battery life and is the first fully integrated handheld computer to deliver the ability to read Automatic Equipment Identification (AEI) RFID tags to the palm of the hand.

Fully-featured to provide the power and performance required for all-day, every-day use by mobile workers in freight and rail operations, the XM2-RFID for Rail is specially-designed to read the Automatic Equipment Identification (AEI) RFID tags required on all railcars in North America and widely used globally, allowing rail and intermodal companies to track and monitor equipment effectively. T
he XM2-RFID for Rail is equipped with a user-addressable compass for integration with transportation applications, brilliant 3.2-inch color display, Zebra SE4500 2D imager for robust decoding of the hardest-to-read barcodes and support for Microsoft’s Windows Embedded Handheld 6.5 operating system.

A standard 2-year warranty provides customers with the level of service they require, at no additional cost.
Specifications

TECHNICAL



Operating System

Microsoft Windows Embedded Handheld 6.5

Processor

ARM 9 processor

Memory

128MB RAM / 128MB NAND Flash

Expansion

User-accessible microSD card slot

Power

2880mAh hot-swappable Li-ion battery

PHYSICAL



Dimensions

5.8” H x 2.9” W x 1.0” L /148mm H x 73mm W x 25.4mm L

Weight

13oz / 370g including battery

 Keypad Numeric

Display

3.2 inch QVGA with LED backlight

Touch Panel

Resistive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 122º F / -20º to 50º C

Storage Temperature

-22º to 158º F / -30º to 70º C

Humidity

5% to 90% RH (no condensation)

Drop

4ft / 1.2m drop to concrete on four sides

Water & Dust

IP64

Tumble

250 3.2' tumbles (250 drops)

Electro Static Discharge (ESD)

+/- 15kVdc air; +/- 8kVdc contact

Sterilization

75.9% to 81.4% concentration alcohol rub

INTERFACE FEATURES



Audio

Speaker and Microphone

Alerts

Vibration; LED indicators; audio beep

Communication Port

Industrial connector

LED Indicators Tri-color

Scan Triggers

Left, right, center buttons

DATA CAPTURE



Imager

Zebra SE4500 1D/2D CMOS

RFID Reads industry-standard Automatic Equipment Identification (AEI) RFID tags


WIRELESS COMMUNICATION



WLAN

802.11b/g/n

Security

WEP (40 or 128 bit); TKIP; AES; WPA2-PSK; WPA-PSK; WPA2 (EAP-TLS, EAP-PEAP)

WPAN

Bluetooth v2.1 with EDR

MOBILE APPURTENANCES



Compass

API-addressable compass for applications

ACCESSORIES

Single-slot USB/Serial cradle kit



Cradle Cup kit

                                           Specifications Subject to Change.


Accessories

Batteries & Chargers

  • Standard Battery

    Standard Battery

    (BA-PT-15)
    2880mAh 3.7v

Expanded Performance

  • Nylon Holster for XM2-RFID Series

    Nylon Holster for XM2-RFID Series

    (HL-P-007)
    Ballistic Nylon holster with belt mounted metal clip and velcro strap.
Resources

Product files and documents


XM2-RFID for Rail specifications PDF file, 147.04 KB
XM2-RFID for Rail datasheet PDF file, 558.81 KB
XM2-RFID User Guide PDF file, 3.85 MB
